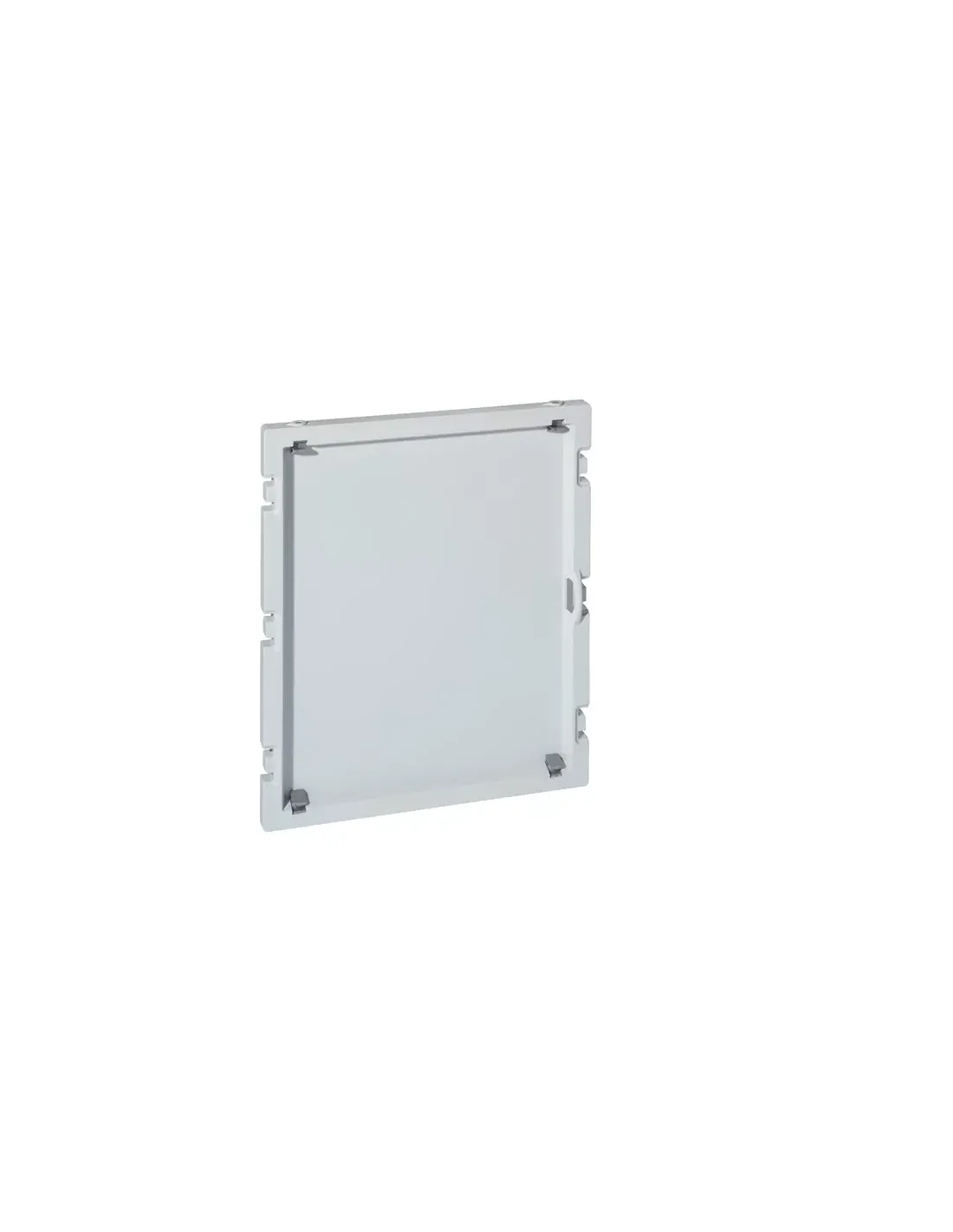

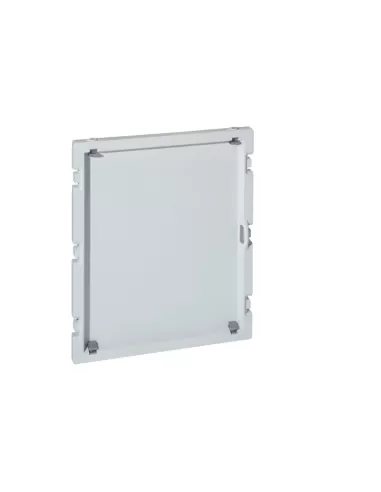

Bocchiotti b04632 inner door for fiberglass panel with 54 accessory modules

CP 03 Inner door for Pedro switchgear GRAY Cover Door type for switch cabinet Internal door Materials Color RAL7035 Color gray Color RAL Gray RAL 7035 Material Glass fiber reinforced polyester Surface Matt Surface treatment untreated Dimensions Depth of installed product 20 mm Height of installed product 450.6 mm Installed product width 375.7 mm Standards, Approvals Reference standards CE European Directive WEEE not affected Safety Degree of protection of the casing IP30 Class of insulation protection class II Degree of resistance to glowing wire according to EN 60695-2 -11 : 960°C Halogen-free yes Conditions of use Operating temperature -25…60 °C
