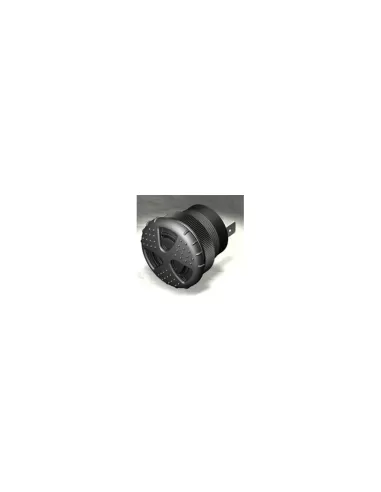

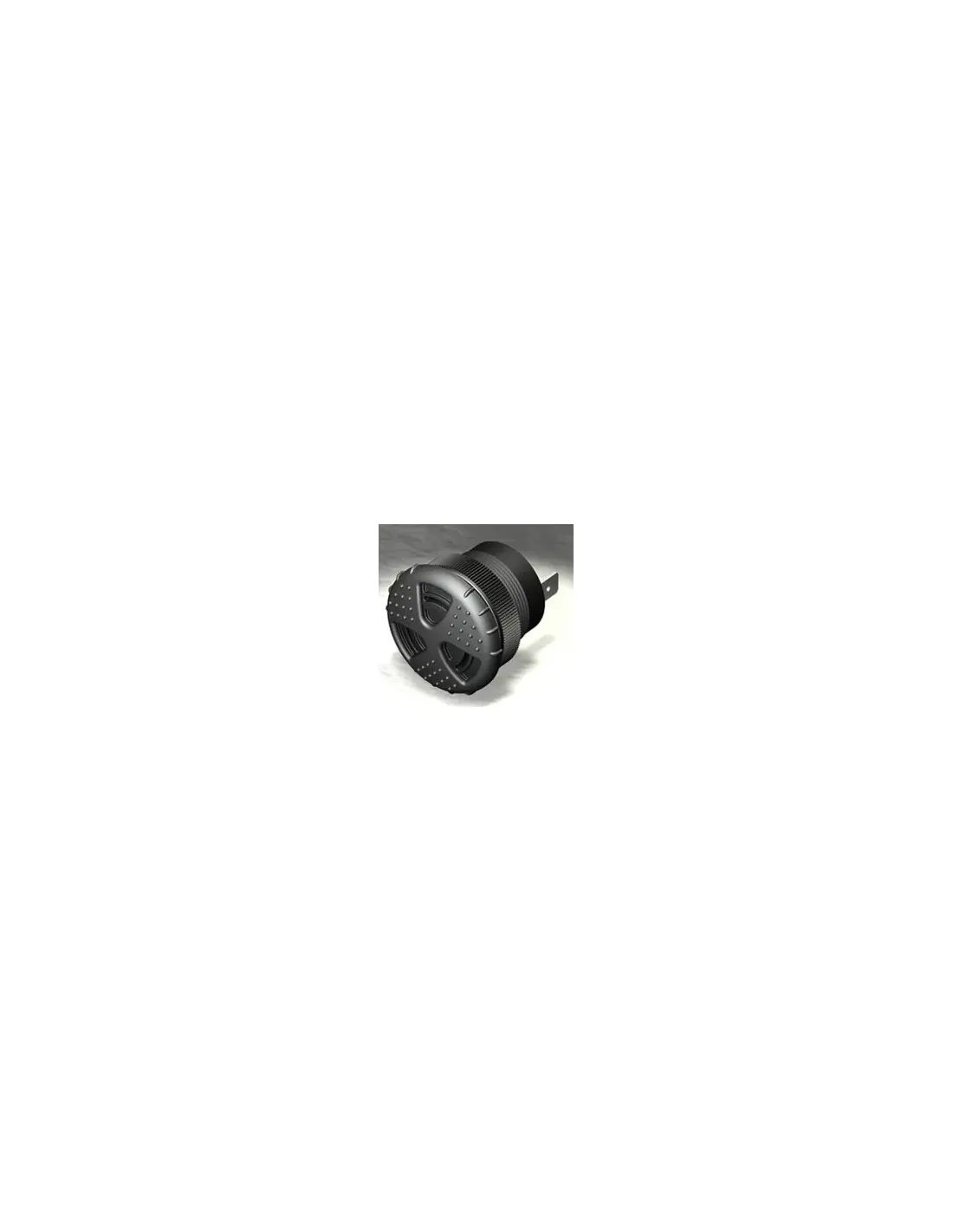

Tmc-v86-530-q floydbell turbo medium high continuous (panel ringtone)

Mounting Panel mount with volume control Operating mode Medium high continuous tone Operating voltage 5-30 Vdc Operating frequency 2900 ± 250 Hz Typical operating current 2 mA at 5 Vdc 10 mA at 30 Vdc Typical sound pressure 75 ± 5 dB (A) at 5 Vdc at 24 in. (61 cm), at 25 °C 95 ± 5 dB (A) at 30 Vdc at 24 in. (61 cm), at 25 °C Resolution Quick-Connect Blades Resolution Force Tensile Test with a maximum load of 22 lbs (10 kg) operating temperature -20 _C to 65 _C Storage temperature -40 _C to 85 _C Surge voltage 20% above maximum rated voltage for less than 5 minutes Reverse voltage protection At maximum operating voltage Materials of construction Case- _NORYL_ N-190 plastic, UL 94-VO flame retardant, black internal circuitry- Audio oscillator and piezo driver Socket- 2 part epoxy or silicone, black diaphragm- 304 stainless steel Gasket Gasket ( included) 0.125 inch thickness, 60 durometer neoprene Construction Materials ASTM B117 Certified - Withstands exposure to salt spray for 300 hours IP 68 Certified - Withstands immersion in water and exposure to dust Humidity: 95% RH at 40_C continuously for 100 hours Vibration: resists vibrations between 0 and 55 Hz on all axes Life expectancy 10 years under normal operating conditions
