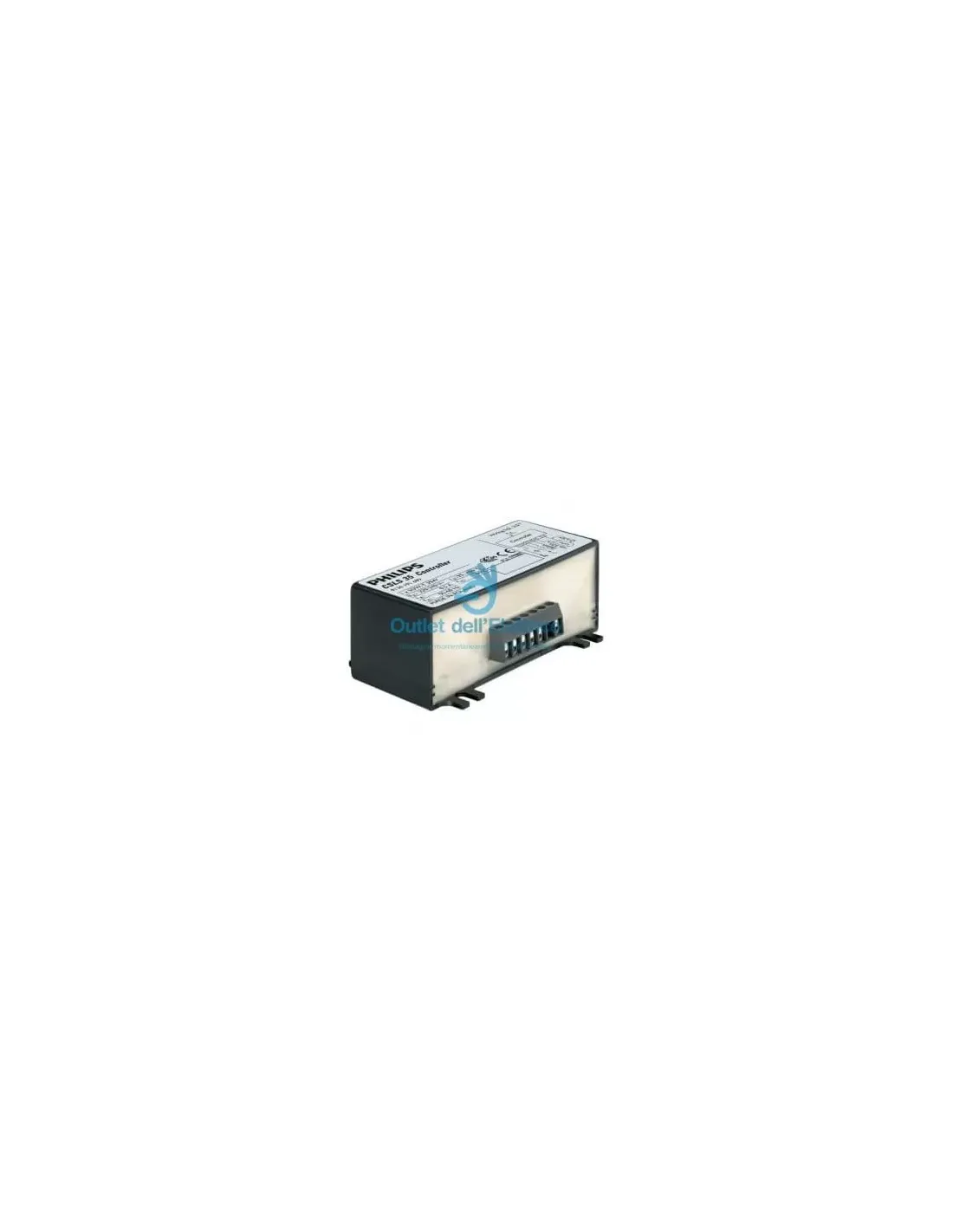

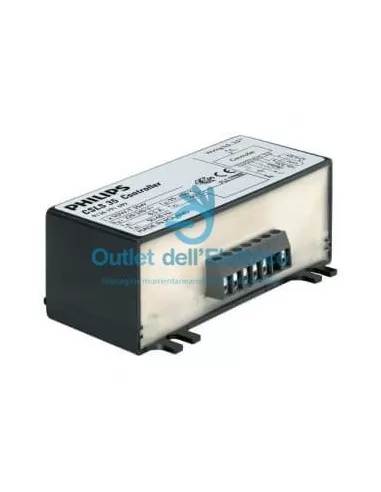

Philips Csls 35 sdw-t 220-240v 50/60hz
_1732199632.png){kind=icon}
Condizione prodotto:New
Secure Payments
Delivery times
Fedex Road Europe: 5-7 working days
Dhl Road Europe: 3-5 working days
DHL Express International: 2-3 working days
Legal guarantee of conformity
Payments Method
The CSLS 35 SDW t 220V 50-60Hz is a high-performance electronic control unit for SDW-T lamps. Thanks to reliable start-up and stable power supply, it ensures optimal performance with minimal color deviation. Installation and wiring are simple thanks to the screw terminal blocks. Suitable for a variety of applications, this product guarantees high quality and functionality.
Lamp type SDW-T
Estimated number of lamps 1 piece
Estimated power of the ballast-lamp 35
Mains voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Response voltage 210 V
Safety voltage (min-max) -10% /+10%
Running voltage -4% /+9%
Peak output voltage 4500 (max) V
Mechanism power losses 2.5 W
Output cable power/ground 50 pF
Connector type Screw
Max. length of display/lamp cable 0.50m
Neon length 6 mm
Reactor contact wire diameter 0.50-2.50 mm²
Reactor shell temperature 90 C
Max reactor envelope temperature 90 (max) °C
Ambient temperature 65 (max) °C
Storage temperature -25 (min), 80 (max) °C
Length A1 98 mm
Fixing hole distance A2 70 mm
Width B1 58.5 mm
Fixing hole distance B2 46 mm
Height C1 39.5 mm
Fixing hole diameter D1 4.5 mm
Product Description:
• Electronic control unit ensures reliable start-up and stabilizes lamp power for optimal performance (minimal color deviation)
• Easy installation and wiring
