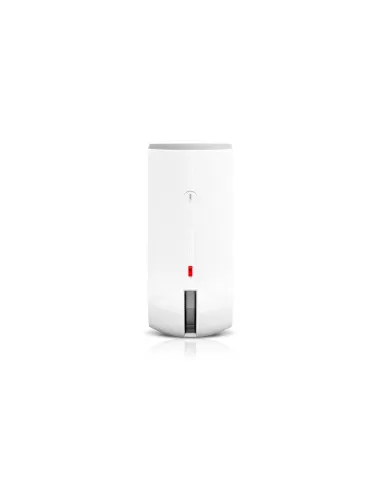

Satel aocd-250 wireless double tec pir mw detector

AOCD-250 Dual technology outdoor wireless curtain detector AOCD-250 is a curtain motion detector intended for perimeter protection It has been designed to work as an integral part of our ABAX bi-directional wireless system The detectors guarantee excellent perimeter protection for any building but can also be used for internal protection in facilities, where harsh or special environmental conditions prevail (e.g. sheds, under canopies) To detect motion, the AOCD-250 incorporates PIR and MW technologies The combined dual detection technology with the auto-tuning algorithm to environmental conditions, it provides high immunity to false alarms. Therefore, they offer stable operation in adverse weather conditions, such as rain, snow, fog, intense sun and strong gusts of wind. curtain offer correct operation in a wide temperature range: from -40°C to 55°C. Variations in environmental temperature are automatically compensated. The AOCD-250 curtain detector has a detection angle of 10 degrees and an action range of 14 m At that distance, the emitted beam has a width of approximately 1 m. A very convenient feature is the remote configuration of the sensitivity of the detector through the DLOADX program. Furthermore, thanks to its efficient energy management, the detector can work up to 3 years without having to replace the battery The detector housing is made of a combination of polycarbonate and thermoplastic elastomer with two-component injection technology The degree of protection achieved is IP54, which makes the detector suitable for outdoor applications AOCD-250 is characterized by high mechanical resistance and resistance to UV rays The detector can be installed directly on a flat surface or using a special bracket that allows its installation at an angle of 90°. When installing the detector inside the building, it is also possible to use the adjustable joint BRACKET A and BRACKET B The AOCD-250 detector complies with EN 50131Grade 2
