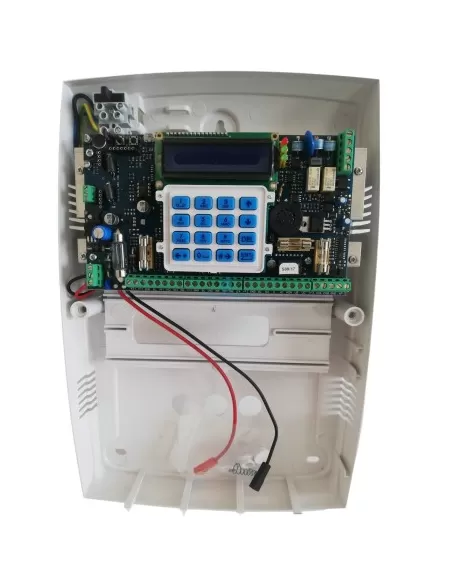

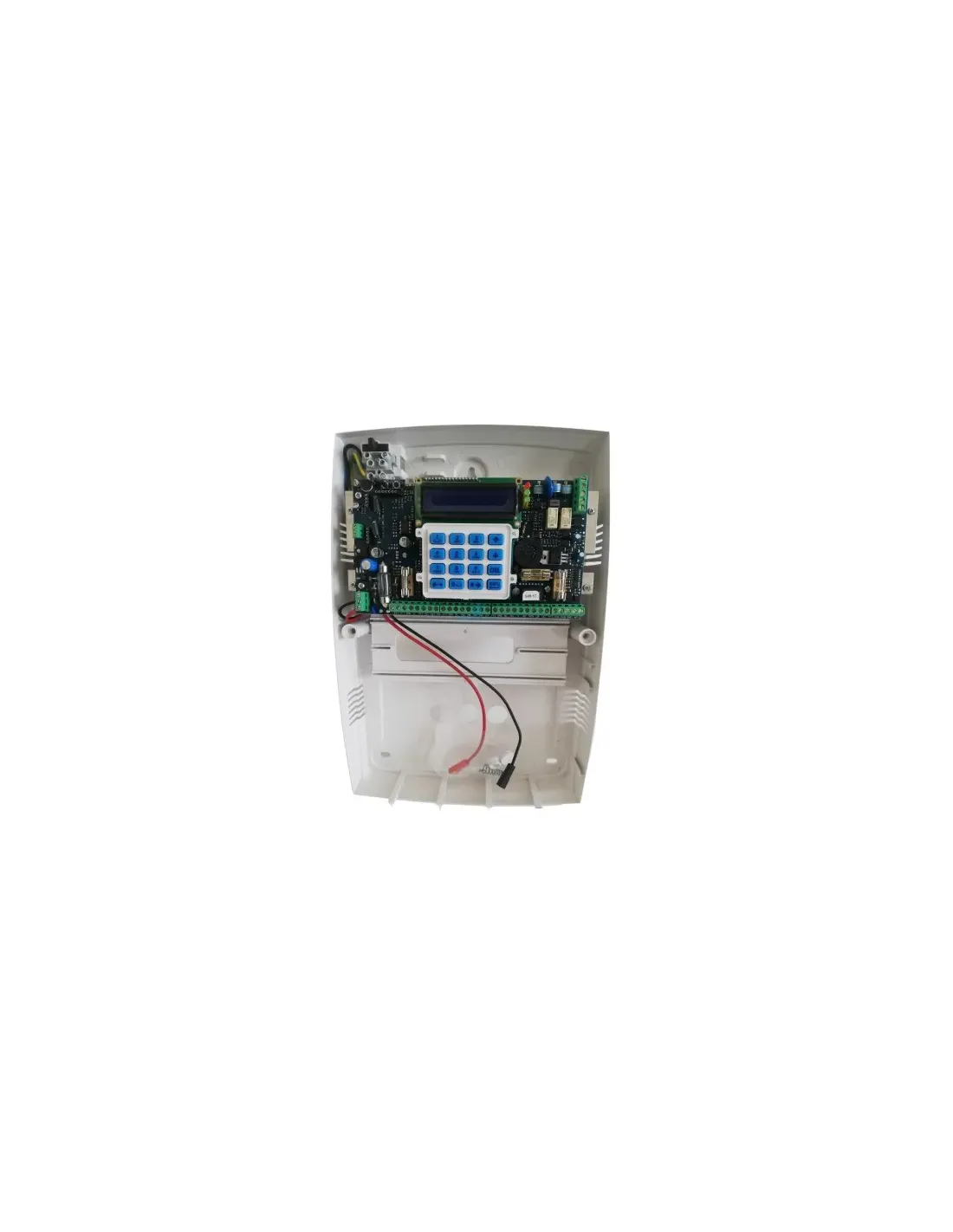

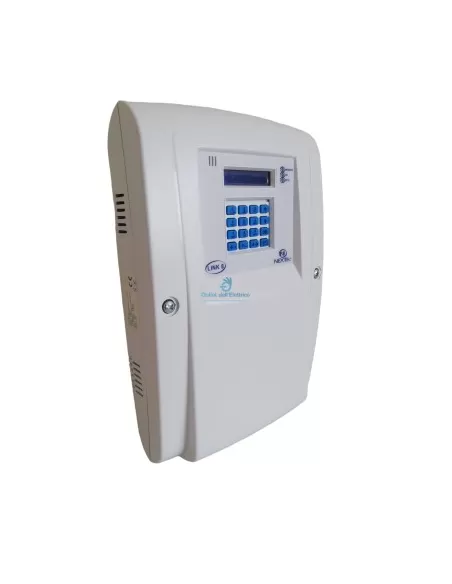

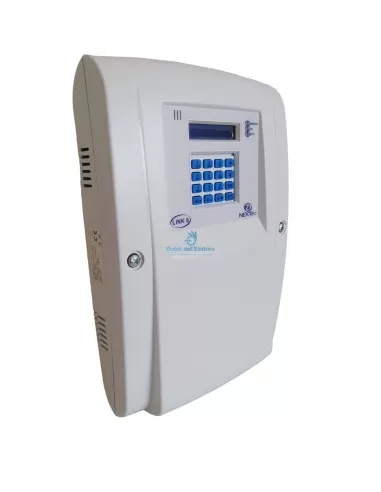

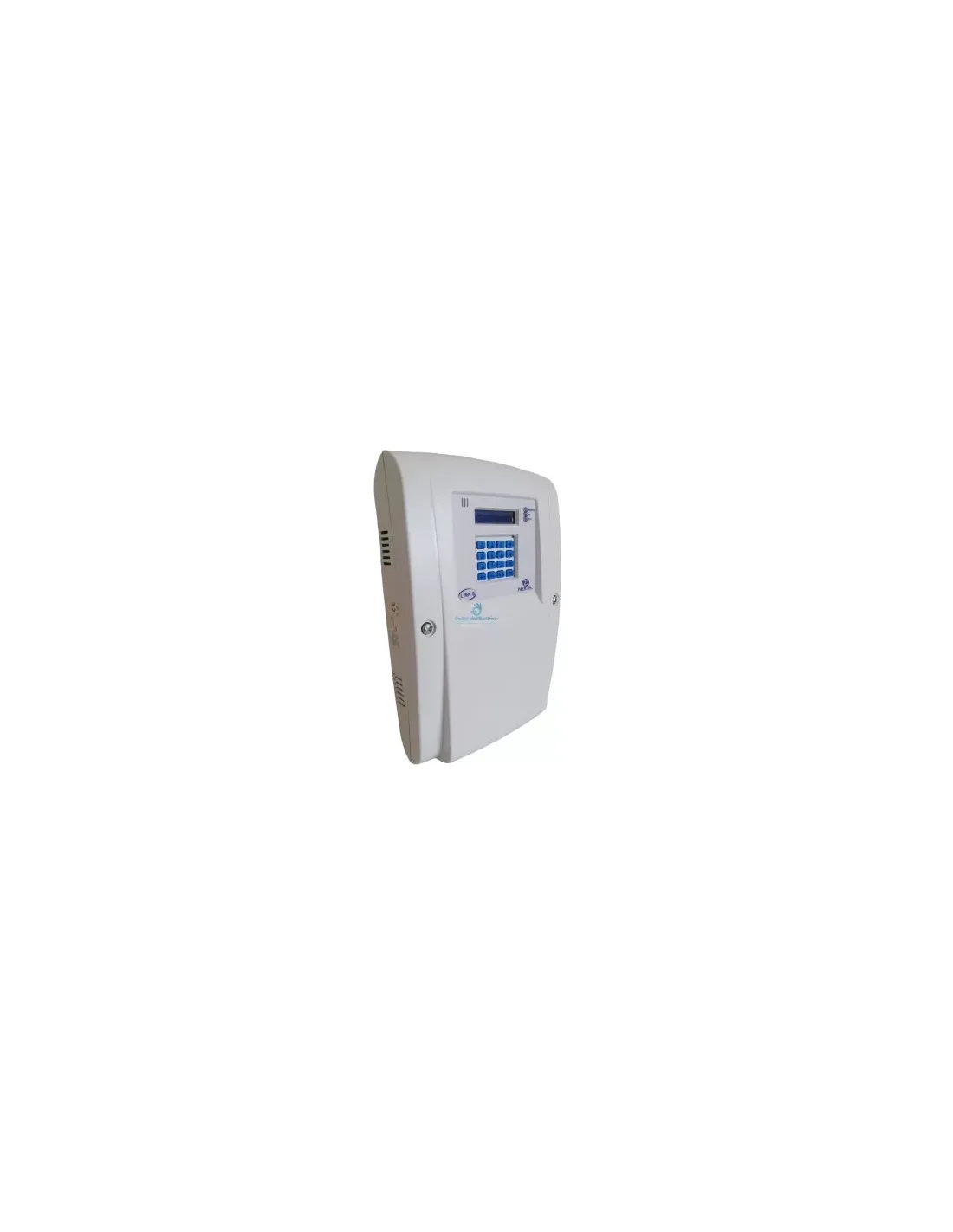

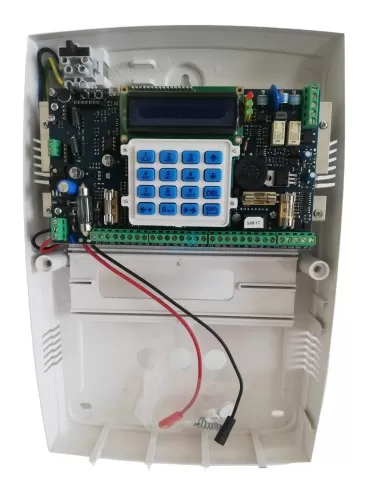

Nexttec central pstn link 8 p p80

Wired alarm control unit managed by transponder control units
• 8 NC / Double balanced wired inputs, delayable
and excludable.
• Multi-user function to manage up to 3 systems
independent.
• Expandable up to 24 wired inputs via expansions
NES500 (8 inputs)
• 3 partition areas + Gong
• 1 24h entry expandable up to 4
• 1 emergency key entry
• 8 programmable outputs such as alarm, remote controls, fault, block
• 32 key codes/ cod.numerici or proximity keys with
possibility of appointment
• 1 LCD keyboard, 1 Touchscreen keyboard and up to 7 keyboards
LED or key/transponder readers
• Voice message transmission
• Local or remote programming via software
E-Link owner
• Historical file 500 events in memory
• Activation/Deactivation of the system via:
transponder control organs
• Voice synthesis transmission: 15 msg x 120 sec
• 16 telephone numbers + 1 test number,
• Supply voltage: 13.8 Vdc
• Minimum operating voltage: 10.5 Vdc
• Absorption during telephone cycle at 13.8 Vdc: 400 mA
• Modular power supply: 1 A
• Battery housing: 12 Vdc 7 Ah
• Dimensions: 230 x 330 x 70 mm
• ABS cabinet P70
