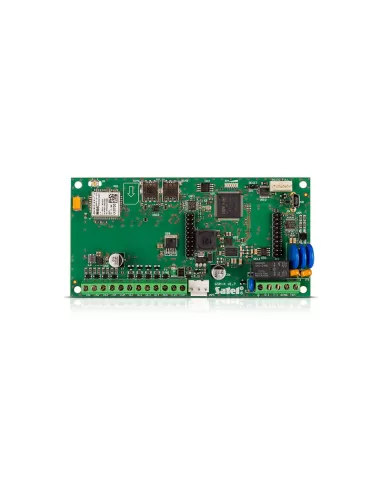

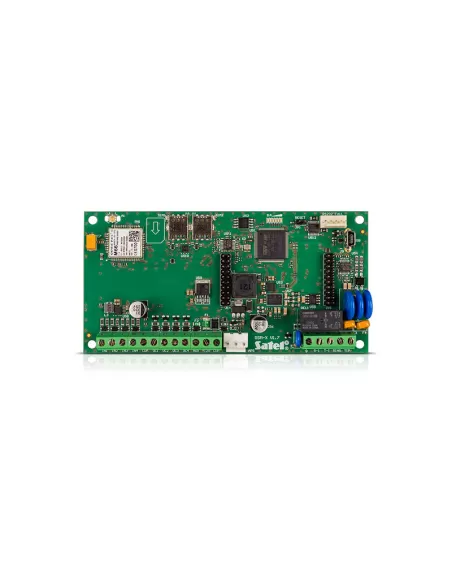

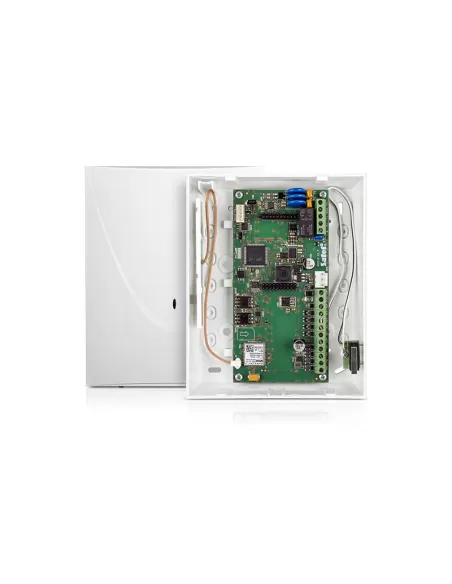

Satel gsm-x universal communication module

GSM-X Multifunctional universal GSM//2G telephone dialer GSM-X offers extensive communication features with support for multiple communication channels The device can be used for monitoring functions for alarm systems It can, therefore, interface with an alarm system via a dialer or through appropriately configured outputs An important feature offered by the module is the possibility of expanding the functionality offered with the addition of the Ethernet GSM-X-ETH module, which allows the implementation of monitoring functions on two independent channels (Ethernet and GPRS) Since it is possible to constantly monitor the status of the connections by the monitoring station and the transmission paths are equal, the specifications of the so-called Dual Path Reporting are respected in compliance with the stringent limits of the EN50136 cat DP4 standard GSM-X offers a notification service for up to 8 users in various ways: using voice messages, SMS, PUSH or via the CLIP service As regards the INTEGRA and INTEGRA Plus control panels, an additional connection via RS-232 is available With the help of this connection, GSM-X will allow the transmission of events to the surveillance, sending notifications (the content of which, for INTEGRA Plus, is derived from the event memory) and will allow remote connection with the DLOADX and GUARDX programs The module has a function of automatic switching of communication to the GSM channel in case of failure of the analogue telephone line GSM-X can also act as a GSM gateway for switchboards (PBX) The device has 4 programmable outputs that can be controlled remotely using SMS, CLIP, DTMF, the GX CONTROL mobile application or the GX Soft configuration software, which allows using GSM-X for remote control of an alarm system or other connected devices GSM-X is programmed and configured from a PC using the GX Soft software The computer can connect to the module locally, by connecting to the mini-USB port of the module, or remotely, by connecting to the device via GPRS or Ethernet * Remote updating of the device firmware is possible thanks to the compatibility of GSM-X with the UpServ program The built-in GSM phone has two SIM card slots If problems with the network coverage of the operator of your home network occur, you can use the GSM-X to remotely control the device. first SIM, the module will automatically switch to the other to maintain communication continuity
