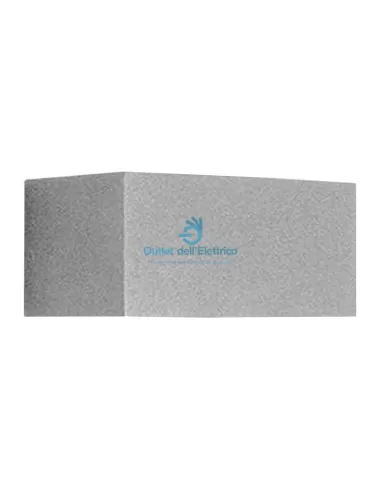

Performance in lighting 303548 Quasar 20 led-20w 3k bi gr94
Performance In Lighting Spa
241.56 €
-60%
96.62 €
Tax included
Last items in stock
_1732199632.png){kind=icon}
Order by
and your product will be shipped
In Stock: 2/PZ
Main features
Color temperature - 3000...3000 K
Length - 100 mm
Luminous flux calculated according to IEC 62722-2-1 - 827 lm
Luminous output of lamps - 36 lm/W
Degree of protection (IP) - IP65
Condizione prodotto:New
Secure Payments
Delivery times
Fedex Road Europe: 5-7 working days
Dhl Road Europe: 3-5 working days
DHL Express International: 2-3 working days
Legal guarantee of conformity
Payments Method
Series of wall-mounted luminaires, for indoor and outdoor use, consisting of: Body in painted die-cast aluminum. Glass diffuser painted internally to create a uniform and diffused light. Flat glass diffuser worked externally and silk-screened internally for the Tech versions. Reflector in pure satin-finish aluminum (Al 99.98). Silicone gasket. Electronic ballast LED Array 3000 K as standard. Aluminum heat dissipation system.
Color temperature
3000...3000 K
Length
100 mm
Luminous flux calculated according to IEC 62722-2-1
827 lm
Luminous output of lamps
36 lm/W
Degree of protection (IP)
IP65
Maximum system performance
23 W
Suitable for wall mounting
Yes
Suitable for pendant mounting
No
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for continuous row configuration
No
Suitable for workplaces according to EN 12464-1
No
Lamp
Non-replaceable LED
With lamp
Yes
Suitable for number of lamps
1
Lamp holder
Others
Material (of the body)
Aluminum
Surface treatment (body)
Powder coating
Body color
Grey
Diffuser material
Opal glass
Type of optics
Nobody
Voltage type
B.C
Rated voltage
220...240 V
Diet
Current-controlled LED driver
Power supply included
Yes
Interchangeable power supply
Yes
Dimmable 0-10V
No
Dimmable 1-10V
No
DALI-2 dimming
No
DALI dimmable
No
DMX Dimmable
No
DSI Dimmable
No
Dimmable via potentiometer (integrated in the device)
No
GPRS Dimmable
No
Dimmable LineSwitch
No
Dimmable with manufacturer-specific system
No
Dimmable via mains voltage modulation
No
Dimmable via trailing edge phase cut
No
Dimmable via leading edge phase cut
No
Programmable dimmable
No
RF Dimmable
No
Dimmable Sine Wave Reduction
No
Touch and Dim Dimmable
No
Zigbee Dimmable
No
Dimmable with push-button
No
Dimming based on the operating device
No
Not dimmable
Yes
Light distribution
Symmetrical
Beam angle of the light
Diffuse beam
Color consistency (MacAdam ellipse step)
SDCM3
Light emission
Direct / indirect
Energy efficiency class of the integrated light source
A++, A+, A (LED)
Service life L80/B10 at 25°C
50,000 hours
Lumen maintenance at median useful life of 35,000 hours at 25°C ambient (tq)
94.5%
Lumen maintenance, average operating life of 50,000 hours at 25°C
92.2%
Lumen maintenance at median useful life of 75,000 hours at 25°C ambient (tq)
88.5%
Max. number of devices per 16A type B circuit breaker
24
Max. number of devices per 16A type C circuit breaker
40
Impact resistance
IK06
Protection class
THE
D (for installation in industrial plants with fire hazard due to dust or fibres EN 60598-2-24)
No
Rated ambient temperature according to IEC62722-2-1
-20...25 °C
Suitable for emergency lighting
No
Integrated emergency power supply
No
With motion detector
No
With brightness sensor
No
New
60
8018367615722
303548
