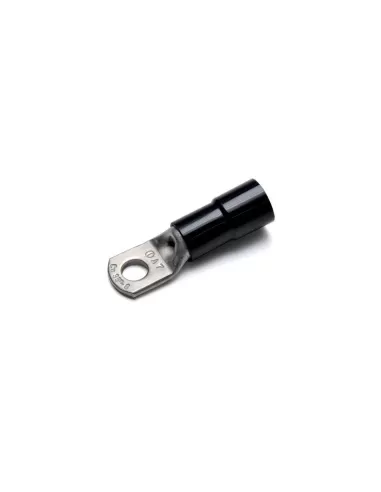

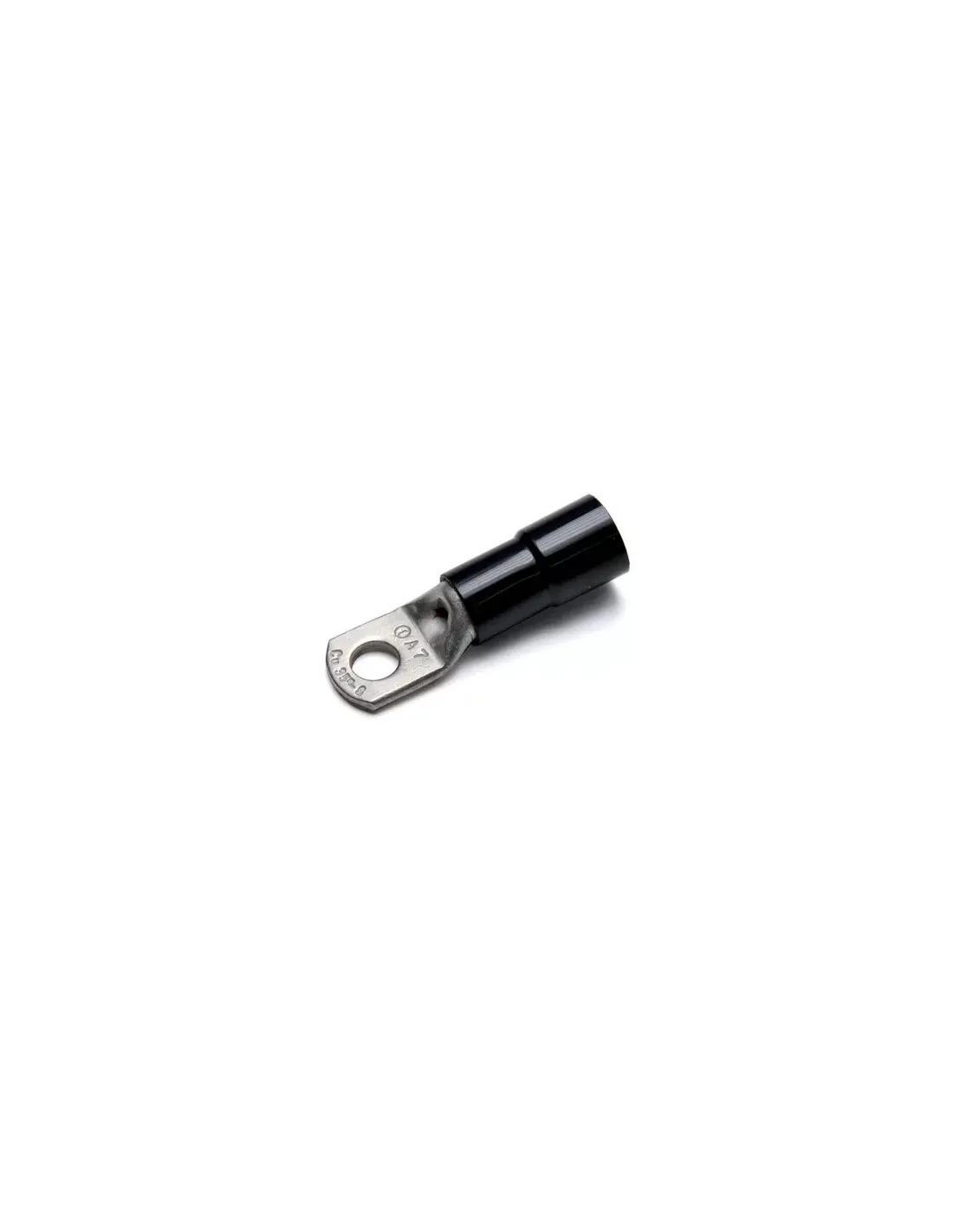

Cembre ane2-m12 insulated cable lugs, 10 mmq section, flex, 12mm screw hole

The ANE-M series cable lugs are designed for wiring power panels, where flexible cables are used. They are made from electrolytic copper tube with a cross-section that guarantees both a good electrical connection and adequate mechanical resistance to traction; they are annealed and protected on the surface by electrolytic tin plating. The PA 6 6 insulating coating simplifies installation and cable insulation restoration operations; furthermore, it is internally shaped in a funnel shape to ensure easy and complete insertion of the conductor into the cable lug collar. The ANE 2, ANE 3, ANE 5 type cable lugs can also be used on rigid cables if compressed with the radial containment dies of the MN RF-C series. They are made from electrolytic copper tube Cu-OF CW008A according to UNI EN 13600.
