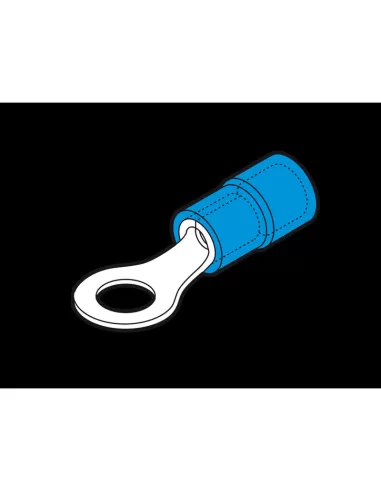

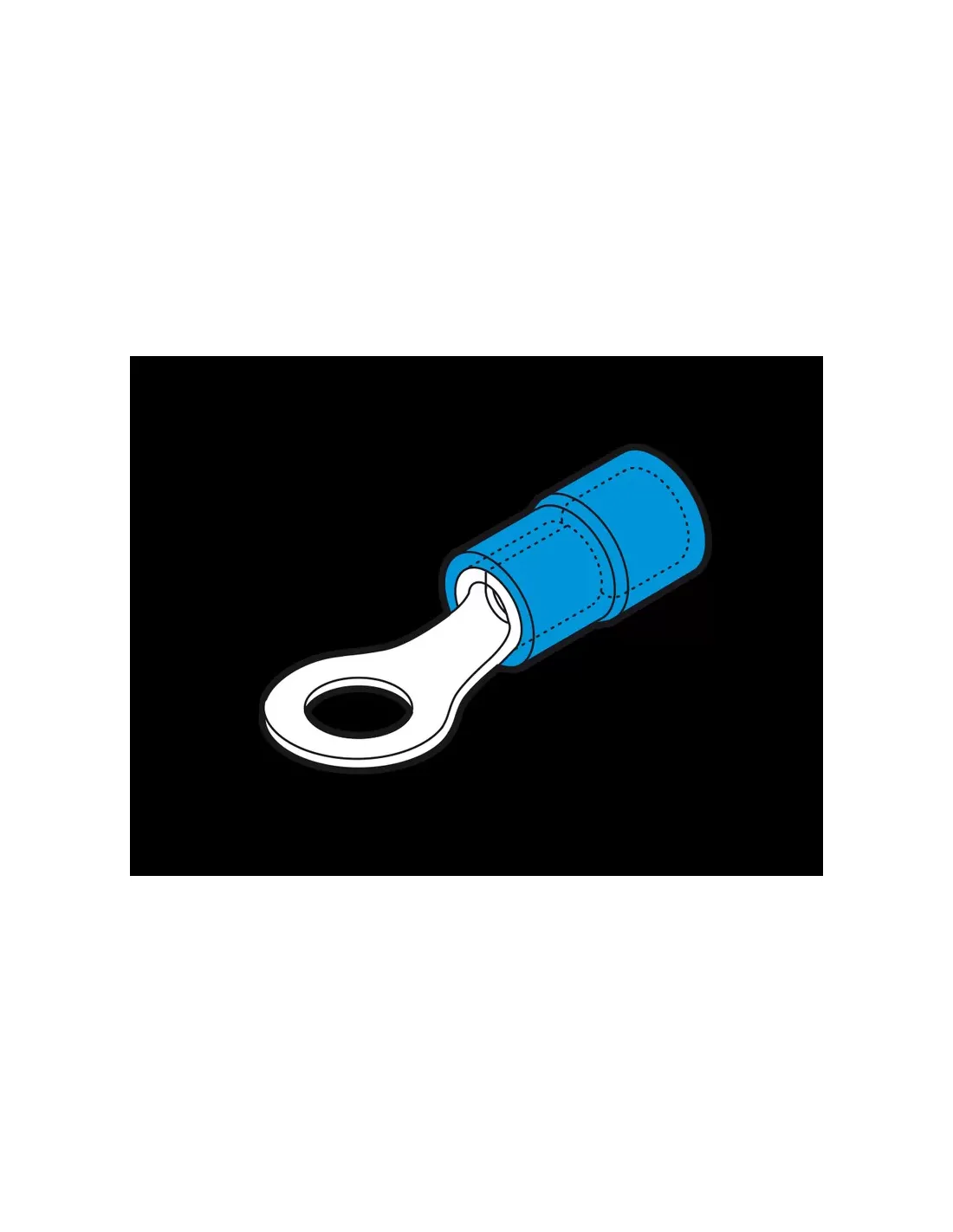

Cembre bf-m3,5 blue eyelet cable lug 3.5mm screw

Article Title: Cembre BF-M3.5 Blue Eyelet Cable Lug Screw 3.5mm

Description:

Increase your efficiency and safety with Cembre BF-M3.5 cable lugs. These blue ring lugs are designed to offer reliable, long-lasting performance in a wide range of electrical applications.

Made from Cu-ETP CWOO4A electrolytic copper compliant with the UNI EN 13599 standard, these terminals feature a robust construction and a surface protection of electrolytic tin plating with a minimum thickness of 3µm. This ensures optimal corrosion resistance and excellent electrical conductivity.

PVC insulating sleeves accompany the cable lugs, offering a series of key benefits for safety and durability. With a dielectric strength of 35 kV/mm and a specific volume resistance of 1015 O/cm, the insulating sleeves ensure reliable protection against short circuits and other potential hazards.

The main features of insulating blouses include:

• Maximum operating temperature: 80°C, allowing reliable operation even under challenging thermal conditions.
• Flammability (UL-94): Class V0, ensuring superior fire resistance and greater safety.
• Density: 1.4 g/cm3, offering structural strength and reliable protection against physical damage.
• Water absorption (%): 0.1÷0.6, maintaining performance even in humid or humid environments.
• Breaking strength (N/mm2): 45÷50, ensuring optimal durability and resistance to mechanical stress.

These connectors can be safely stored even in extreme temperatures, with a minimum storage temperature of no lower than -40°C. This ensures they are ready for use in any environmental condition.

Choose Cembre BF-M3.5 cable lugs for a reliable and safe solution for your electrical connection needs.
