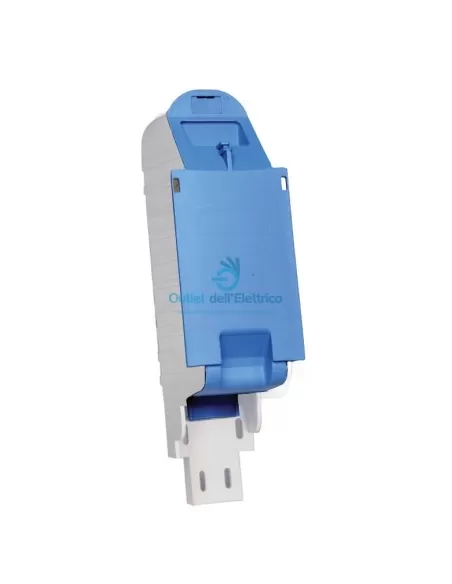

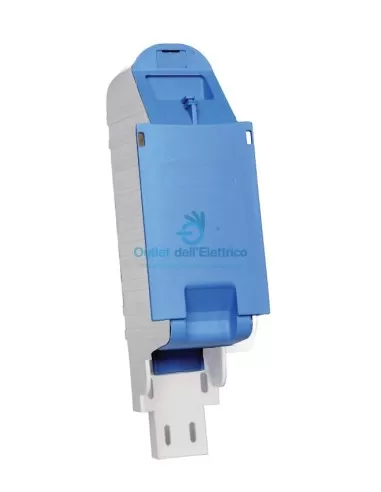

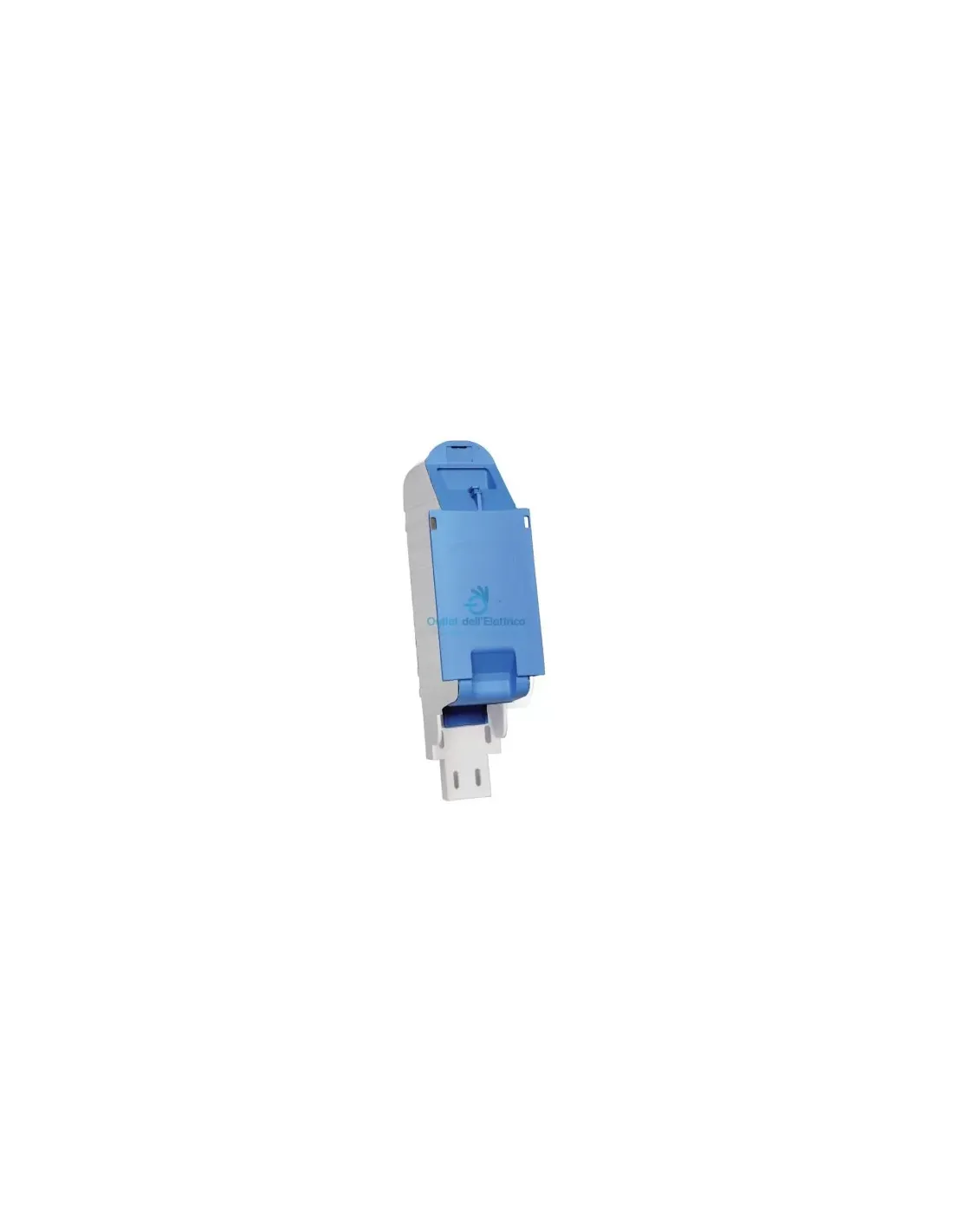

Zippo 9463 terminal block inc pole 38x132 1f use 3x10mmq

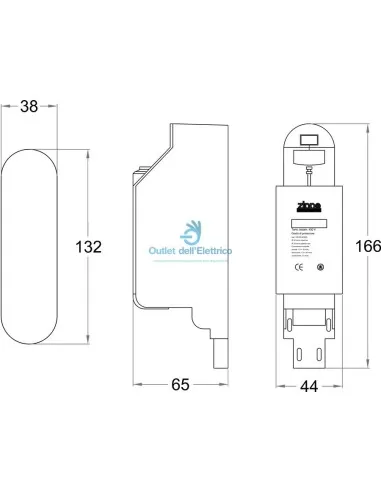

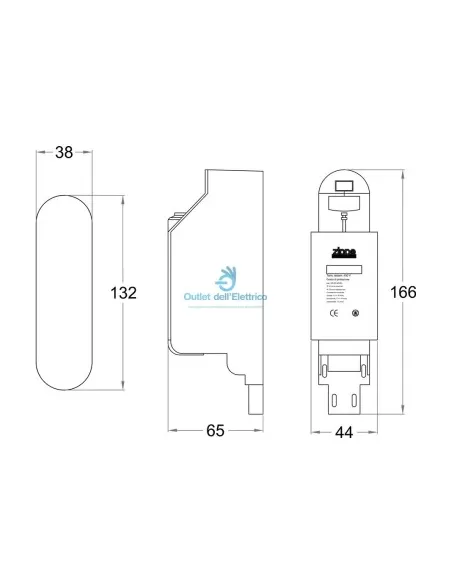

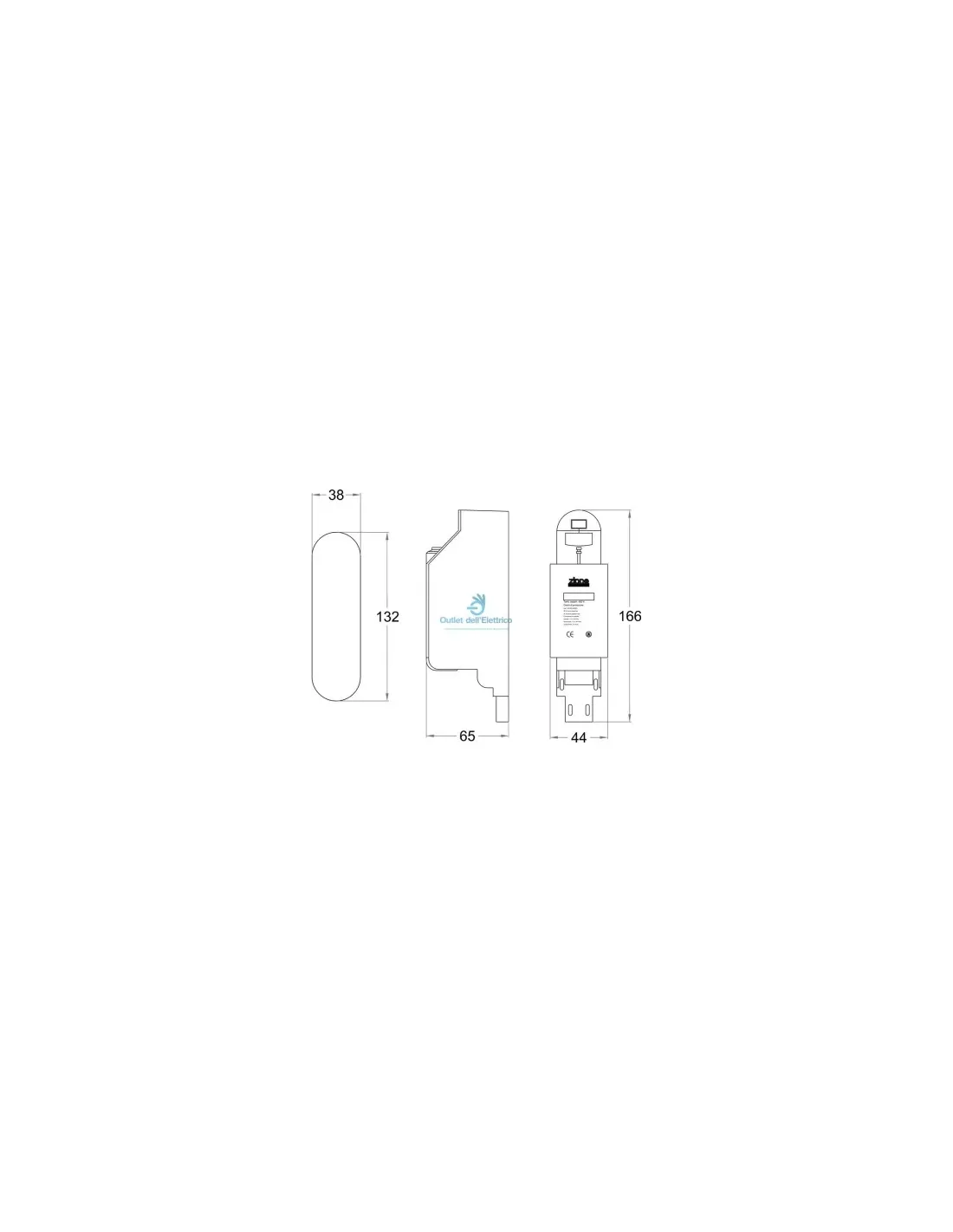

Class II terminal block (double insulation CEI EN 60439-1) with 38x132 mm slots. Complete with terminal and fuse holder. Made of self-extinguishing polyamide 66, with a RAL 5014 blue cover and a RAL 7035 grey base. The cover and base are closed with a through screw protected by a cap (IP43). The cable entry area is closed with an adjustable shutter and a protective cover that can be placed over the electrical cables (IP23). The cable tray has two slots for inserting cable ties, one for cable assembly and one for locking the shutter. The terminal is fixed to the inside of the base and is made of self-extinguishing polyamide 66 with brass contacts. The fuse holder is made of self-extinguishing polyamide 66 with phosphor bronze contacts.
