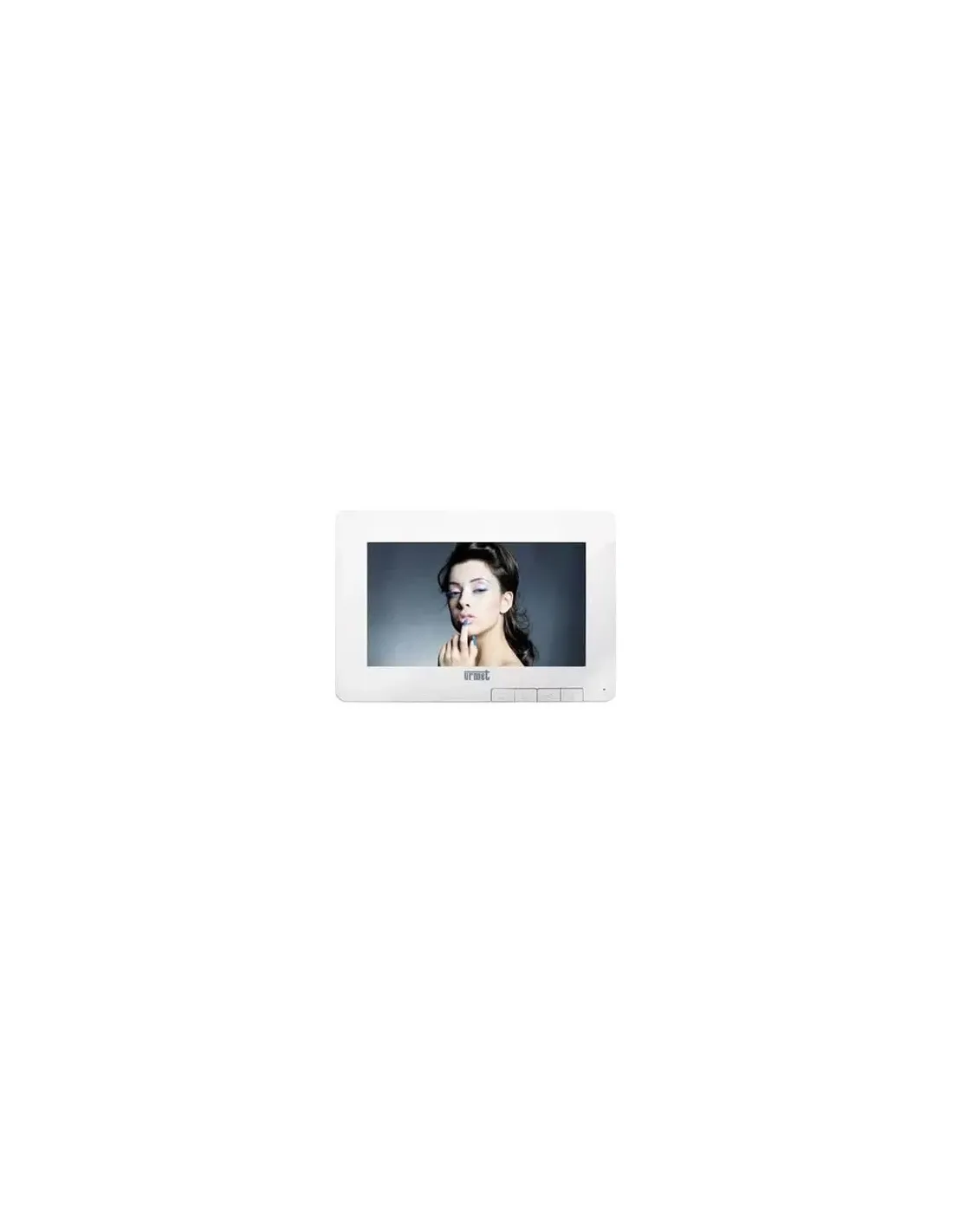

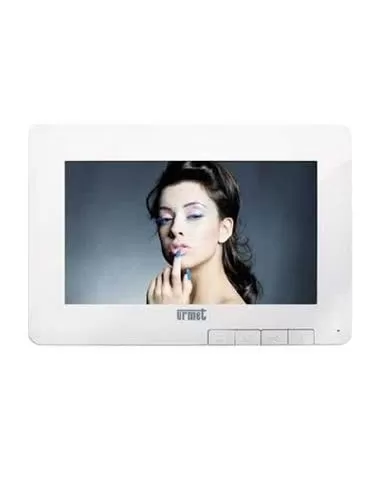

Urmet 1708/1 7" Video Door Phone with Coax System

The main features of the Sch.1708/1 colour video intercom are:

• Installation on analogue video intercom systems with coaxial cable and electronic call.

• Wall-mounted installation, the device is equipped with a plastic bracket for wall installation on a generic flush-mounting box (Ø60mm or mod.503)

• 7" color LCD display

• Dedicated door opener button

• 2 Auxiliary buttons for self-on or for driving auxiliary relays for the activation of electrical loads (if appropriately connected)

• Contrast and color adjustment from the OSD (on screen display) menu using buttons on the right side of the monitor

• Adjust the ringtone and call volume using potentiometers located on the bottom of the monitor

• Supply voltage: 18 Vdc +/- 2 V

• Maximum current draw: 450 mA

• Power consumption in operation:

• Liquid crystal display: 7" TFT

• Screen size: 155 x 87 mm

• Video resolution: 320H x 280V lines

• Max current rating of contacts X1,X2 and Y1,Y2: 100 mA @ 18 Vdc

• Operating temperature: 0÷50 °C

• Max humidity:

• Dimensions (wxhxd): 200 x 136 x 24.5 mm
