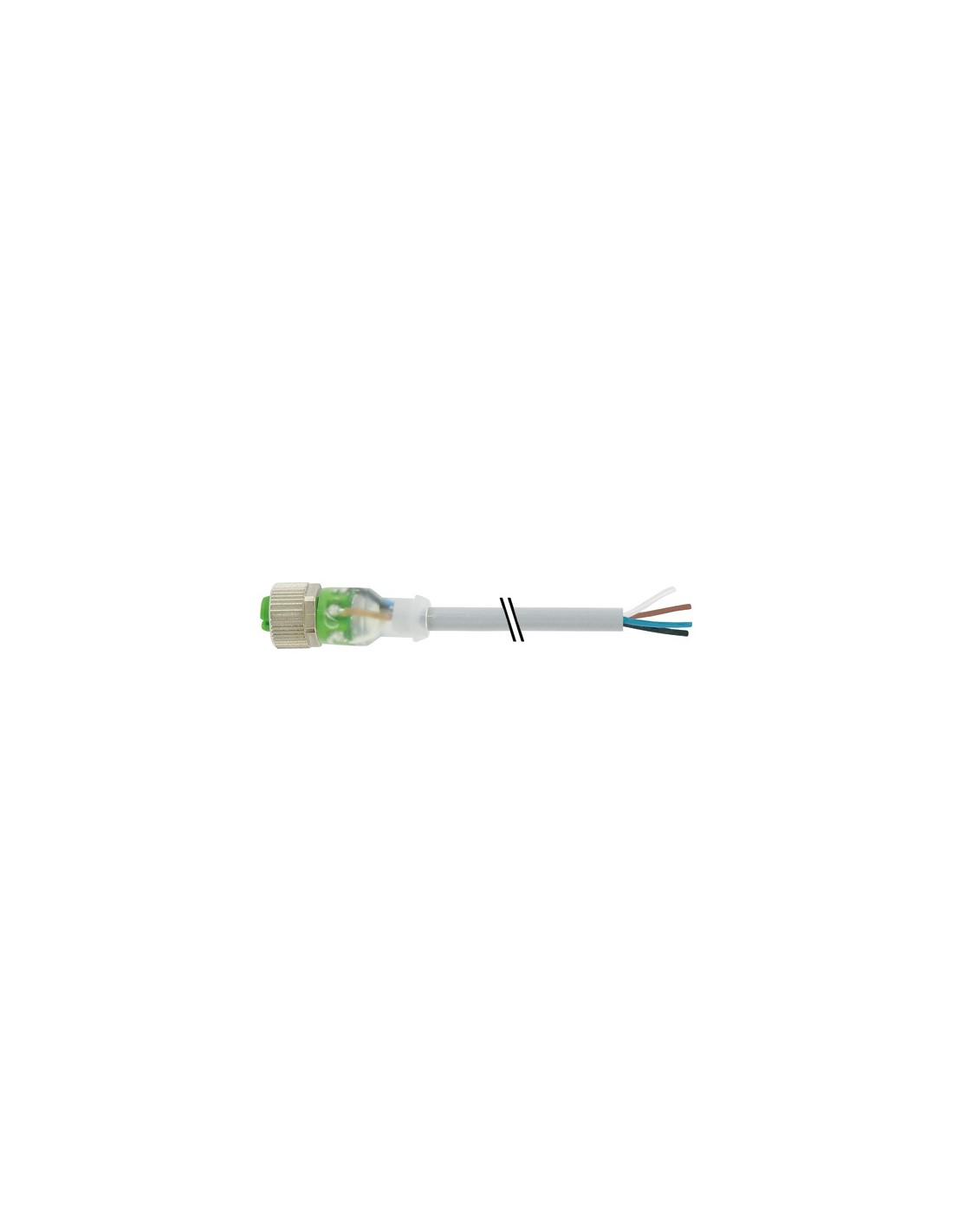

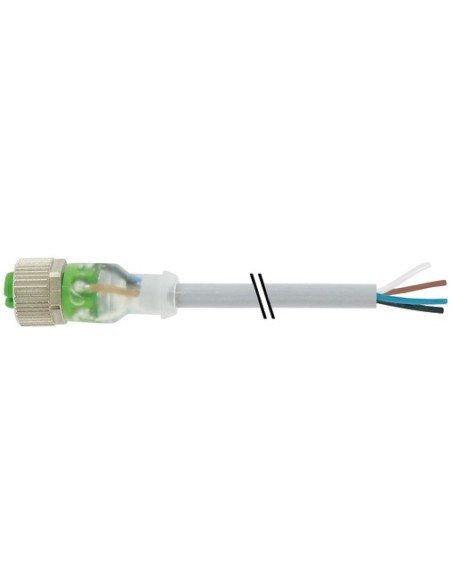

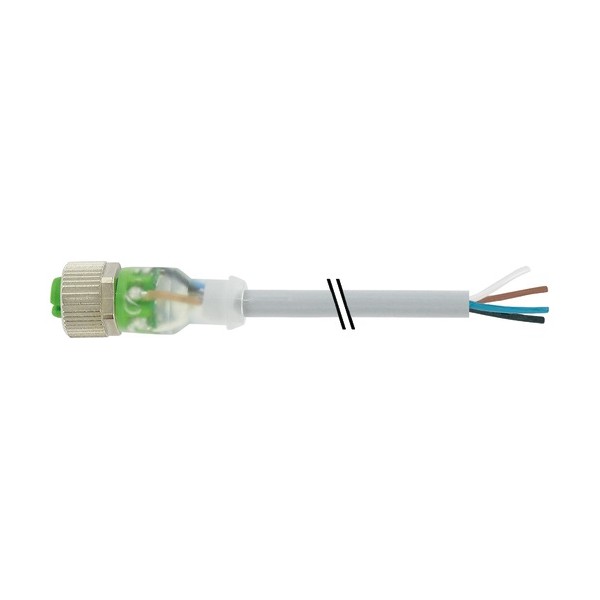

Murrelektronik 7000-12281-2130500 m12 female straight with cable

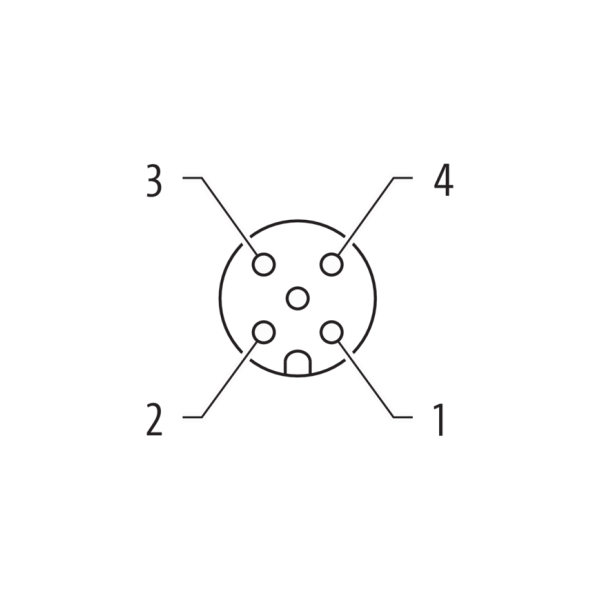

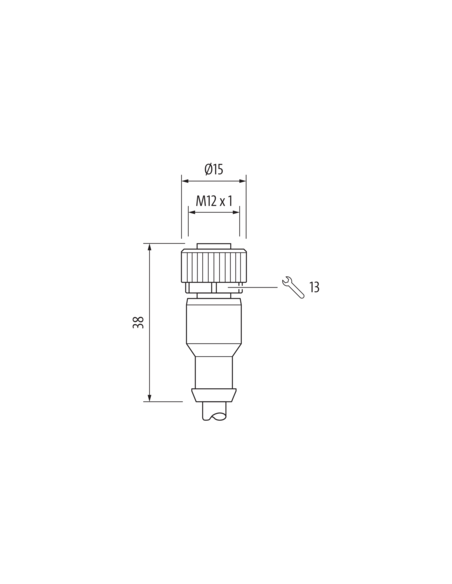

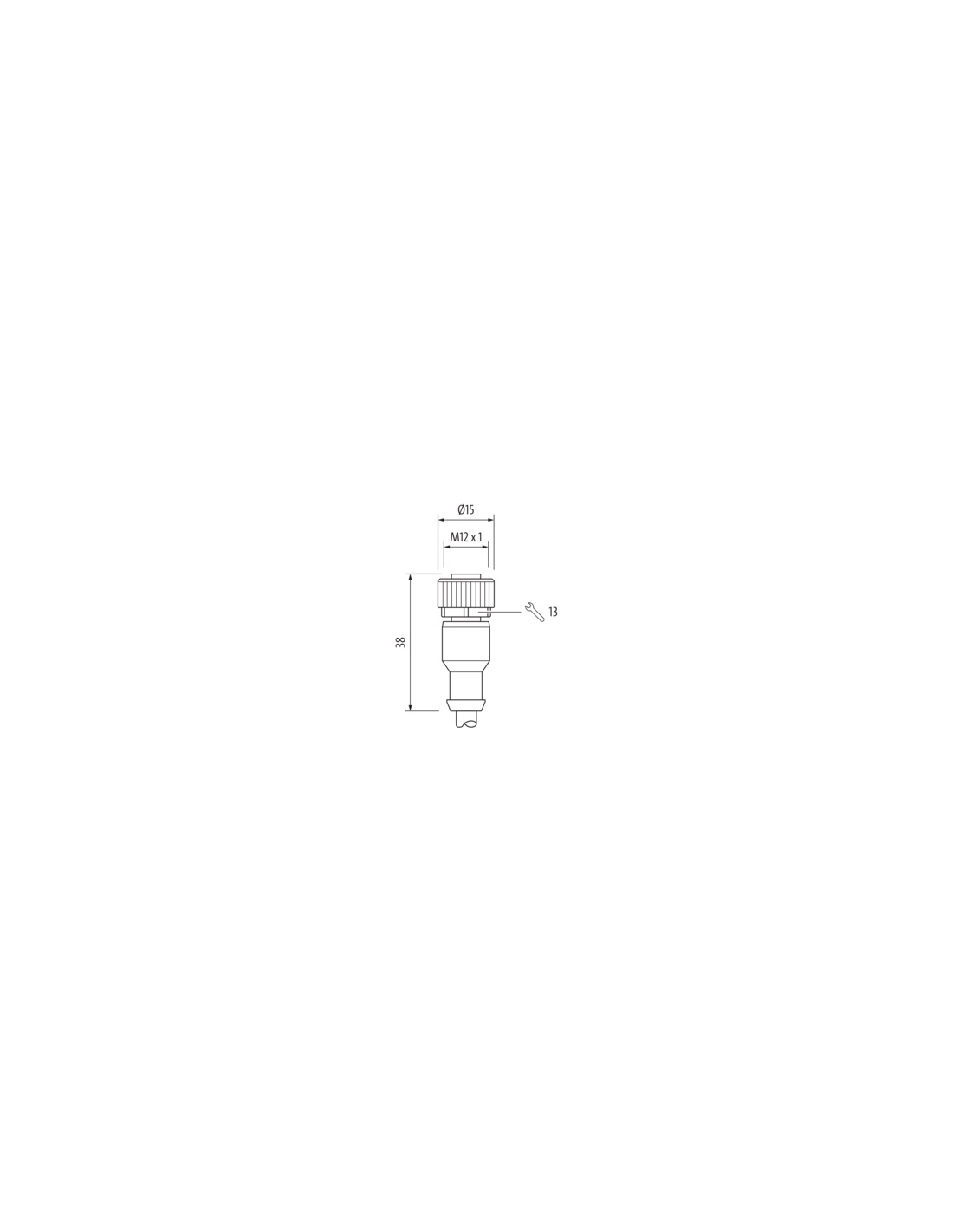

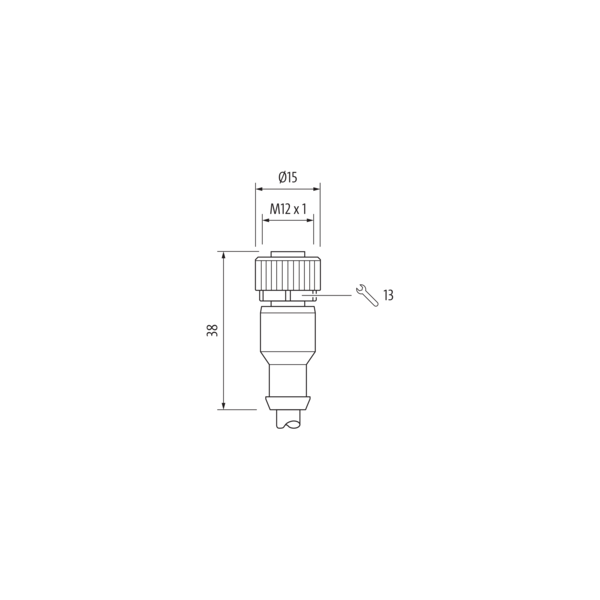

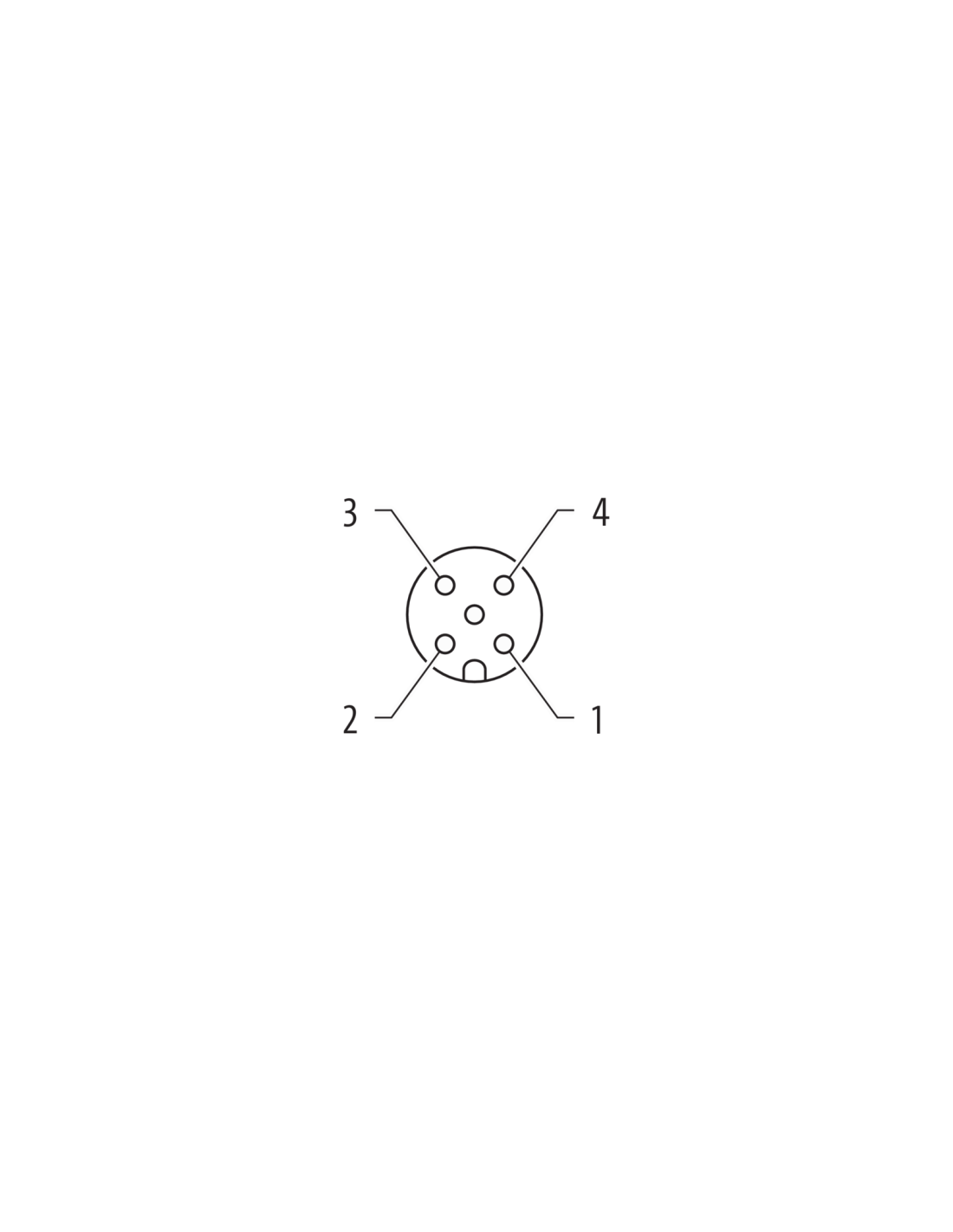

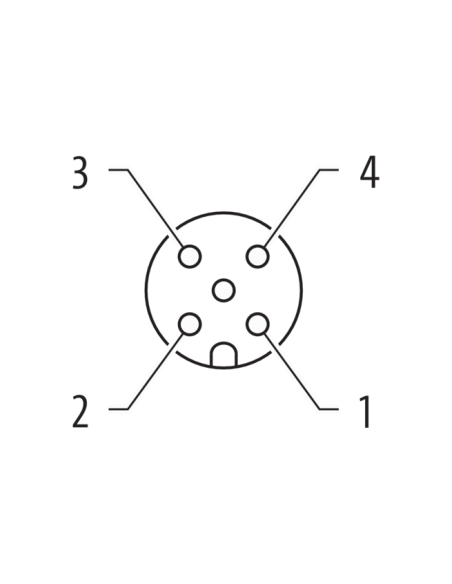

TECHNICAL DATA Operating voltage 24 V DC ±25% Operating voltage (UL listed only) max. 30 V DC Operating current per contact max. 4 A Material group IEC 60664-1, category I Coding A-coded Indicator LED (yellow//green) Connector locking Thread (M12×1 mm) tightening torque 0 6 Nm) self-locking Cable gland M12 (SW13) Degree of protection IP65, IP66K, IP67 when plugged in and locked (EN 60529) Material PUR Locking device material Die-cast zinc, matt nickel-plated suitable for sheath (inner Ø) 10 mm GENERAL DATA Standards DIN EN 61076-2-101 (M12) Pollution degree 3 Temperature range -25 85 °C, depending on cable quality CABLES No.//wire diameter 3× 0 34 mm² Wire insulation PVC (ma, bl, ne) Outer Ø 4 6 mm ±5% Cable identification 213 Cable type 1 (PVC) Certifications (cable) UL (AWM-Style 2464//1731), CSA Cable weight [G//m] 34.1 g Material (wire) Copper wire, bare Resistance (conductor) max. 60 O//km (20 °C) Wire Ø solid (conductor) 0 15 mm Structure (conductor) 19× 0 15 mm (multi-stranded strand class 5) Diameter (conductor) 3× 0 34 mm² AWG similar to AWG 22 Material (wire insulation) PVC Material properties (wire insulation) Free of CFCs, cadmium, silicone and lead Shore hardness (wire insulation) 45 ±5 D Wire Ø incl. insulation 1 25 mm ±5% Color//number of wires brown, black, blue Wire combination 3 stranded wires Shielding no Material (jacket) PVC Material property (jacket) Free of CFCs, cadmium, silicone and lead Hardness (jacket) 85 ±5 A Outer Ø (jacket) 4 6 mm ±5% Color (jacket) grey Color grey Cable printing - Chemical resistance good resistance to oils, petrol and chemicals Rated voltage UL 300 V AC Test voltage 2000 V AC Current carrying capacity according to DIN VDE 0298-4 Temperature range (fixed) -30 80 °C Temperature range (fixed) -30 80 °C Temperature range (moving) -5 80 °C Temperature range (moving) -5 80 °C Bending radius (fixed) 5× outer Ø Bending radius (moving) 10× outer Ø Bending radius (moving) 10× Ø outer Material (coating) PVC (UL//CSA)
