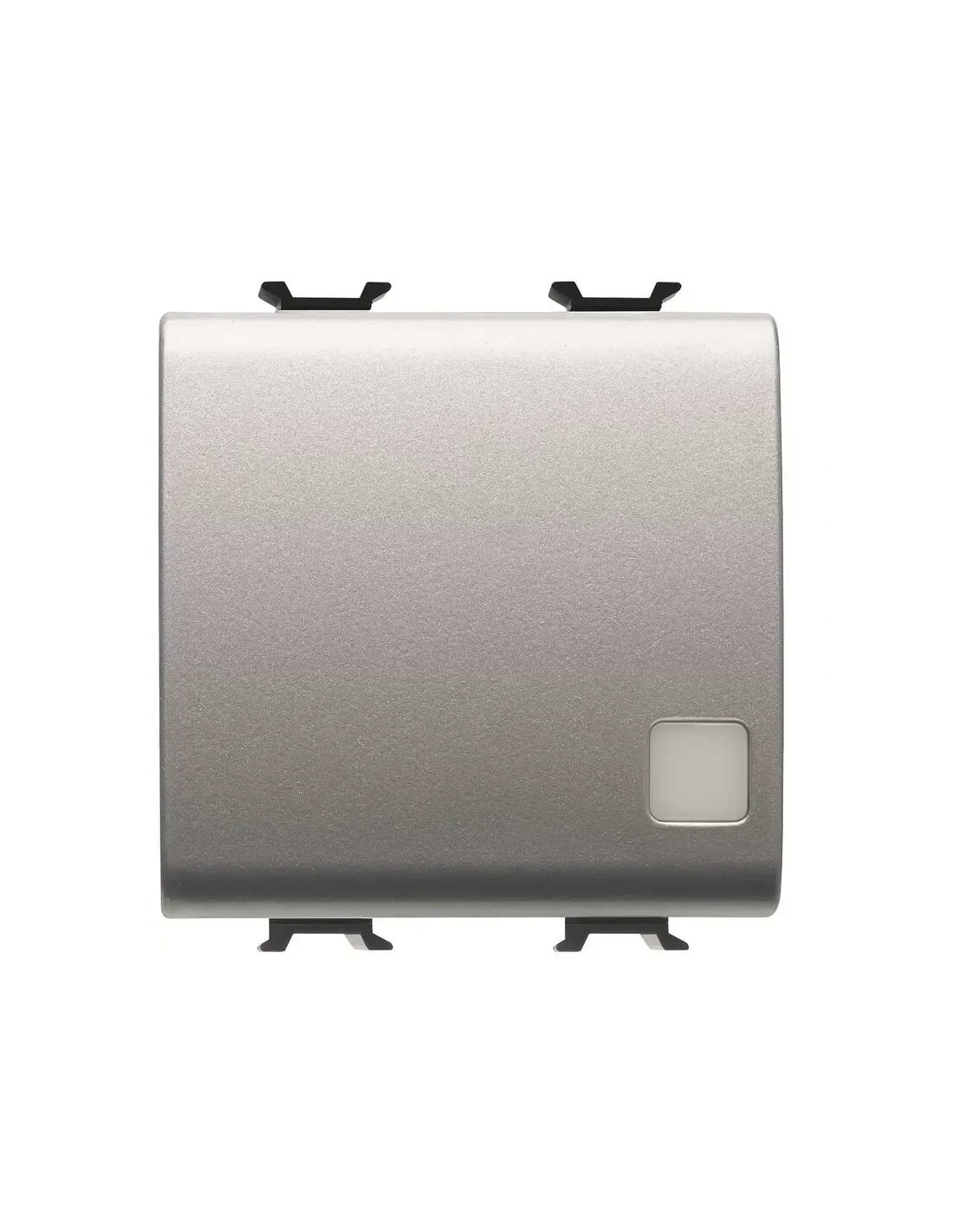

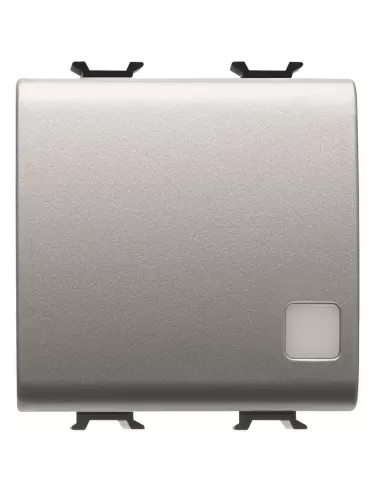

Gewiss gw14173f button 2m 1p na 16a ill segn cab l rap t

SINGLE POLE PUSH BUTTON 250V ac - FAST WIRING TERMINALS - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - TITANIUM - CHORUSMART Category Push button Button With replaceable neutral lens Colour Polished titanium Description 1P NO - 16 A illuminable Voltage 250 V ac Reference standard EN 60669-1 Test voltage withstand 2000 V at 50 Hz for 1 minute Insulation resistance 5 MOhm Wiring terminals Quick spring terminals Extended switch operation (N position changes) 40 000 a In 250 V ac cosf 0.6 Thermo-pressure with ball 125 °C Resistance to incandescent wire 850 °C Terminal strength under cable traction 50 N Terminal clamping capacity flexible cables (mm2) min 0.75 - max 2x4 Terminal clamping capacity rigid cables (mm2) min 0.5 - max 2x2.5 N modules 2
