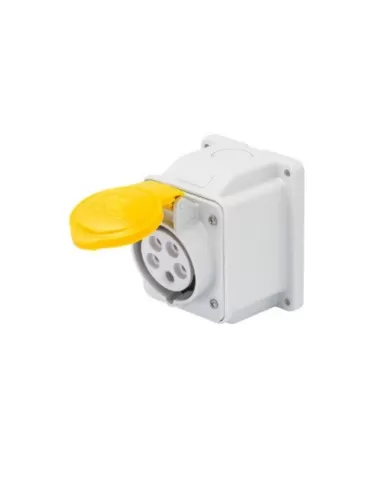

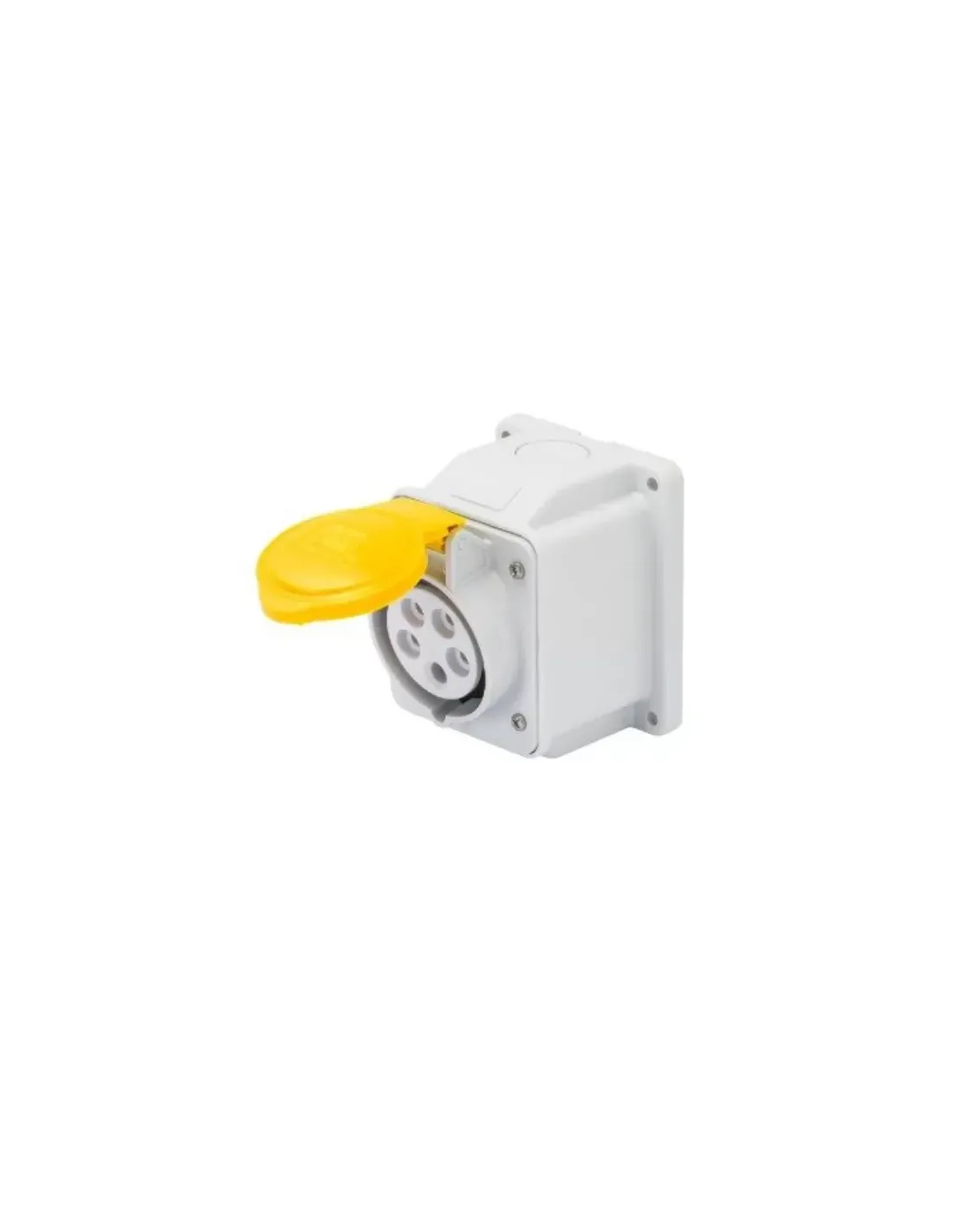

Gewiss gw62402 fixed socket 10° par pr 3p t 16a 110v 4h

Range: IEC 309 HP range Plugs and sockets compliant with IEC 309 standards The IEC 309 HP system is made up of plugs and sockets from 16 to 125 A in two different versions – straight mobile and 10° recessed – which have IP44 degrees of protection// IP54 and IP66//IP67//IP68//IP69 (IP68//IP69 available only for straight versions) The introduction of all time references for the earth contact completes the range for specific applications and installations The 16-32 A versions they are available with screw wiring or rapid wiring with spring terminals, while the 63-125A versions offer indirect wiring with mantle terminals COLOR Yellow NOMINAL CURRENT (A) 16 IP GRADE IP44 N OF POLES 3P T MECHANICAL RESISTANCE IK08 REFERENCE H 4 NOMINAL VOLTAGE 100-130 V TYPE 10° inclined wall socket FREQUENCY 50//60 hz TERMINALS CLAMPING CAPACITY Flexible cables 1-2 5mm² - rigid cables 1 5-4mm² OPERATING TEMPERATURE -25 55 °C TYPE OF WIRING With screw ELECTROCOD 2210 GLOW WIRE TEST 850 °C (active parts) - 650 °C (passive parts) TOTAL NUMBER OF OPERATIONS 5000 ALLOWED OVERLOAD 22 A BREAKDOWN CAPACITY A 1.1 UN 20 A INSULATION RESISTANCE 10 MO THERMOPRESSURE WITH BALL 125 ° C (active parts) - 80 °C (passive parts)
