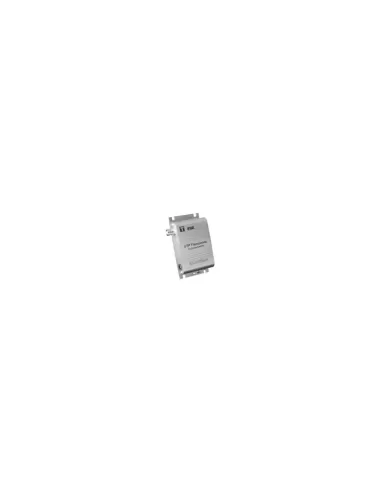

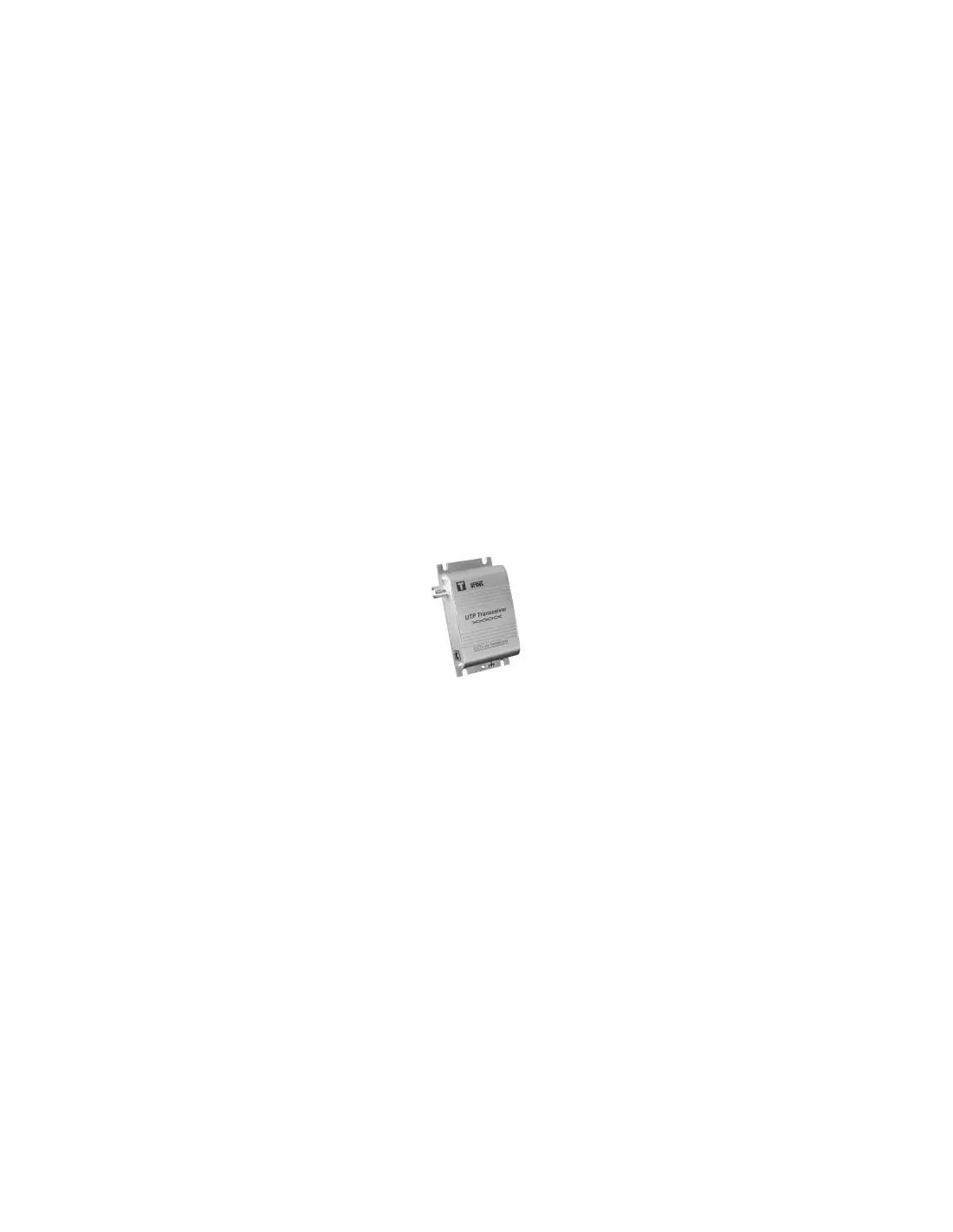

Urmet 1092//302 balun 1ch active tx

The Video Balun active transmitter (with signal amplification) allows impedance matching between coaxial cable and UTP cable and is particularly suitable for the transmission of a video signal, white//black or colour, on UTP cable (Unshielded Twisted Pair) when distances exceed 1200m Can be used with the active receivers 1092//303, 1090//304 or with the 1092//316 Compact dimensions for a simple connection to video management equipment, monitors and cameras 1 Video Input BNC (female) and terminal block for connection with UTP CAT5 cable Extreme ease of use Adjustment of the transmission signal amplification gain level on three levels Double impedance and noise filter to guarantee greater safety against interference Provision for wall mounting 12V DC power supply â € max 80 mA (power supply not included) Additional Features (bmcat) Mounting type: Others Width: 110 mm Height: 80 mm Depth: 80 mm Number of inputs: 1 Number of outputs: 1
