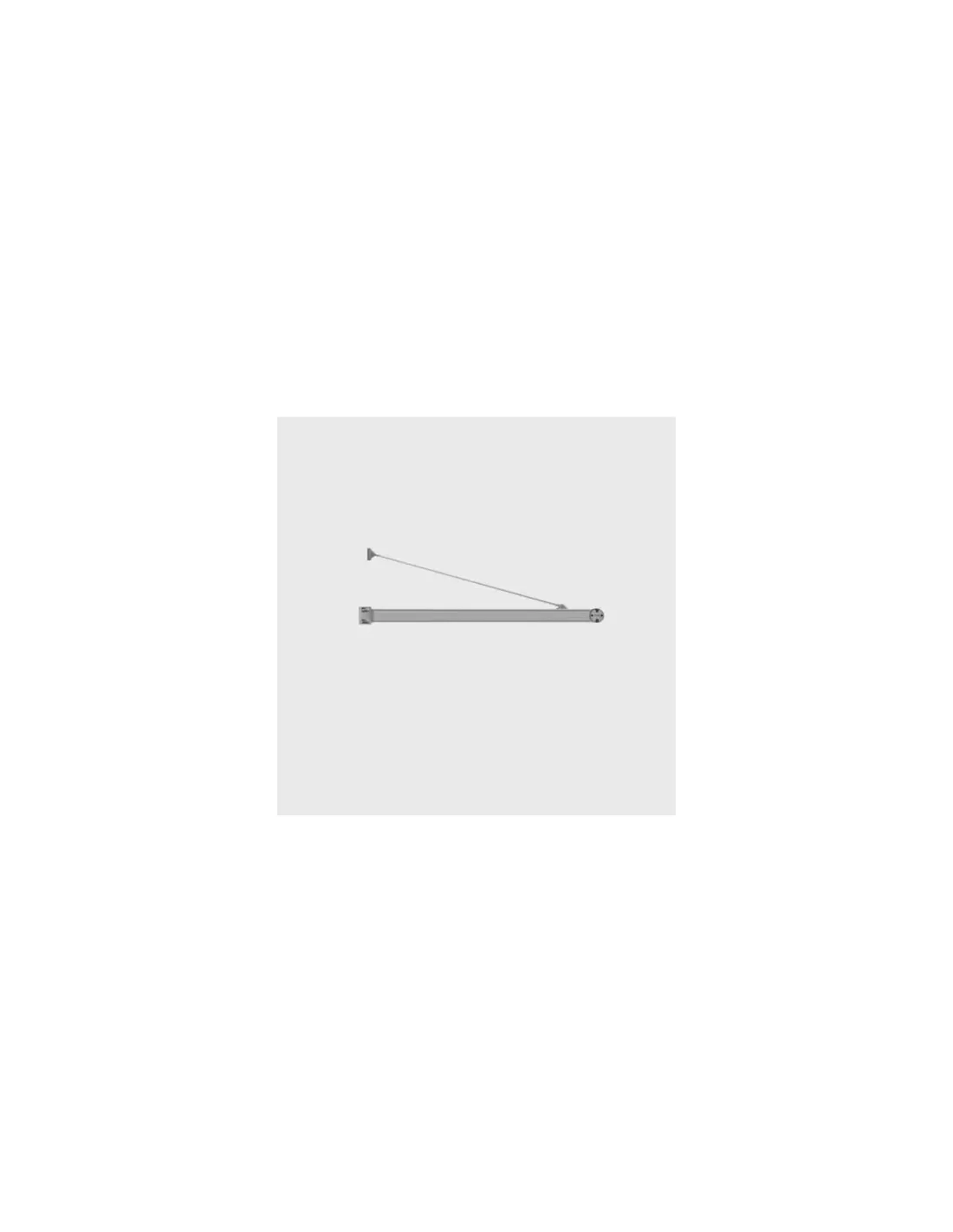

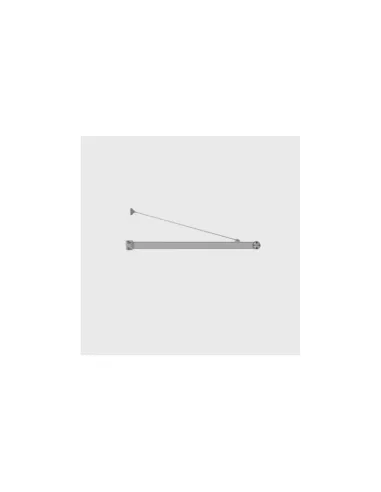

Iguzzini 3 bz92 015 0 single arm fe h50 l 420 for stalls

Single arm made of extruded aluminium, subjected to phosphochromation treatment, double primer coat, passivation at 120° C, painting, firing at 150° C. The surface treatment of the arm is with liquid painting. The power cable, with a maximum allowable section of 15mm² , passes inside the arm. At one of the two ends of the arm there is the connection to the optical compartment in die-cast aluminium, fixed with two internal screws. The coupling of the arm with the optical compartment is carried out by means of two safety grub screws and two screws of stainless steel fixing The flange is fixed to the pole through a counterflange, while the installation is guaranteed by M10 stainless steel nuts and screws. The flanges are made of shell-cast aluminium, treated with a phosphochromating process. There are hexagonal seats on each flange for the anti-rotation of the stainless steel nuts and grub screws, thus preventing the rotation of the product. In the upper part there is the tie rod, made of aluminum subjected to RAL 9007 gray liquid painting, which has a double value, both mechanical and aesthetic. tie rod is fixed to the pole and to the arm via two shell-cast aluminum elements; its adjustment is allowed by means of the threads at its ends All the screws used are in stainless steel The installation is on a 102 mm pole, using flanges and tightening screws Colour: Gray (15) Weight (Kg): 5 58
