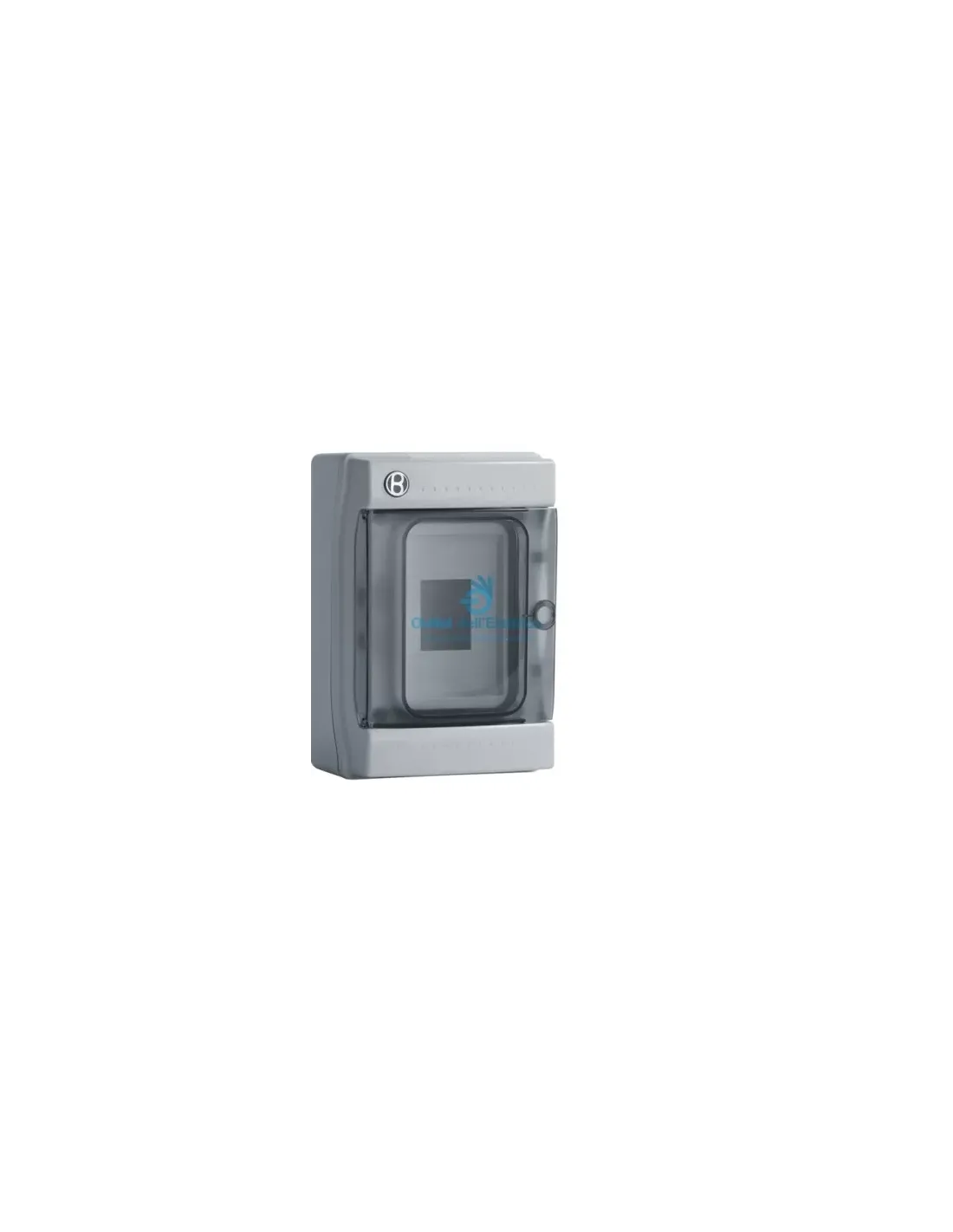

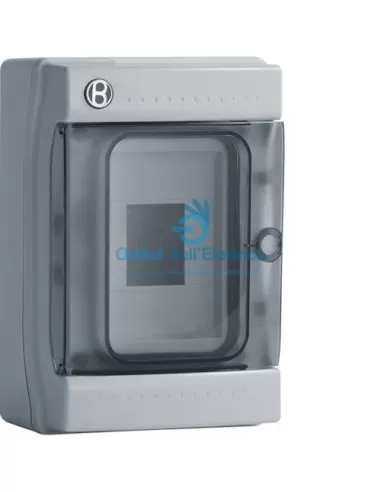

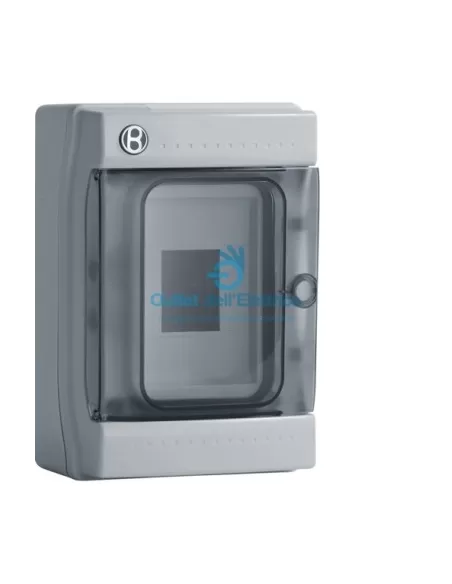

Hager B06521 Grey IP65 Wall Switchboard 4 Modules
| IP65 04 GRI IP65 control panel 4 modules smoked door Pablo line GREY | |
| Code | B06521 |
Condizione prodotto:New
Secure Payments
Delivery times
Fedex Road Europe: 5-7 working days
Dhl Road Europe: 3-5 working days
DHL Express International: 2-3 working days
Legal guarantee of conformity
Payments Method
Technical features
| Fixing method | protruding |
| Suitable for DIN rail mounting | Yes |
| Rated current in A | 125 A |
| Door lock type | without blocking |
| Type of coverage | Blind door |
| Lock | without |
| Type of coverage | Brings |
| Transparent cover or door | Yes |
| Color | RAL7035 |
| Color | light gray |
| RAL color | Grey RAL 7035 |
| Material | plastic |

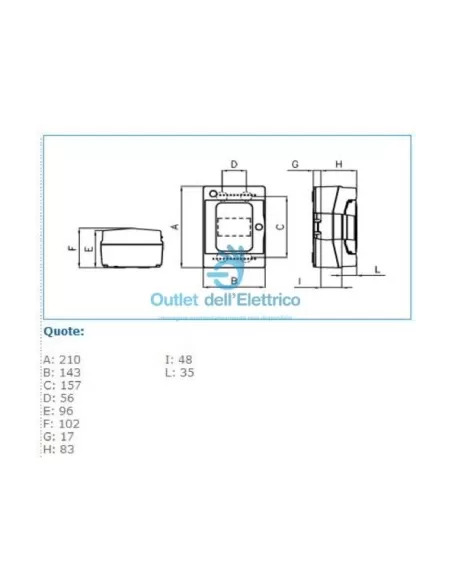

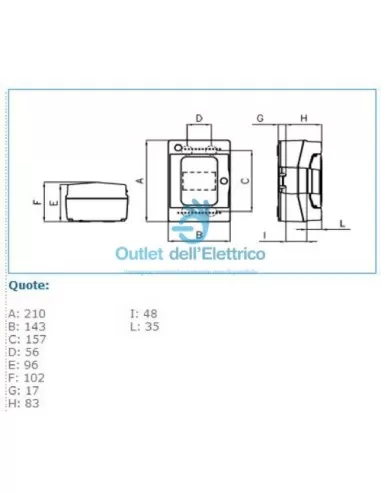

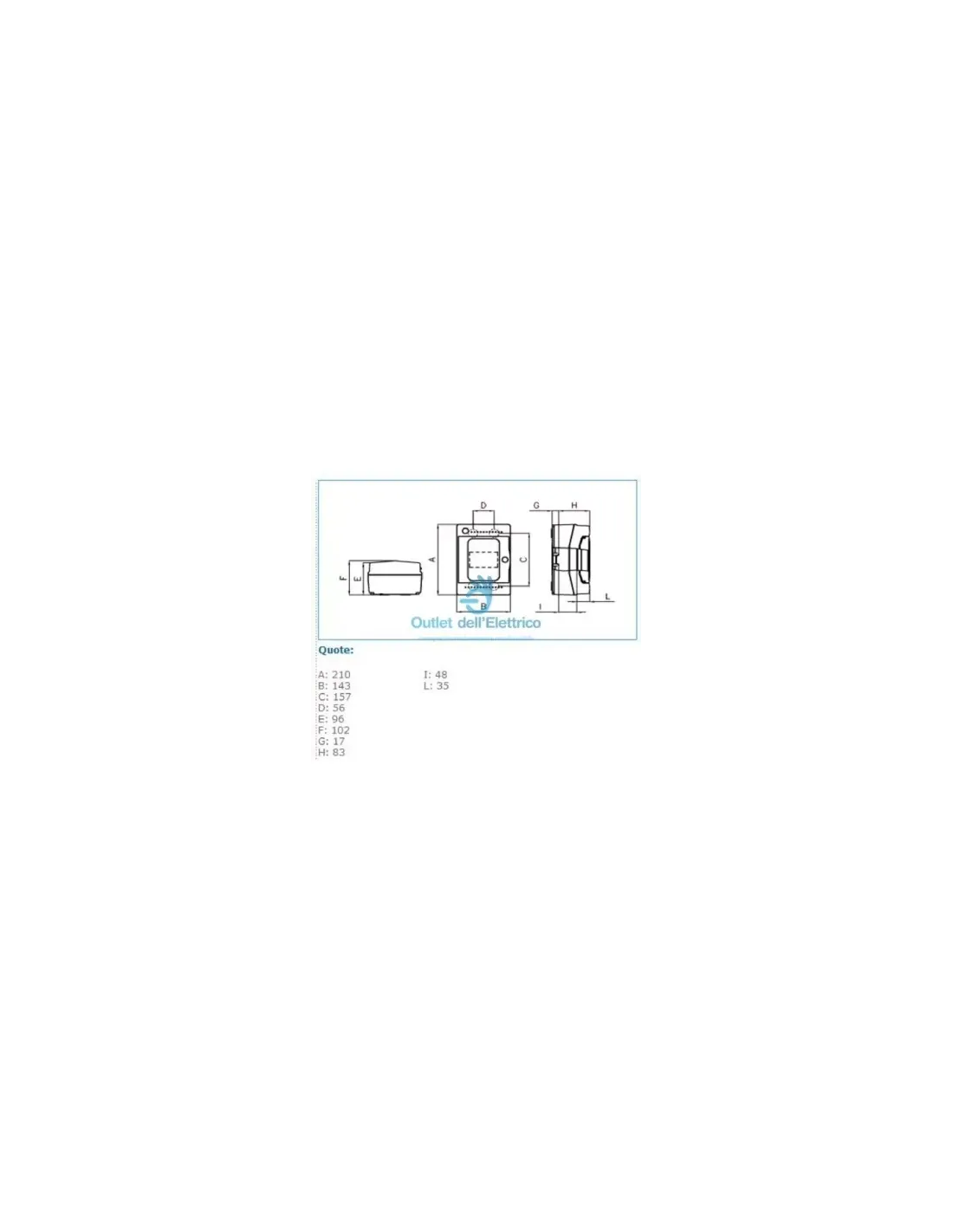

| Depth of installed product | 102 mm |
| Internal depth | 102 mm |
| Height of the installed product | 210 mm |
| Installed product width | 143 mm |
| Width in division units | 4 |
| Mounting plate included | No |
| With lock | No |
| Number of lines in the envelope | 1 |
| Number of keys | 1 |
| Reference standards | EN 60670-24 |
| European WEEE Directive | not interested |
| Impact resistance level | 09 |
| Degree of protection of the casing | IP65 |
| Protection class | class II insulation |
| Glow wire resistance rating | according to EN 60695-2-11: 960°C |
| Halogen-free | Yes |
| Ultraviolet resistant | Yes |
| Operating temperature | -25…60 °C |
New
65
8015892065213
B06521
