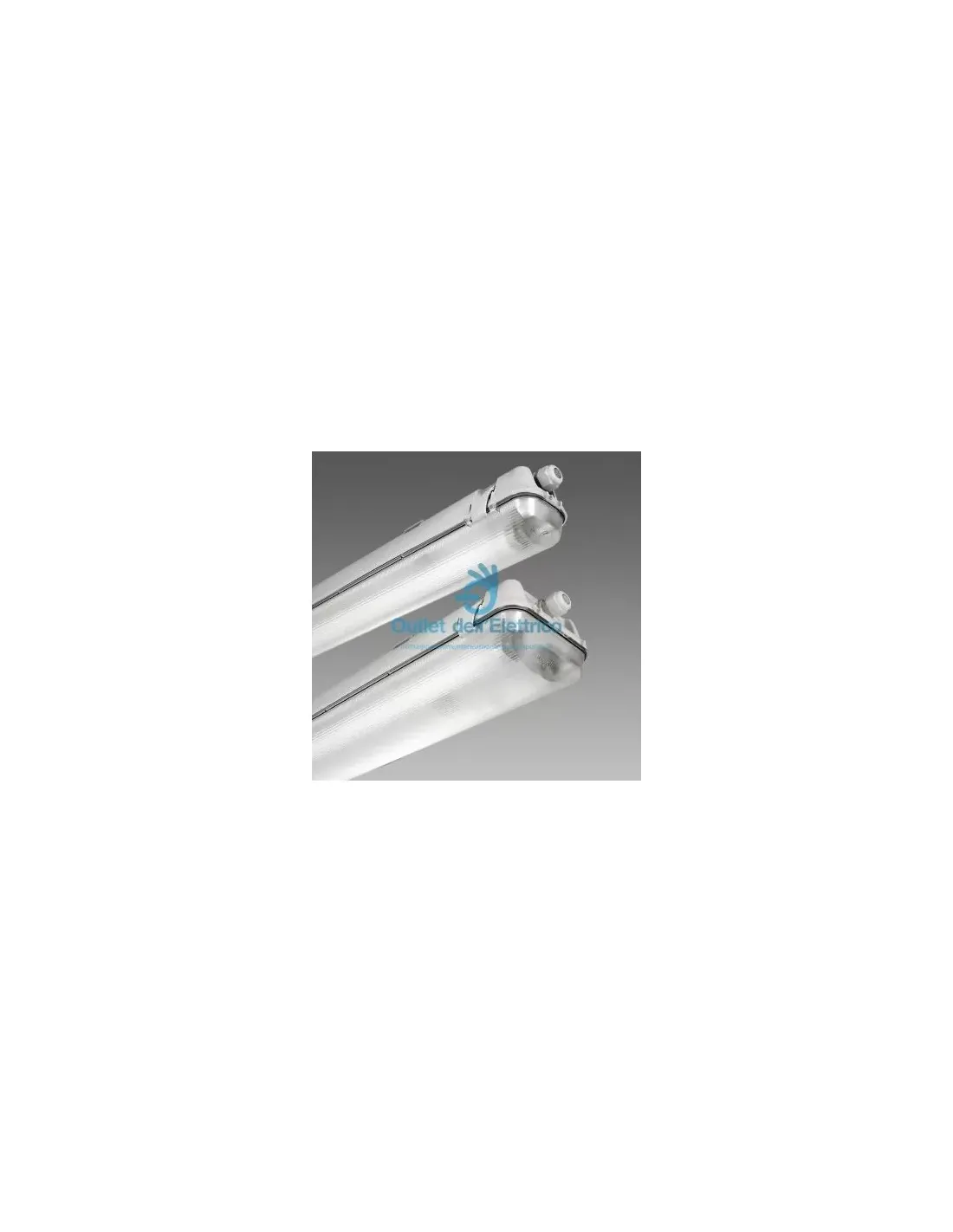

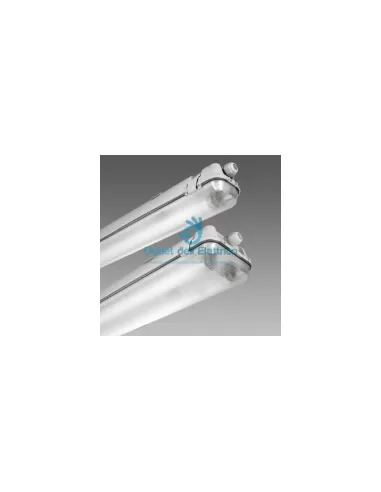

Disano 16453200 Hydro /el 921 fl1x58 elf grey

BODY: Injection molded, in gray RAL7035 polycarbonate, unbreakable and self-extinguishing V2, with high mechanical resistance thanks to the structure reinforced by internal ribs.
DIFFUSER: Injection molded in transparent polycarbonate, internally prismatic for greater light control, self-extinguishing V2, UV stabilized. The smooth external finish facilitates the cleaning operation, which is necessary to always have maximum luminous efficiency.
REFLECTOR: In cold rolled steel, anti-cracking hot galvanized, coated with 7/8 micron epoxy primer base, anti-yellowing UV stabilized paint in glossy white polyester, 20 micron thickness.
LAMP HOLDER: In white polycarbonate and phosphor bronze contacts. G13 connection.
WIRING: 230V/50Hz power supply, with electronic ballast. Rigid cable 0.50 mm² section coated with PVC-HT resistant to 90°C, according to CEI 20-20 standards. 2P+T terminal block with fuse holder, maximum permitted conductor section 2.5 mm².
EQUIPMENT: 3.15A. Nylon fv diam. 1/2 inch gas. Gasket in ecological expanded polyurethane material. fv. Predisposition for tightening with steel screws.
REGULATIONS: Produced in compliance with current standards EN 60598-1 CEI 34-21, protection degree IP66IK08 according to EN 60529. Can be installed on normally flammable surfaces. It has obtained the ENEC European conformity certification. Resistant to the glow wire test for 850°C.


THE WATERPROOF polycarbonate armours of the Hydro series have an IP66IK08 degree of watertightness if installed in environments with temperatures not exceeding 45°C. Direct exposure to sunlight easily leads to exceeding 45°C, compromising the degree of protection. However, it is advisable to use them appropriately without altering their mechanical and protective qualities (IP66IK08) and not to install them on surfaces subject to strong vibrations , exposed to atmospheric agents, outdoors on ropes or poles, on walls, under metal grates or in any case directly exposed to sunlight, otherwise use watertight steel armor.
