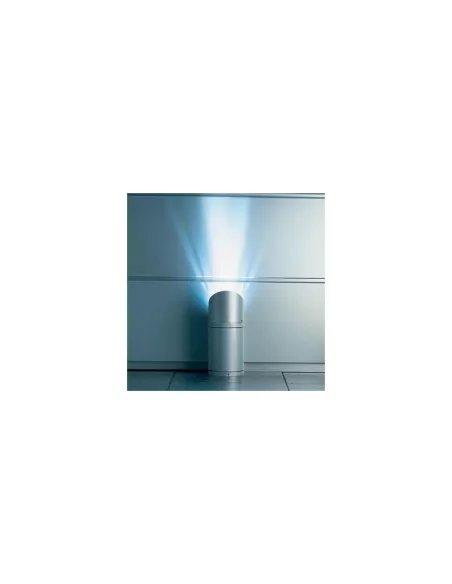

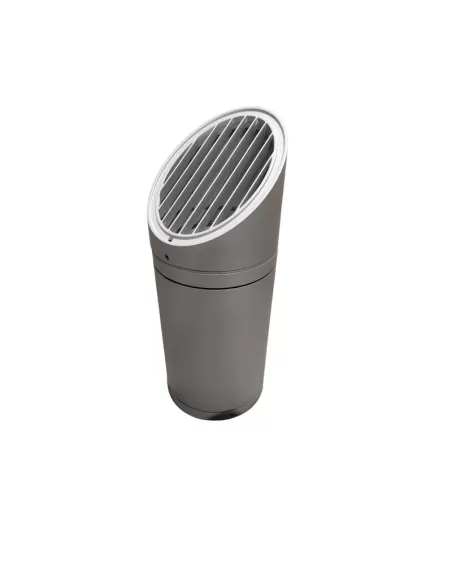

Simes S.3326.14 Jet 1 X HIT-CRI 70W G12 grey

S.3326

JET

-TYPE

Floor-standing table.

Degree of protection IP 65

-FEATURES OF THE MATERIALS

Body in extruded primary aluminium EN AW-6060 and die-cast EN

AB-47100 with high oxidation resistance.

Tumbling process to prepare for the painting phase.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

bonded with high resistance characteristics to UV rays and agents

atmospheric, with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 10

-LIGHTING PERFORMANCE

Reflectors made of 99.98% pure aluminum.

8 mm thick tempered transparent protective glass.

Light source, with fixed lamp position.

Yield --

-INSTALLATION AND MAINTENANCE

The upper grille acts as an anti-glare screen. Below the grille is

attach a UV-stabilized polycarbonate disc that prevents

the entry of objects into the compartment below. The 14° medium beam reflector in

The equipment is adjustable and can also be, upon request, with a narrow beam

from 8°.

Between the upper grid and the cylindrical body containing the reflector are

3 drains have been created to allow the water to flow out, avoiding it

dirty deposits on the diffuser.

-WIRING

Double power cable entry with PG16 cable glands.

Insulation class CLASS I

Available colors: ALUMINUM GREY (code 14), ANTHRACITE GREY

(cod.24)

Weight 8.26 kg

Glow wire test 850°C

Lamps supplied upon request only.
