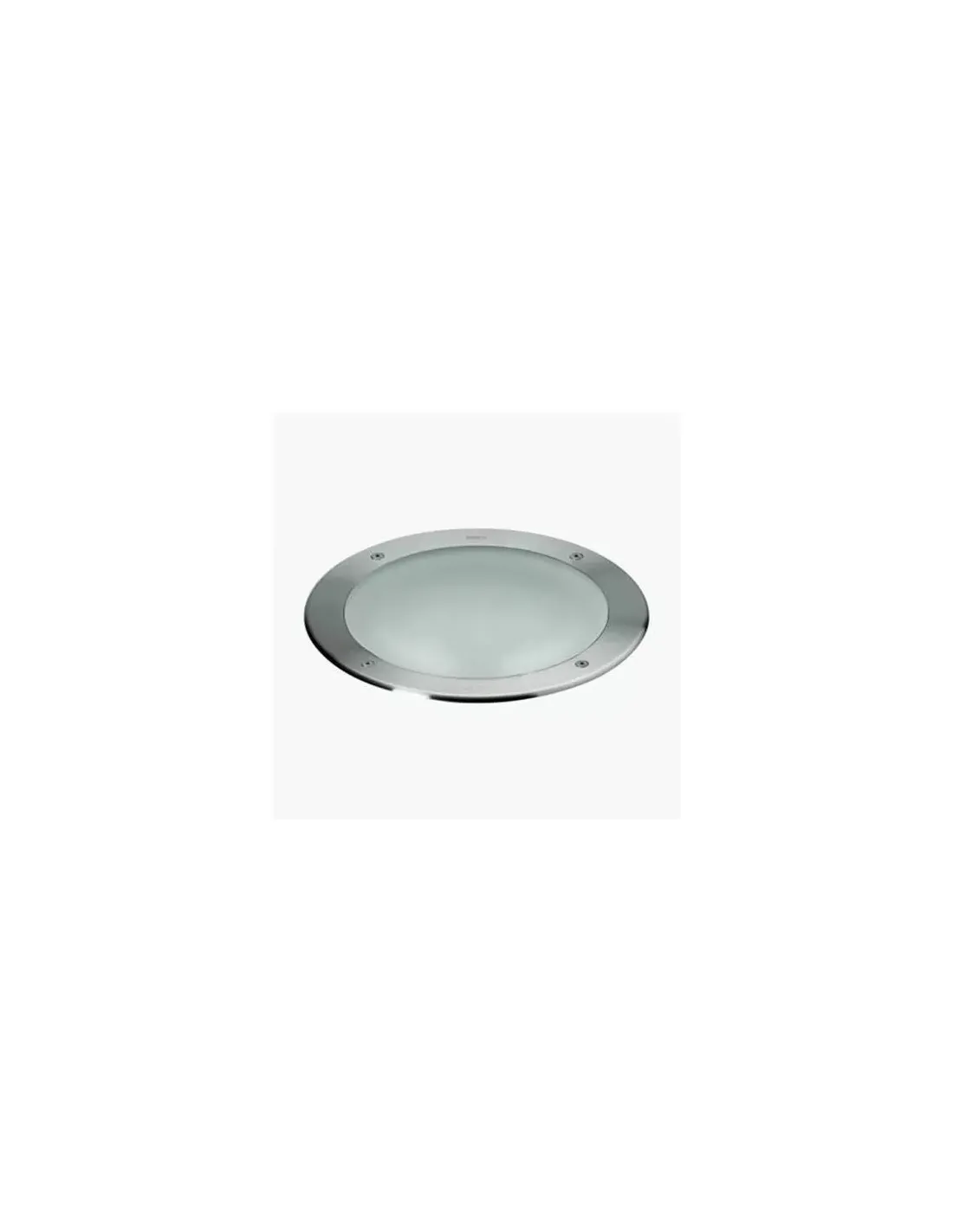

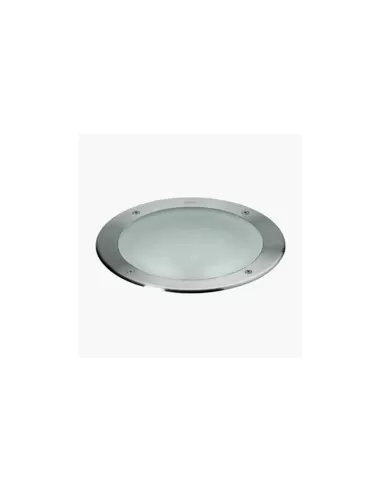

Sime S.5759.19 plano etched fc 10W TC-DE stainless steel

TYPE

Walkable device for ground installation.

Depth 100mm.

Degree of protection IP 67

-FEATURES OF THE MATERIALS

Body in die-cast primary aluminium "Copper Free" EN AB-44100

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

Front finishing ring made of AISI 316L stainless steel with strong

molybdenum content 2.5-3%.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Annealed silicone gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of material

metal-free fluozirconium containing ceramic nanoparticles that

they create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with salt spray test resistance of 1500h.

Mechanical resistance of glass IK 09

Maximum load 1000 kg

-LIGHTING PERFORMANCE

10 mm thick tempered acid-etched protective glass of the sodium type

Weissglass calcium with a high transmittance value of +12% (compared to a

common glass).

Light source, with fixed lamp position.

Yield 18%

-LOW SURFACE TEMPERATURE

Weissglass glass is able to absorb less energy than glass

traditional thanks to their high transmittance.

Glass temperature 60°C (Ta 25°C)

Electronic power supply with lower heat development.

Optimization of the layout of components within the product allows

excellent heat dissipation keeping the internal temperature within

admissible limits.

-FORMWORK FOR INSTALLATION AND MAINTENANCE

Supplied with polypropylene formwork with stainless steel outer edge

AISI 316L prepared on 4 sides for cable entry which allows:

1) perform easy wiring;

2) accommodate the quick connector;

3) Easily perform appliance removal for maintenance.

-WIRING

Piece of H07RN-F type power cable closed by the

PG 13.5 cable gland (Ø 6÷12 mm), sealed with epoxy resin

two-component and internally wired with cables covered by sheaths

silicone glass protectors.

The M20 quick connector (Ø 5÷14 mm) is supplied as standard for

single through connection, to be housed inside the formwork.

Changing the headlamp without completely removing the device.

Insulation class: CLASS I

With 230V-12V electronic transformer in IP67 box.

Available colors: STAINLESS STEEL (code 19)

Weight: 3.46 kg

Glow Wire test: --

Appliances supplied complete with lamp.
