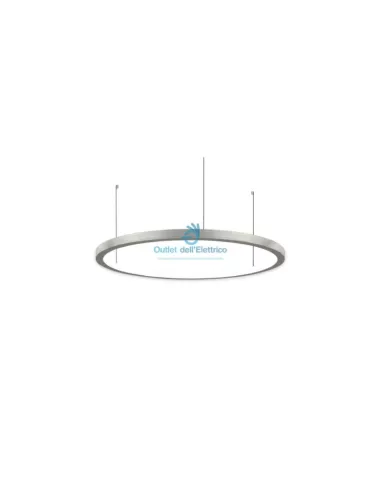

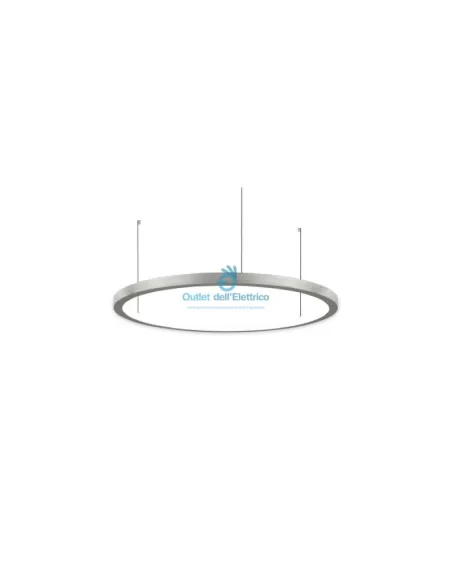

Linea light 64687w00 tour indirect suspension 45w 24v d940 bc nikel

Single emission suspension for indoor application. The LED light source, warm white in colour, with General Lighting light distribution, is made up of 210 topled LEDs, with a CCT 3000 K and a CRI 80; the luminous flux of the source is 5847 lm, with a nominal efficiency of 129.9 lm/W. The body of the luminaire, made of 6060 aluminium, has a nickel colored finish, obtained through liquid painting; the diffuser is made of UV resistant polycarbonate. The protection degree is IP40; the total weight is 5.2 kg. The power driver is not supplied and must be ordered separately. The power absorbed by the device is 45 W. The power cable is included and features.

Luminous flux calculated according to IEC 62722-2-1

5847 lm

Color temperature

3000...3000K

Suitable for continuous row configuration

no

Light distribution

Symmetrical

Degree of protection (IP)

IP40

Suitable for workplace according to EN 12464-1

no

Lamp

Non-replaceable LED

With lamp

Yes

Material (of body)

Aluminum

Body color

Nickel

Diffuser material

Plastic, opalescent

Type of voltage

A.D

Nominal tension

220...240V

Diet

Standard electronic transformer

Power supply included

no

Not dimmable

Yes

Light emission

Direct

With direct / indirect light with separate regulation

no

Energy efficiency class of the replaceable light source supplied

TO

Maximum energy efficiency class of the installable light source

TO

Minimum energy efficiency class of the installable light source

TO

Protection class

III

D (for assembly in industrial plants with fire hazard due to dust or fibers EN 60598-2-24)

no

Suitable for emergency lighting

no

Glow wire test according to IEC 60695-2-11

850 °C - 30 s

Suitable for power lamps

45...45W

Color of light

White

Color rendering index

80-89

Height / Depth

38mm

Diameter

910 mm

Suspension supplied with the product

Yes

Suspension length

5000...5000 mm
