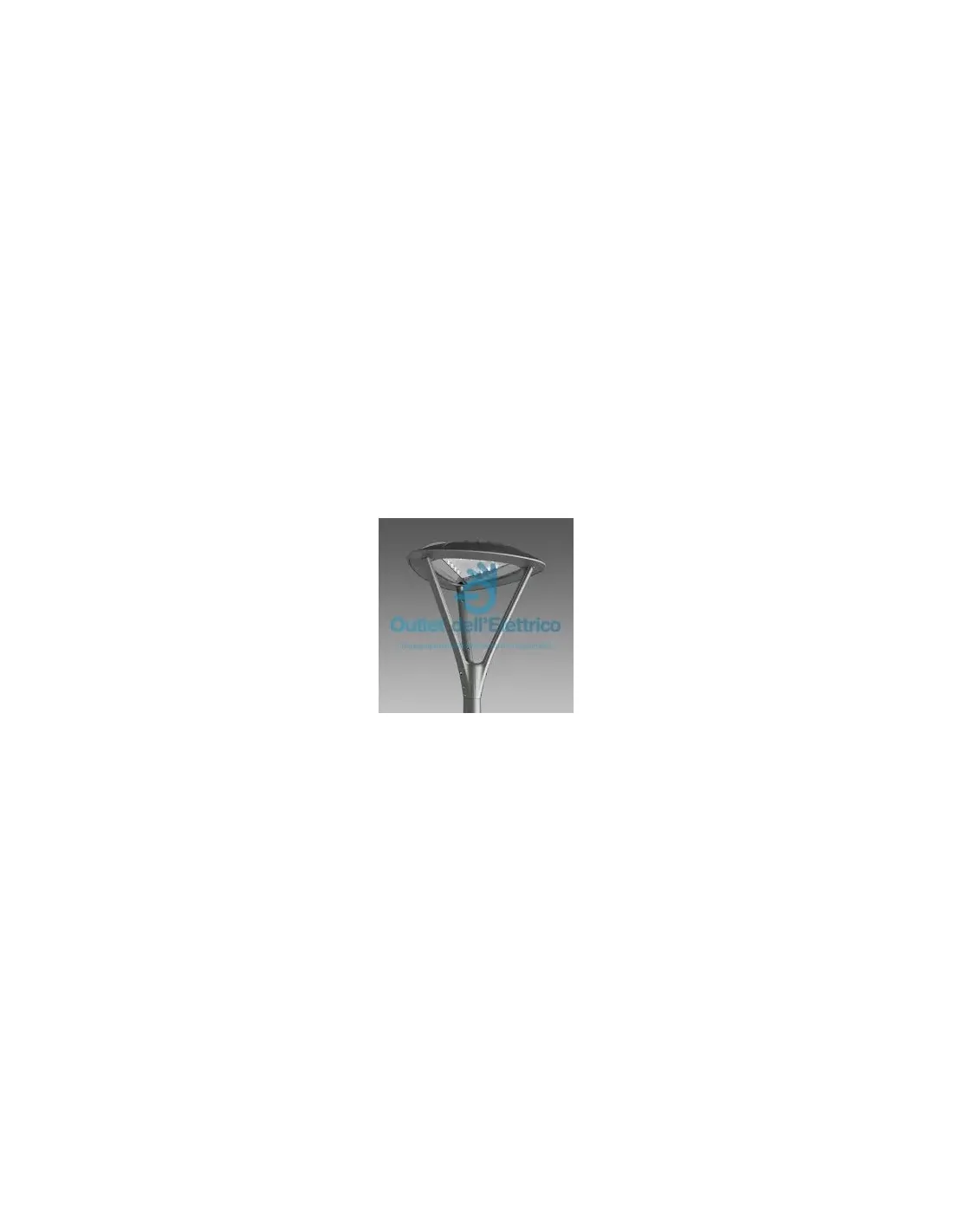

Disano 33023300 Loto 3342 led 77w cld graphic

Main features

• Luminous flux calculated according to IEC 62722-2-1 - 12960 lm

• Protection class - II

• Mounting method - Lay-on / Riser

• Lamp - Non-replaceable LED

• With lamp - yes

Body and frame: Die-cast aluminum, designed with a single section and very low surface area exposed to the wind. Cooling fins integrated into the cover. Optics: PMMA optics with high resistance to temperature and UV rays. Flux recuperators in high-performance, pre-anodized, mirror-finish aluminum. Diffuser: 4mm thick, tempered, transparent glass resistant to thermal shock and impact (UNI-EN 12150-1: 2001). Painting: In several stages. Epoxy cataphoresis immersion for resistance to corrosion and salt spray. Second coat of finish with eco-friendly, UV-stabilized acrylic resin. Equipment: Standard disconnect switch and quick connector for rapid installation. Wiring located on a removable plate for easy maintenance. Automatic temperature control device. In the event of overheating due to abnormal environmental conditions, it lowers the luminous flux to reduce the operating temperature, ensuring operation. Resistance to mains voltage peaks. Equipment: Anti-condensation valve for air recirculation. Savings: the ability to choose the LED driving current allows for the right power to always be available for a specific design situation, also simplifying the approach to future maintenance and upgrade issues. Choosing a lower current will increase efficiency and therefore improve energy savings, while a higher current will produce more light and allow for a reduction in the number of fixtures. Latest-generation LED technology Ta-20+40°C. Photobiological risk classification: Exempt risk group according to EN62471. LED 4000K - 700mA - 12960lm - 93W - CRI 80 on request 530mA - 9720lm - 71W. Upon request: It is possible to install, on the device, a control system for the network management with a 1-10V dimming line for data reception and transmission.
