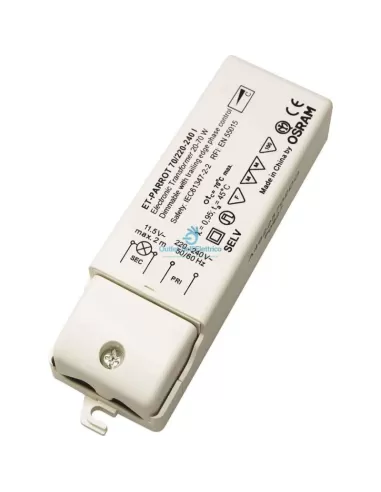

Osram ETPAR70I and parrot 70//220-240i vs50

Product advantages Minimal power loss thanks to high efficiency Protective operation throughout the entire partial load range, thus ensuring a long lamp life Application areas Effect and accent lighting Living rooms Object lighting Meeting rooms Restaurants Luminaires for furniture for recessed or surface mounting Shop lighting Event rooms Electrical data Lamp power 20…70 W Maximum output power 70 W Supply current 0.30 A Effectively Nominal voltage 220…240 V Power factor λ 0.95 Minimum Operating frequency 50 kHz Approx. Output voltage 11.9 / 12.0 V 70 W / 20 W Input voltage 198…264 V Mains frequency 50…60 Hz System power 74.00 W Efficiency in full-load 94 % Voltage range 220…240 V Max. number of ECGs with auto. from 10 to 37 Max. No. of ECGs p. automatic circuit 16 A 59 Galvanic isolation primary/secondary 4.00 kV eff Trigger current 0.45 A Dimensions and weight Length 128.0 mm Width 38.0 mm Height 31.0 mm Distance between fixing holes-length 119.0 mm Section of the cables, input side 0.75 mm² Section of the cables, output side 0.75 mm² Stripping of the input cables 12 / 6.0 mm Sheath cable / Cable Stripping of the output cables 12 / 6.0 mm Sheath cable / Cable Weight product 115.00 g Temperatures and conditions of use Ambient temperature 0…+45 °C Maximum temperature at test point T 70 °C Additional product data Shape / finish Compact Features Dimmer Falling or rising edge phase control for load variators inductive Overload protection Automatic reversible Overheating protection Automatic reversible Short circuit protection Automatic reversible Maximum length of ECG/lamp cables 2.0 m Cable type, input side H03VV-F 2x0.75 mm² Cable type, output side H03VV -F 2x0.75 mm² Dimmable Yes Setting range 0…100 % No-load test Yes Suitable for luminaires with front glass II Intended for no-load operation No Certificates, Standards, Directives Approval marks VDE / EAC Standards According to EN 61347/ According to EN 55015/According to EN 61000-3-2/According to EN 61547 Degree of protection IP20 Logistical data Basic product code 850440909000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 14- 04-2022 Primary Article Identifier 4008321111593 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database 9f0f4ed8-b0fb-47a9-81d0-d001d076723e EAN Unit Piece Dimensions Weight Volume 4008321111593 UNV Unpacked 1 128mm x 38mm x 31mm 115.00g 0.15dm³ 4008321111609 VS Shipping carton 50 290mm x 231mm x 220mm 6221.25g 14.74dm³ Product family data sheet Technical sheet ET-PARROT I User instruction Size: 2.6 MB EAC - ET-PARROT / ET-ZE User instruction 321724_ATI ET-PARROT 105/220-240 I / ATI ET-PARROT 70/220- 240 I (G+GB) Product Datasheet Dimension: 23.1 KB 504206_vde-Emc-Certificate ET-PART CERTIFIES DIMENSION: 612.3 KB 504178_EAC HT Family Certificate Dimension: 2.2 MB Halotronic et Parrot EC 3674444444444444444444 : 227.6 kB 343999_ET-PARROT FILE STP CAD data Size: 210.4 kB Product characteristics Line frequency: 50…60 Hz RI suppression: according to EN 55015 (A1: 2007)/CISPR 15, EN 55022 Mains harmonics according to the CEI EN 61000-3-2 standard Electromagnetic immunity according to the CEI EN 61547 standard Safety: in accordance with EN 61347 Protection against short circuits, overload, overtemperature: electronically reversible Electrical insulation between the primary side and the secondary side Adjustable with phase-cut dimmer up/down Ecodesign regulation information: Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centers and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
