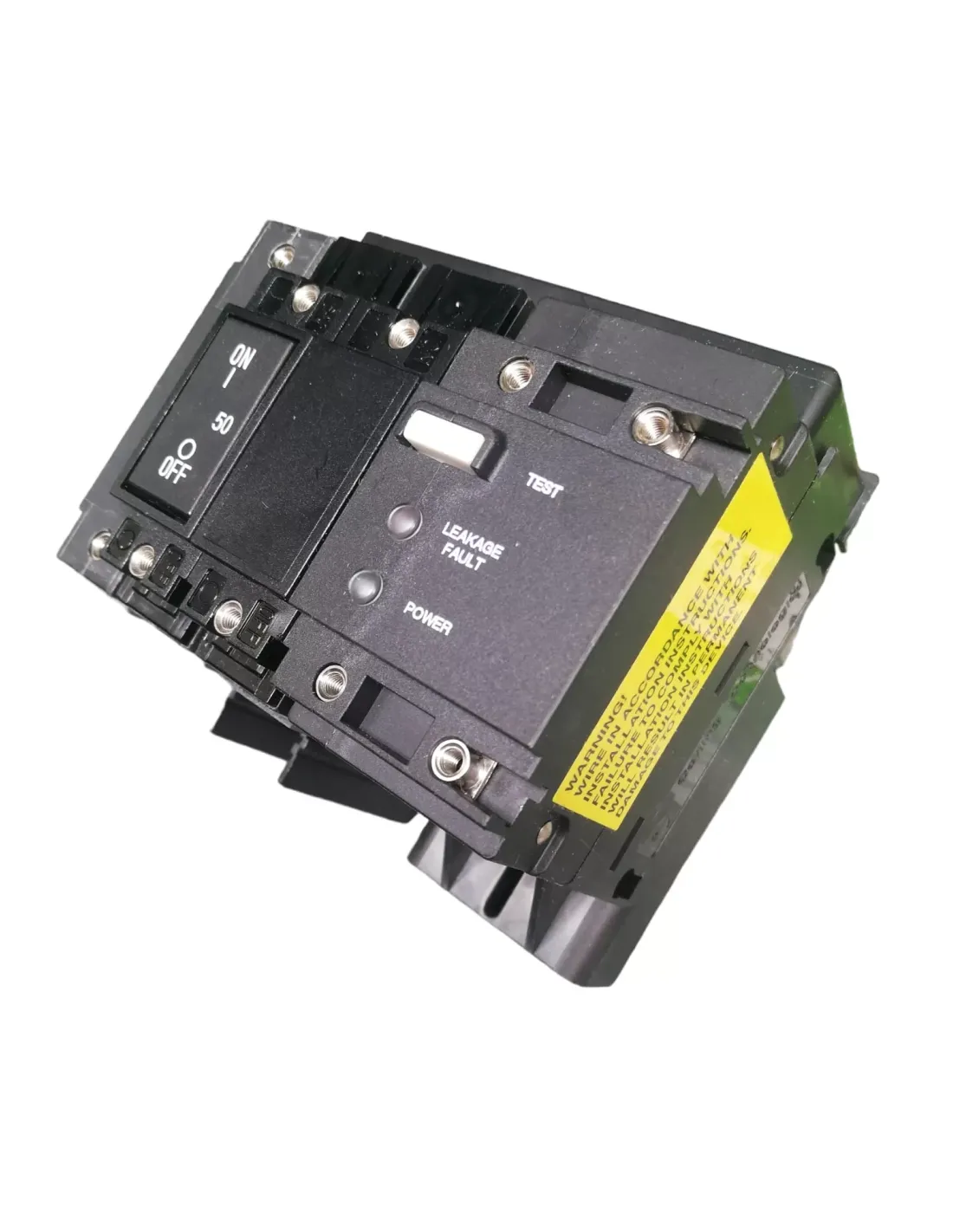

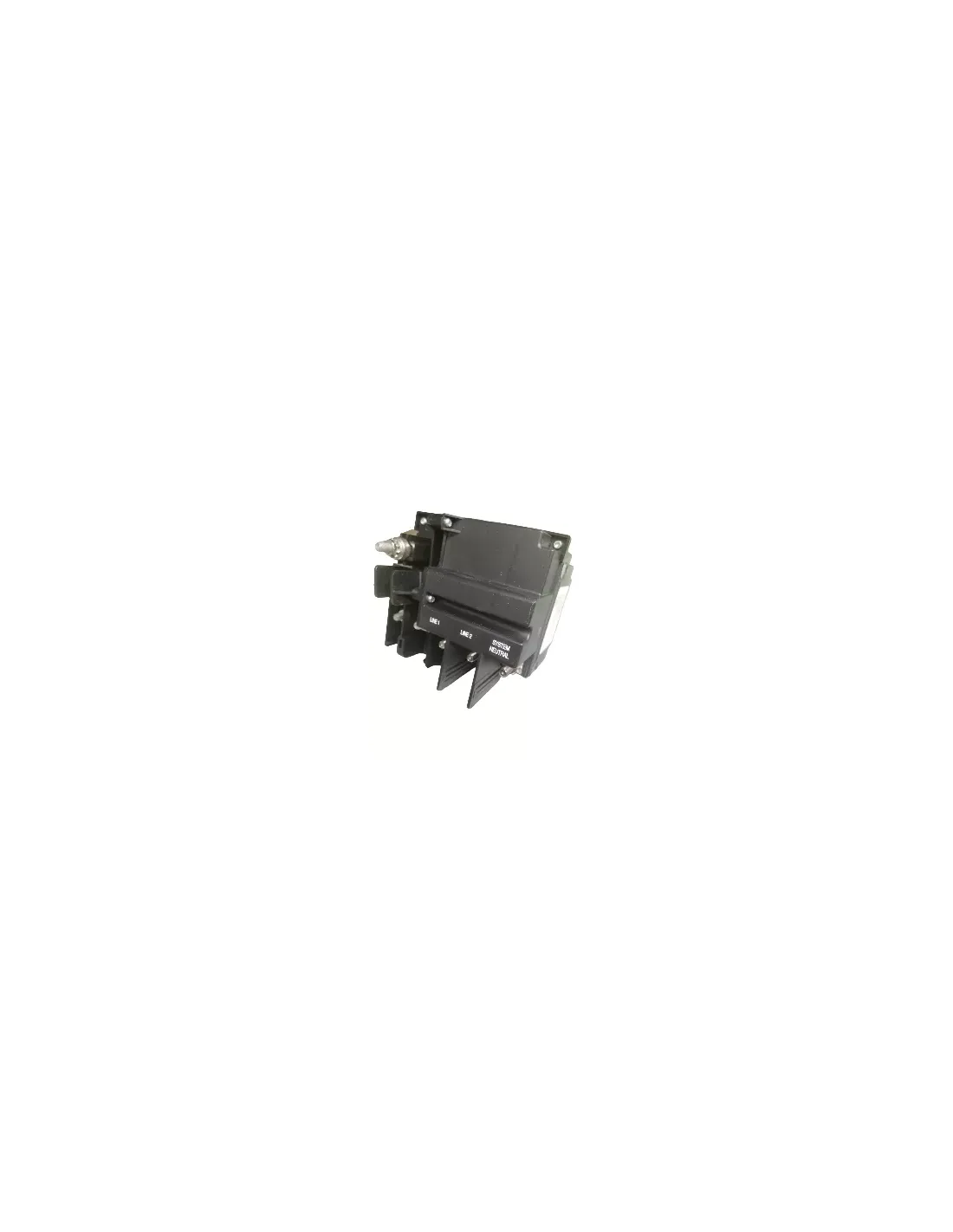

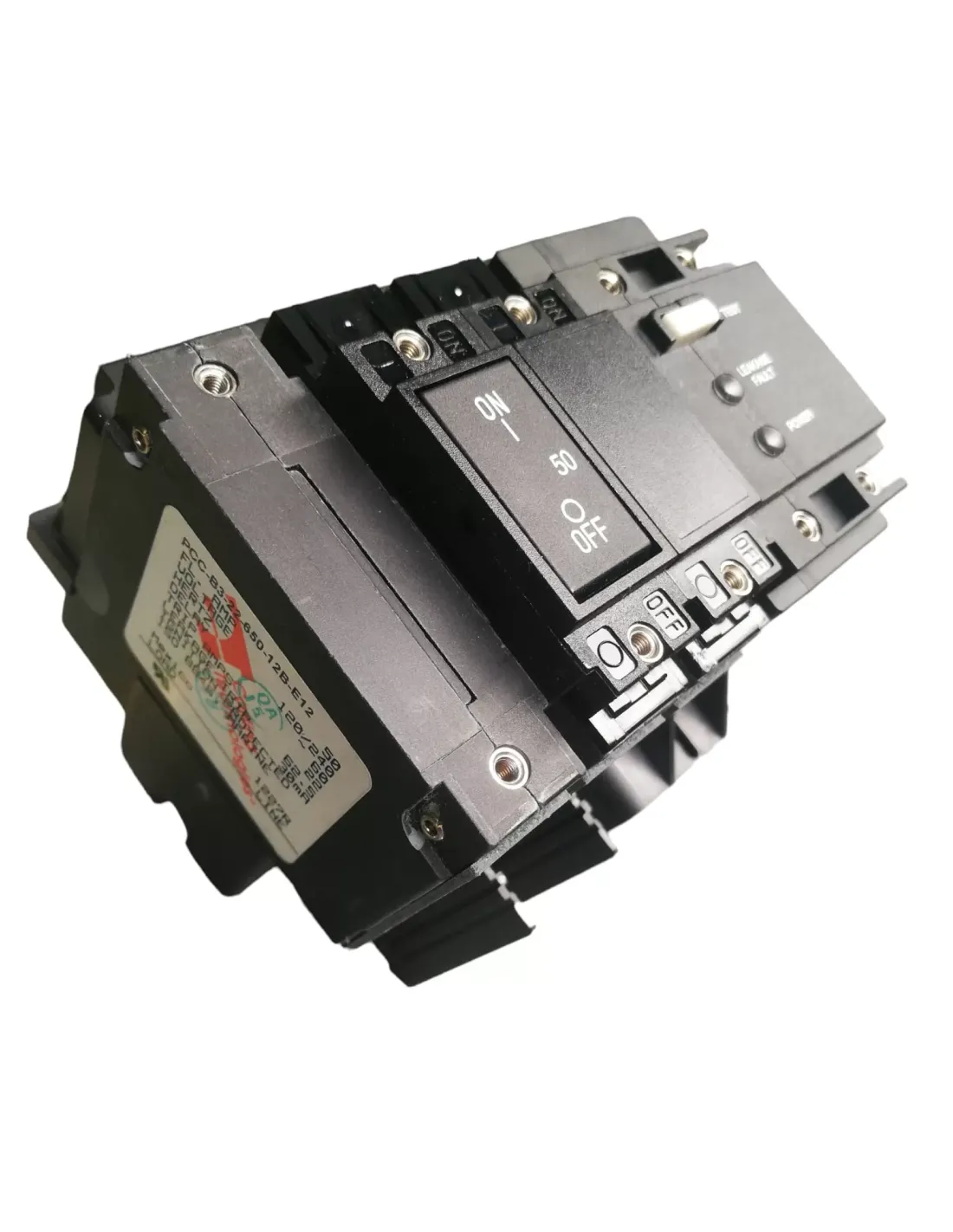

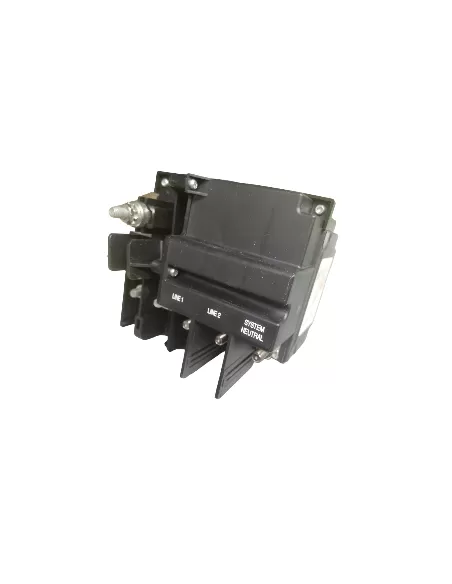

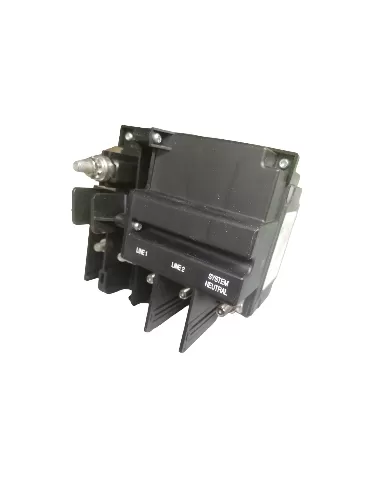

Carling Technologies PCC-B3-22-650-12B-E12 3-Pole Circuit Breaker 50A 120/240V 60Hz

ELCI C Series Main Circuit Breaker - 120/240 VAC 50 A

Characteristics:

• Provides overcurrent and leakage protection according to ABYC E-11 for entire vessel shore power protection
• Meets UL 1500 external ignition protection requirements
• It trips due to short circuit, overload or earth leakage
• Front Panel Mount: Installed in a power distribution panel

Specifications:

• Amperage: 50A
• Actuator style: flat rocker
• Poles: 3
• Protected ignition: yes
• Maximum voltage: 120V AC per pole / 240V AC per pole
• Circuit breaker type: hydraulic magnetic - tripping without tripping
• Breaking capacity: 5000 A
• Minimum operating temperature: -35 degrees C
• Maximum operating temperature: 66 degrees C
• Leakage current: 30 mA
