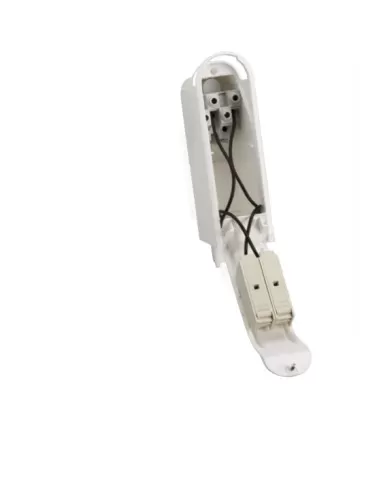

Shell 052384419 4 poles//3 ways-in//out 16mmq-deriv 4mmq-1 holder ch8

Materials Container moulded in self-extinguishing V2 polypropylene, natural colour Insulating base moulded in self-extinguishing VO 0.75 mm (UL-94) and non-tracing CTI 600 polyamide 6, natural colour (according to IEC 112) Terminals for backbone connection in brass (UNI EN 12165) Connection bars with rectangular section (backbone-branche connection) in brass (UNI EN 12165) Plates in AISI 304 stainless steel for clamping the branch cable Fuse hooking clamps in Ot 58 (UNI 4892 – EN 1652) with elastic spring Base and cover moulded in self-extinguishing VO (UL-94) glass fibre reinforced polyamide resin Features Four-pole terminal block with 3 ways per pole Max. connection capacity for 2 cables (input/output) of 16 mm2 Conductor clamping on backbone with AISI 304 stainless steel screws (hexagonal recessed head) Rated voltage 450 V; max current 63 A Max connection capacity of 2 cables of 4 mm2 Screws for tightening plates on branch in stainless steel X2CrNi 18 09 with cylindrical head with hexagonal recessed head Switchable fuse holder for cartridge fuses dim 8.5x31.5 – 380 V - max 10 A Rated voltage 450 V For recessed installation on poles minimum diameter 101 mm (relief at the height of the slot) with 45x186 mm slot with semi-round heads Class II container (double insulation) according to CEI 64-8//4 Degree of protection On the perimeter of the cover IP 43, in the cable entry area IP23B (according to CEI EN 60529 standards), IK 08 according to CEI EN 62262
