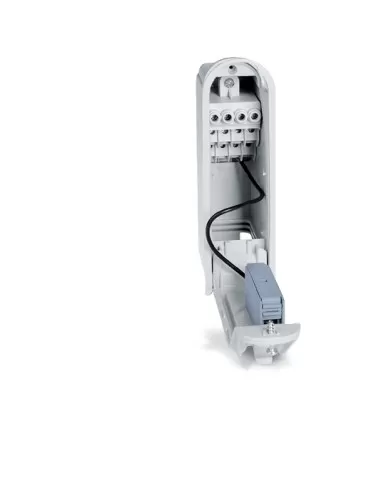

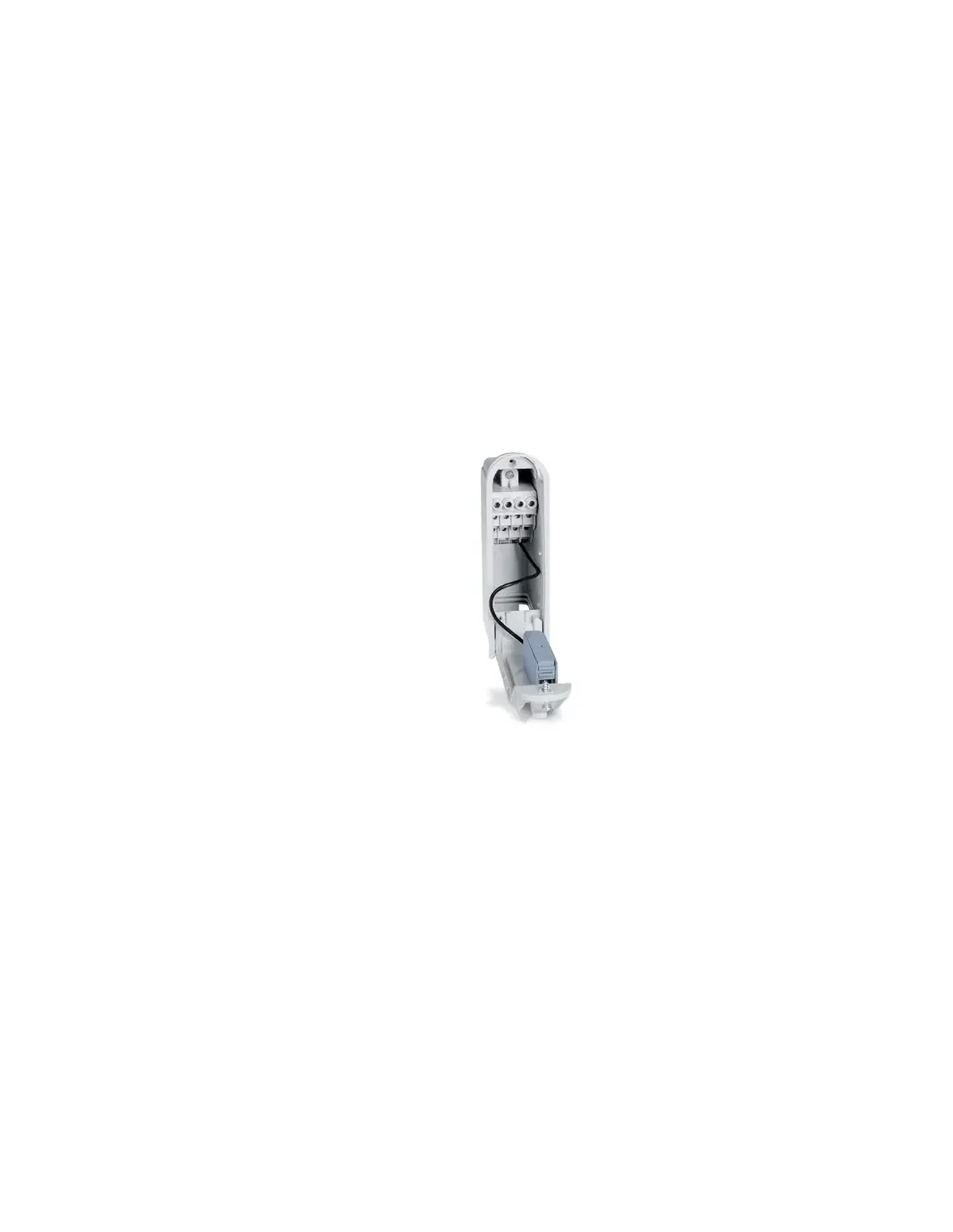

Shell 052394418 4 poles//3 ways-in//out 16mmq-deriv 4mmq-1f holder (quadripole cables)

Materials Container moulded in self-extinguishing V2 polyamide, natural colour Insulating base moulded in self-extinguishing VO 0.75 mm (UL-94) and non-tracing CTI 600 polyamide, natural colour Terminals in Ot 58 (UNI 5705) with 3 ways per pole Base and cover moulded in self-extinguishing VO (UL-94) glass fibre reinforced polyamide resin Features Independent tightening of the conductors with AISI 304 stainless steel screws (recessed hexagonal socket) Rated voltage 450 V; max current 63 A Switchable fuse holder for cartridge fuses dim 8.5x31.5 – 380 V - max 10 A Nominal voltage 500 v Fuse hooking clamps in Ot 58 (UNI 5705) with elastic spring For recessed mounting on poles minimum diameter 101 mm (relief at the height of the slot) with 45x186 mm slot with semi-round heads Class II container (double insulation) according to CEI 64-8//4 Degree of protection On the perimeter of the cover IP 43, in the cable entry area IP23B (according to CEI EN 60529 standards), IK 08 according to CEI EN 62262
