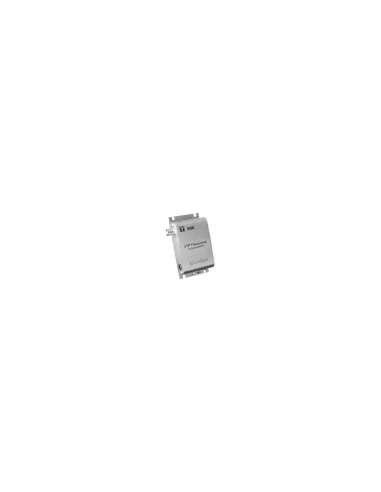

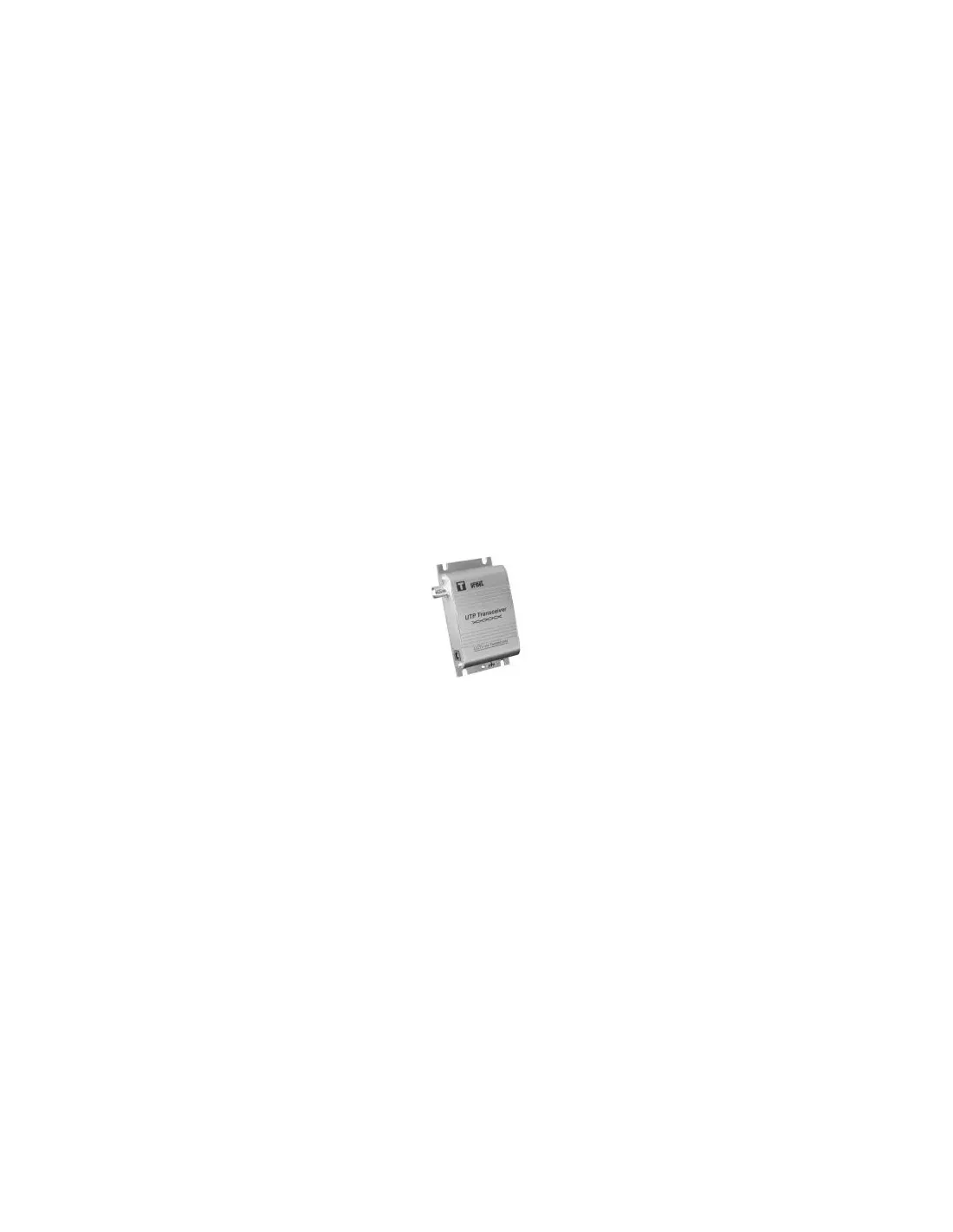

Urmet 1092//302 balun 1ch active tx

The Video Balun active transmitter (with signal amplification) allows the impedance adaptation between coaxial cable and UTP cable and is particularly suitable for the transmission of a video signal, black/white or colour, on UTP (Unshielded Twisted Pair) cable when the distances exceed 1200m. It can be used with the active receivers 1092/303, 1090/304 or with the 1092/316. Compact dimensions for easy connection to video management devices, monitors and cameras. 1 BNC (female) video input and terminal block for connection with UTP CAT5 cable. Extremely easy to use. Adjustment of the amplification gain level of the transmission signal on three levels. Double impedance and noise filter to ensure greater safety against interference. Provision for wall mounting. Power supply 12Vdc - max 80 mA (power supply not included). Additional Features (bmcat) Mounting type: Other Width: 110 mm Height: 80 mm Depth: 80 mm Number of inputs: 1 Number of outputs: 1
