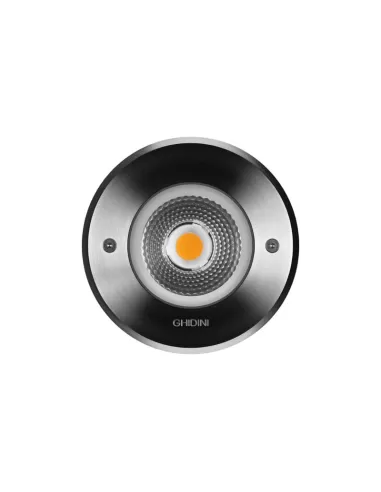

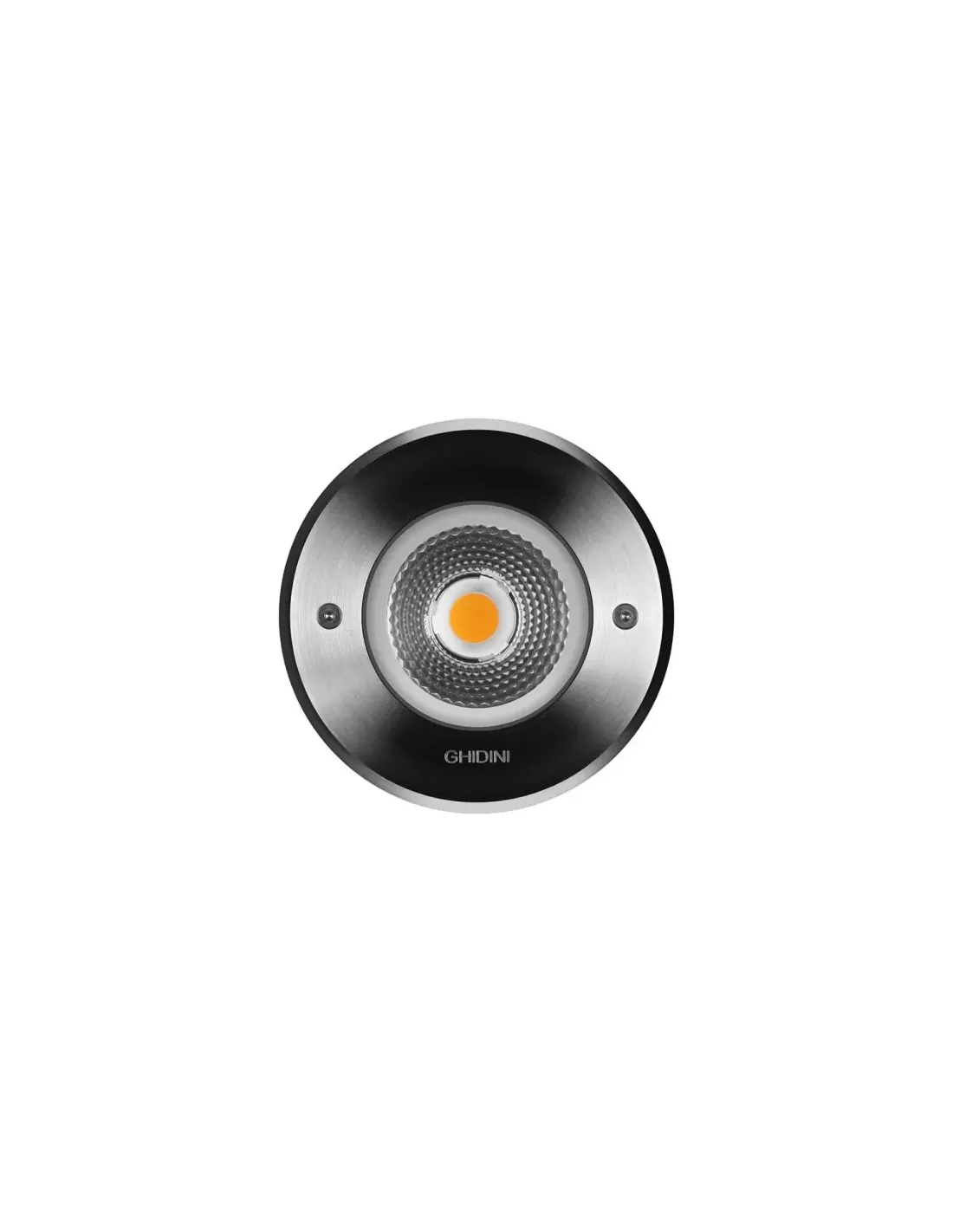

Neo 135 Design By Ghidini Design Series of recessed ground lighting fixtures Available in various sizes, they are designed for the lighting of facades, small, medium and tall trees, shrubs, columns and other architectural elements thanks to a wide availability of optics and powers The construction of the body and the closing ring of the diffuser are in aluminum alloy with high resistance to oxidation, subjected to treatment with nano-bonderite protected with textured polyester powder painting, making the product resistant to atmospheric agents and to UV rays, guaranteeing maximum protection over the years. The silicone gaskets ensure maximum sealing in all operating and temperature conditions. The hyper-transparent tempered soda-lime glass diffuser, to guarantee maximum light transmittance, is finished with a silk-screened edge The external finishing frame and the screws are made of stainless steel. As an alternative to the stainless steel frame, the natural bronze frame is also available. The product is equipped with the special Ghidini water-lock system which prevents humidity from being sucked from the power cable caused by the alternation of on and off cycles. The product is installed with a polypropylene casing which prevents contact of the appliance with the ground and allows for the necessary space for wiring. The product can be driven on at low speeds (max 15/ /kmh) in areas not permitted to traffic Not suitable for installation in swimming pools or fountains General information Area of application Shrubs and hedges, Columns, Facades, Monuments & Statues, Walls, Walls, Construction & Dimensional Plans Construction material Die-cast aluminum EN AB 44100 with high resistance to oxidation External screws A4-70 stainless steel treated in a water-repellent lubricant solution with high antioxidant power External diameter [mm] 135 Height // Projection [mm] 2 Recessed housing Polypropylene - to be ordered separately Recess opening shape Round Recess opening diameter [mm] 125 Recess depth [mm] 233 Drainage 300mm of gravel or drainage material Alternatively, drainage pipe system Static pressure [Kg] 2500 Electrical Description 1 x 12 W LED 3000 K IRC 90 1550 lm Power supply mode 220-240 V // 50-60 Hz Number of heads 1 Number of ignition circuits 1 Power supply position Integrated Power supply type Electronic Dimming type Not dimmable Cable entry Brass cable gland M20 Ø 7//13 mm Cable type H07RN8-F 3x1mm2 Cable length [m] 0 5 Acqua-stop system Included Emergency Not available Optics Beam angle [°] 24° Light distribution Symmetrical Beam directionality Non-adjustable Diffuser material Tempered sodium lime glass 12mm Diffuser finish Transparent Diffuser temperature [°C] 40 °C Reflector material Thermopolymer with aluminum deposited in high vacuum Reflector finish Aluminum Light source Light source included Operating ambient temperature range [°C] -20 °C ÷ 35 °C
