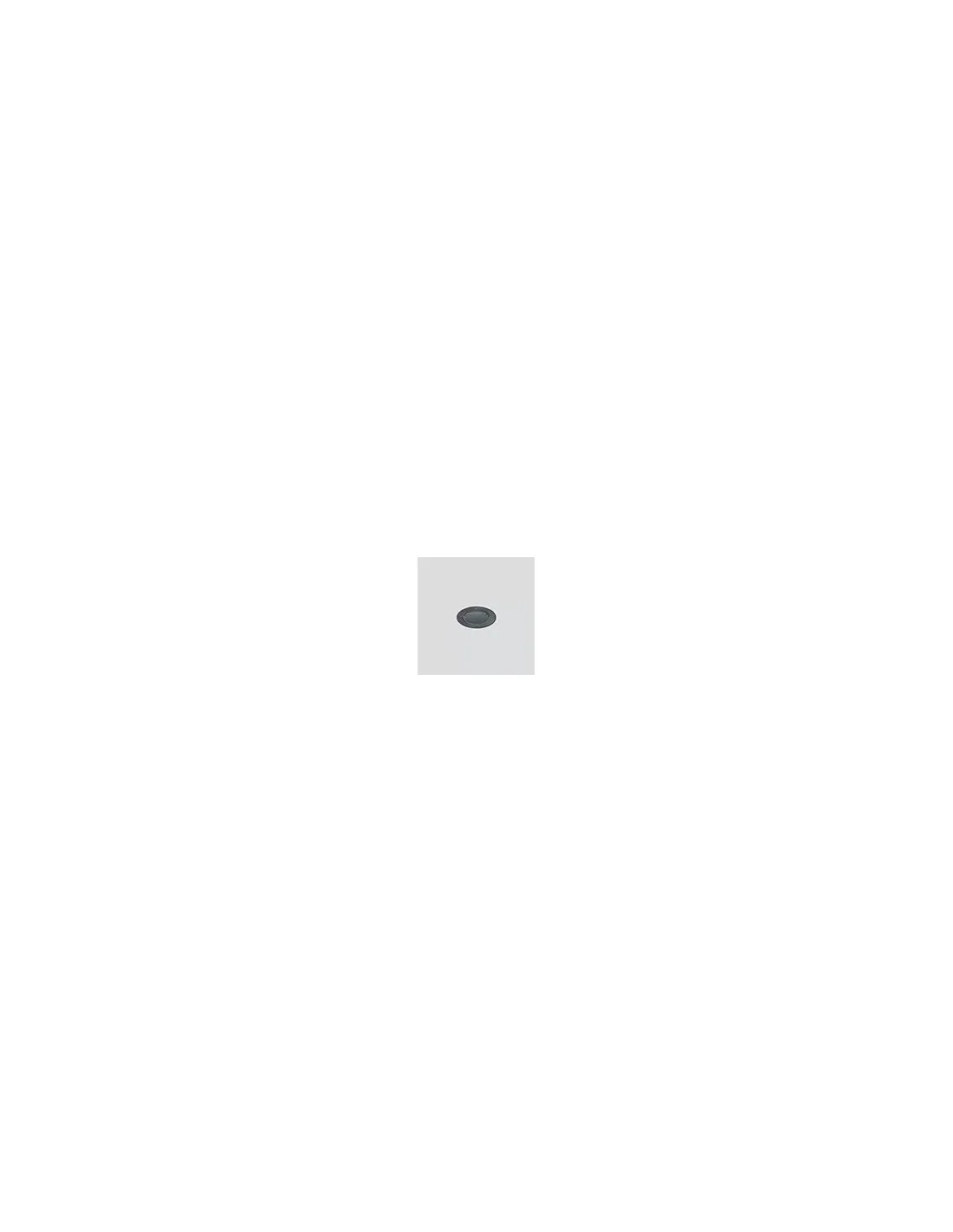

Simes s 4448 09 miniflat steplight 35w gu5,3 ip67 black d 152mm

-TYPE Drive-over luminaire for ground installation Depth 340mm Protection degree IP 67 -MATERIAL CHARACTERISTICS Body in Copper Free EN AB-44100 primary die-cast aluminum with high resistance to oxidation Tumbling process to prepare for the painting phase Steel screws A4 INOX with high molybdenum content 2.5-3% Annealed silicone gaskets Extra-resistant painting carried out in 3 phases: 1) BONDERITE treatment with chemical protection of metal-free fluozirconic material containing ceramic nanoparticles which create a cohesive, inorganic, layer of high density 2) PRE-POLYMERIZATION cycle with application of the epoxy primer with characteristics of overpainting on the device and high resistance to oxidation thanks to the presence of zinc 3) POLYMERIZATION cycle with the application of bonderized polyester powder with high resistance characteristics resistance to UV rays and atmospheric agents, with resistance to the salt spray test of 1500h Mechanical resistance of the glass IK 10 Maximum load 3500 Kg - LIGHTING PERFORMANCE 12 mm thick tempered transparent protective glass Light source, with tilting lamp position ±30° Grille anti-glare die-cast aluminum installed under the diffuser Efficiency 38% - LOW SURFACE TEMPERATURE Glass temperature 120°C (Ta 15°C) - FORMWORK FOR INSTALLATION AND MAINTENANCE Polycarbonate formwork designed for cable entry which allows you to: 1) carry out easy wiring; 2) house the quick connector; 3) easily remove the appliance for maintenance -WIRING Length of H07RN-F type power cable closed via the PG 13 5 cable gland (Ø 6÷12 mm), sealed with two-component epoxy resin and internally wired with the cables covered with protective silicone sheaths glass-fitting Change headlamp without completely extracting the luminaire Insulation class CLASS I Available colors BLACK (code 09) Weight 3 18 Kg Glow Wire test 750°C Luminaires supplied complete with lamp
