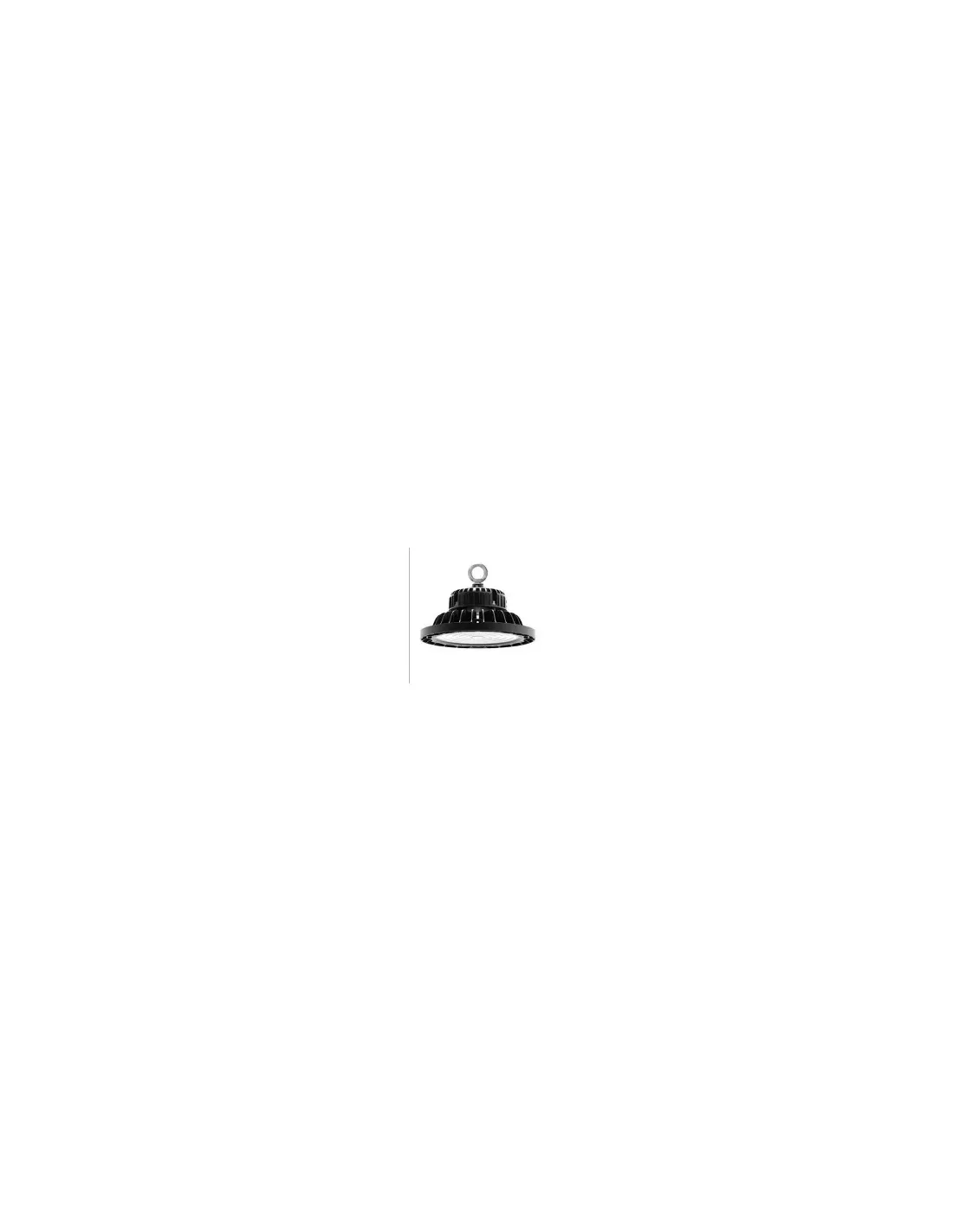

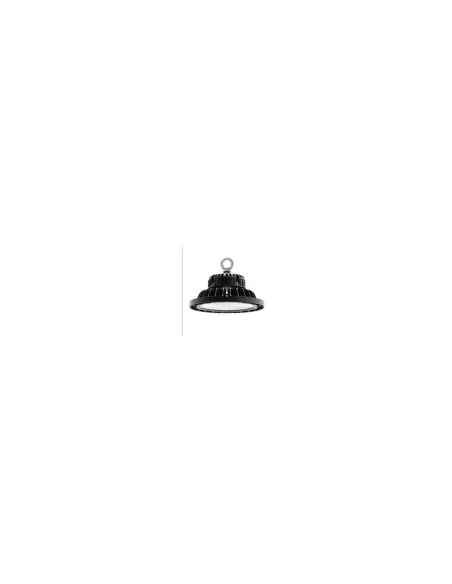

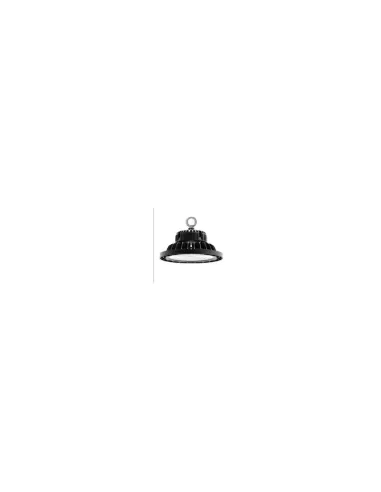

Mareco luce 0800382n aries 150w 4000k 90° aperture black

APPLICATION FAMILY - CUT-OFF luminaire for industrial use High bay (IP65) MATERIAL CHARACTERISTICS - Die-cast aluminium body (ADC12) subjected to anodizing treatment and then painted - Polyester powder coating with special pre-treatment for outdoor use (Phosphochromation) to ensure high resistance to atmospheric agents - Transparent PC (polycarbonate) diffuser with 90° beam opening - Stainless steel eyebolt with circular eye M10 with internal diameter 25mm - Silicone gaskets - A2 stainless steel screws COLOUR - Black WEIGHT - 2.9Kg (109W) - 3.9Kg (166 5W) LIGHTING CHARACTERISTICS - Fixed position LED light source - Rotosymmetrical illuminance - n°176 SMD 3030 Nichia 3030 NF2L757GRT-V1 LEDs for version 109W - n°256 SMD 3030 Nichia 3030 NF2L757GRT-V1 LEDs for 166 5W version - Instant switch-on at 100% luminous flux - Transparent PMMA (acrylic) lens resistant to UV rays WIRING CHARACTERISTICS - Input voltage: 90-305V, 50//60Hz - Dimmable 0-10V driver protected against short circuits, overcurrents, overvoltages, overtemperatures INSTALLATION AND ORDINARY MAINTENANCE CHARACTERISTICS - Suspension fixing using the eyebolt supplied - Power cable for connection to the mains 3-pole SJTW 18AWG length 300mm - Power cable for dimming 2-pole SVT 18AWG length 300mm - Ordinary maintenance not required DIMENSIONAL CHARACTERISTICS - Ø260x172mm (109W) - Ø300x190mm (166 5W) OPTIONAL ACCESSORIES TO BE ORDERED SEPARATELY: - Wall fixing bracket for 109W version Cod 0800 0000 - Wall fixing bracket for 166 5W version Cod 0800 0001 GENERAL SPECIFICATIONS • LED type: 3030 NICHIA • Beam angle: 90° • Storage temperature: -40°C ~ 85°C • Operating temperature: -40°C ~ 45°C • MacAdam step: 5 • Led lifetime: L90//B50 52Kh - Tc 85°C // L80//B50 60Kh - Tc 85°C • Driver lifetime: 50Kh • Power factor: 0 95 • Warranty: 5 years SPECIFICATIONS 4000K - 109W
