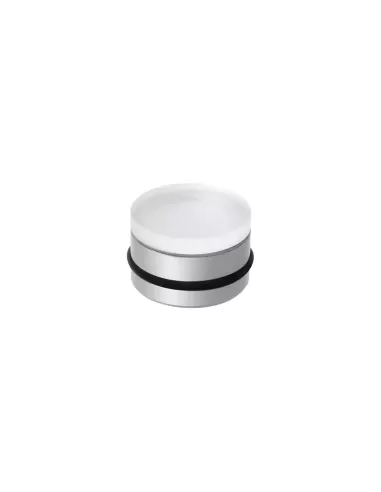

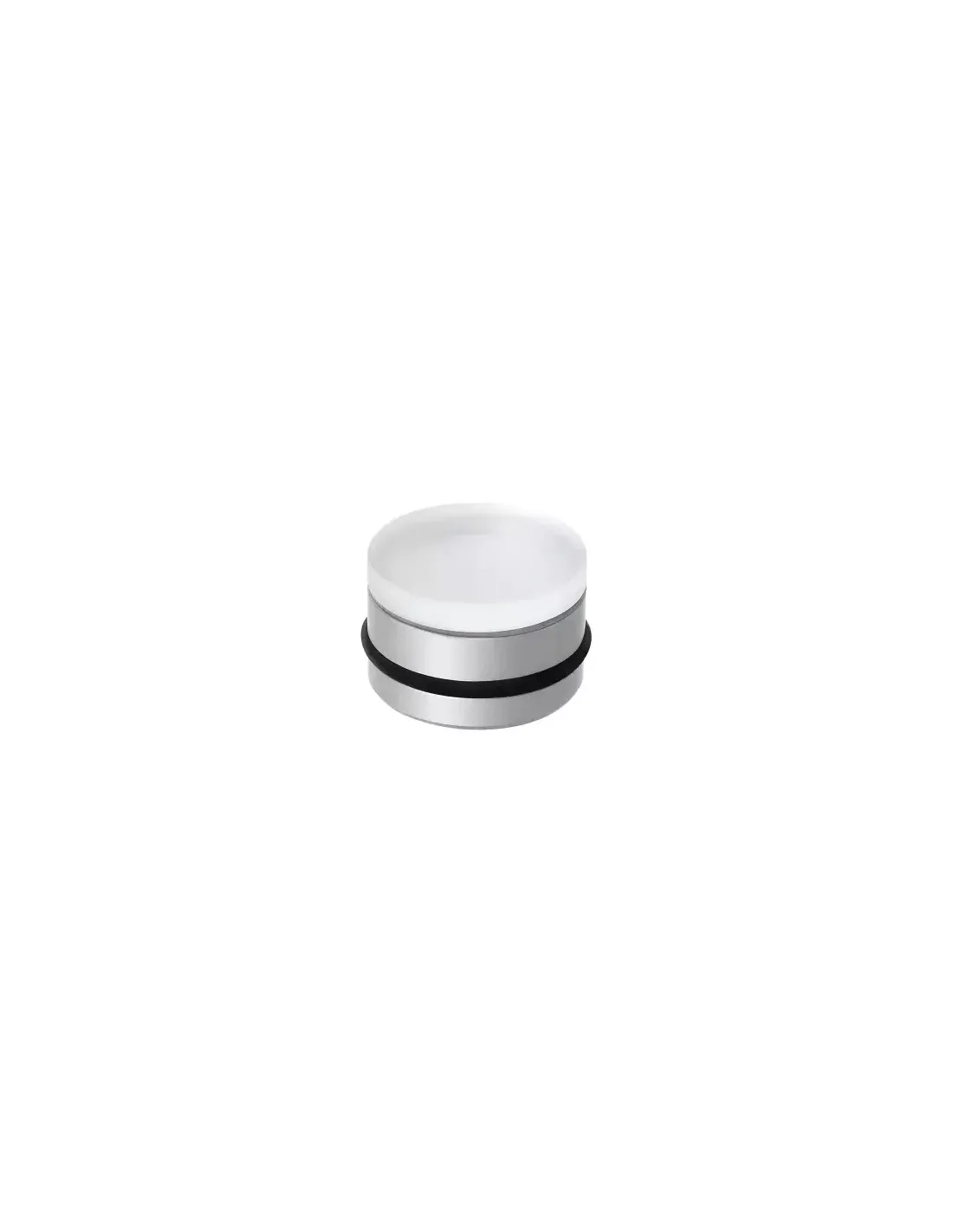

L&L GA26001DV Drop 2 6 2W 24VDC Blue Glass Diffuser

GOCCIA 2 6 Outdoor recessed outdoor recessed - 2W 24Vdc - ø45 mm Goccia 2 6 code: GA26001DV outdoor recessed drive-over up to 500 kg recessed (wall, floor) Power consumption: 2W Power supply: 24Vdc Source flux: 204 lm (3000K) Emitted flux: 74 lm (3000K) 1 power LED, 50000h L90 B10 (Ta 25°C) LED color: blue Optics: diffused Body material: anodized aluminum body Screen material: sandblasted extra-clear glass screen Power supply not included 1.5 m neoprene cable H05RN-F 2x0.35//0.75 Ø6.3 mm Protection rating: IP67 Resistance rating: IK10 on request housing available in different sizes the standard one; Casambi management and control via Casambi app with dedicated electronics Protection systems: IPS (Intelligent Protection System) protects the lighting fixtures from water infiltrations that may occur in the event of incorrect connections between the cables for outdoor and underwater applications This innovation patented by L&L also guarantees electrical protection from polarity inversion, hotplug, ESD and overvoltages that may occur in the event of malfunctions of the electrical system Operating temperature: -20°C — 45°C Maximum fixture temperature: 40°C (Ta 25°C) Glow wire test: 960° Photobiological safety: risk group 1 according to EN 62471:2006 Insulation class: class III Weight: 200 g Dimensions: Ø45x46 mm Technical volume for dissipation: Ø45x35 mm Energy consumption class: A // A // A (integrated LED module) in accordance with EU 874//2012 Accessories: WC0400 Formwork Tested and approved through EOL test (End Of Line test) with functional test and verification of electrical absorption parameters
