L&l tu33105db turis3 3 15w 230vac 30k d white

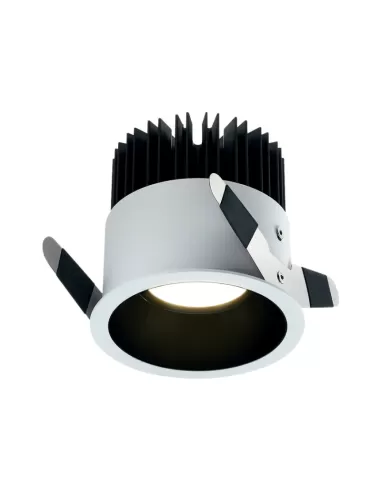

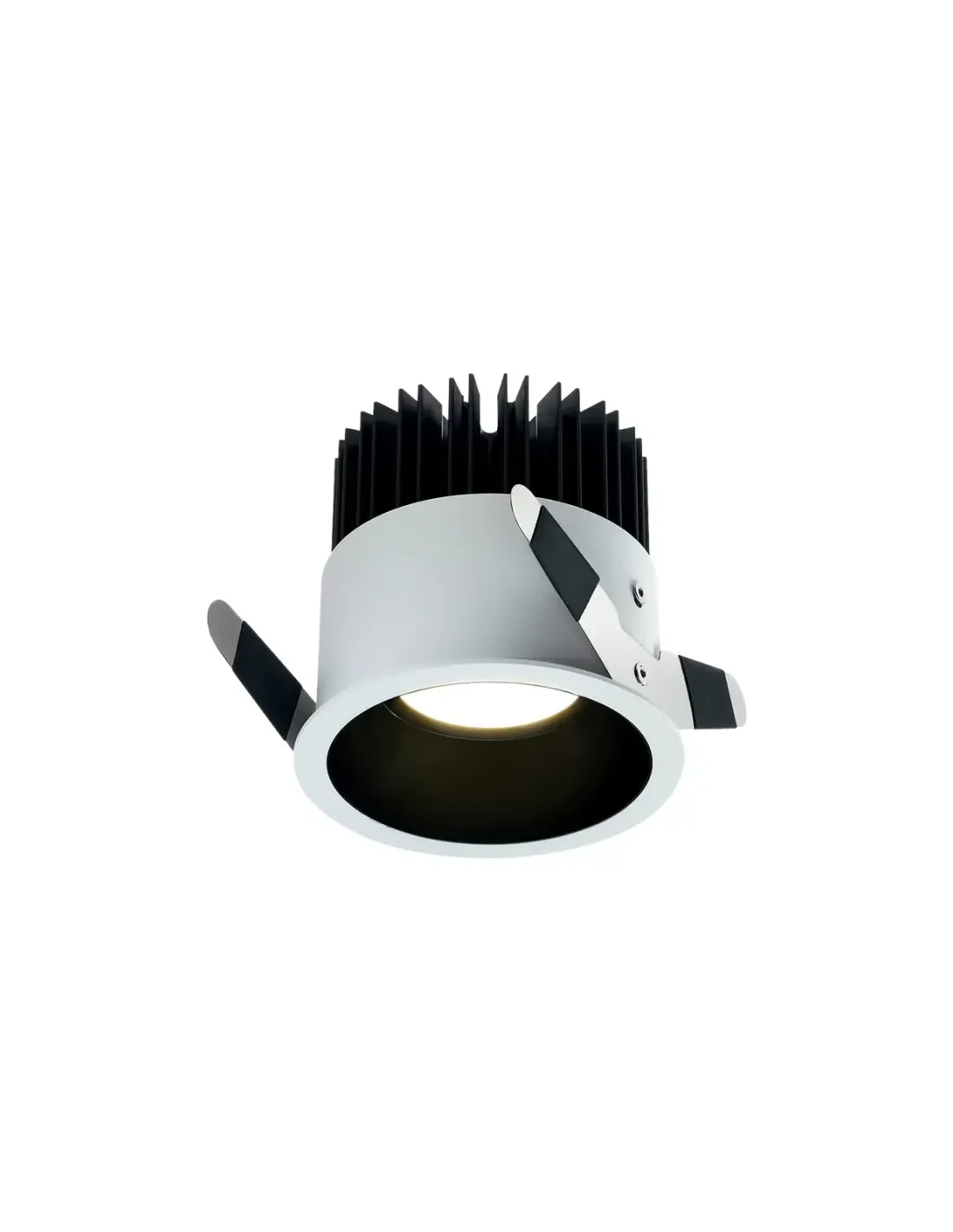

TURIS 3 3 Indoor recessed downlight Indoor recessed downlight - 11W//15W 230Vac - ø100 mm - recessed optics Turis 3 3 code: TU33105DB indoor recessed downlight (ceiling) Power consumption: 15W Power supply: 230Vac Source flux: 1870 lm (3000K, 15W) Emitted flux: 1160 lm (3000K, 15W) 6 power LEDs, 3 step MacAdam, 50000h L80 B10 (Ta 25°C) LED colour: 3000K Optics: diffused CRI Colour rendering index: 90 Body material: black anodised aluminium body, steel ring Finishes: white (RAL 9003) RAL finish on request Screen material: transparent single-satin plexiglass screen Screen thickness: 100 mm recessed surface: min 5 mm, max 25 mm power supply included including 0.30 m cable Management: ON//OFF Degree of protection: IP40 version with Casambi management available on request, controllable via Casambi app Operating temperature: 0°C — 45°C Insulation class: class II Weight: 670 g Dimensions: Ø100x92 mm Recessed hole: Ø90 mm Technical volume for dissipation: Ø190x160 mm Energy consumption class: A // A // A (integrated LED module) in accordance with EU 874//2012 Accessories: WC3106 Formwork for masonry Tested and approved through EOL test (End Of Line test) with functional test and verification of electrical absorption parameters
