L&l cb12121mai bright 1 2 2w 500ma blue 21o stainless steel

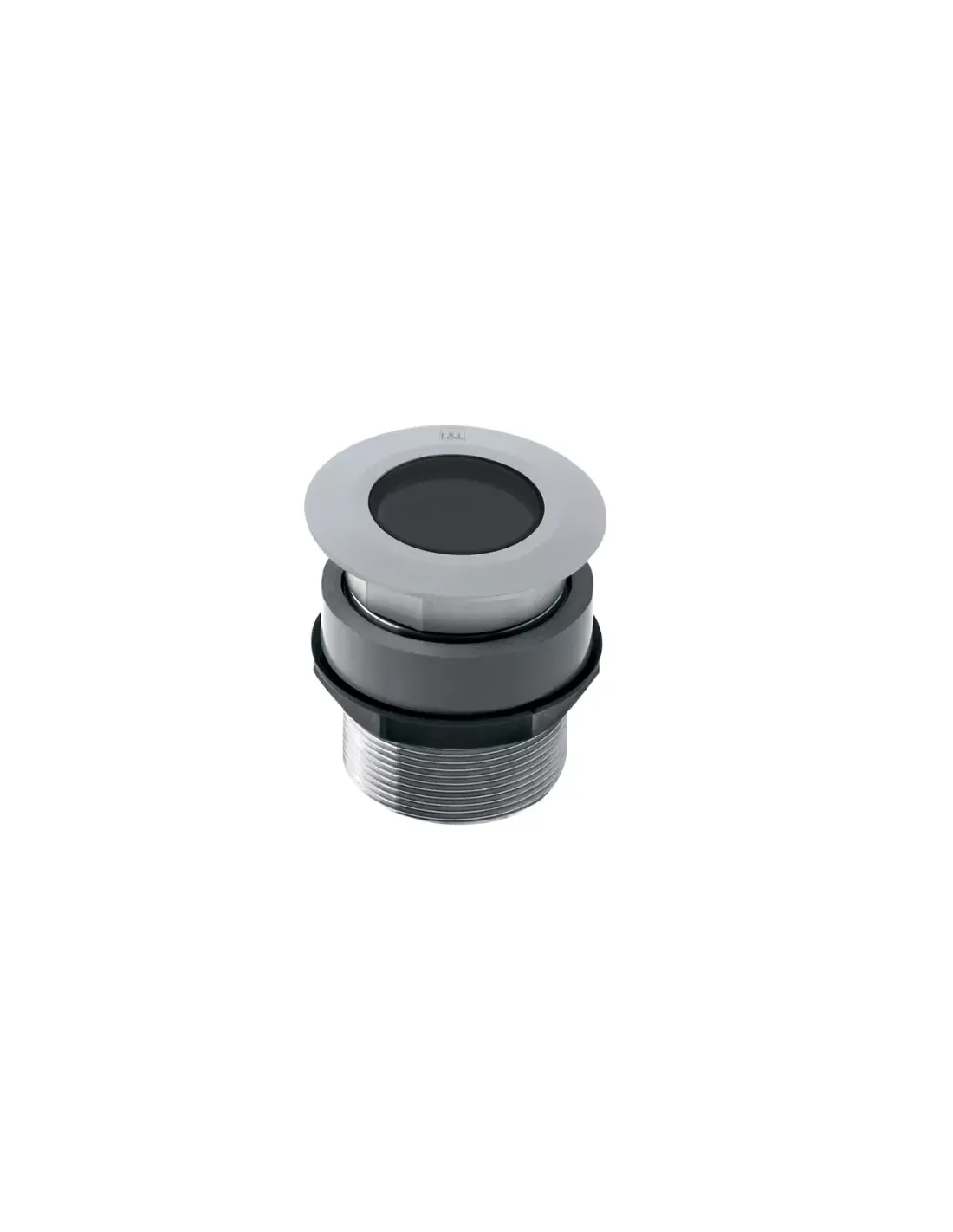

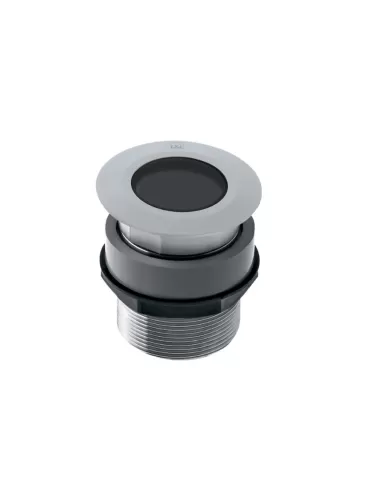

Bright 1 2 code: CB12121MAI outdoor recessed light (not suitable for immersion in swimming pools and fountains) walkable recessed on slab, thickness: min 0 mm, max 30 mm Power consumption: max 2W Power supply: max 500mA Source flux: 195 lm (3000K, 500mA) Emitted flux: 127 lm (3000K, 500mA, 21°) 1 power LED, 2 step MacAdam, 60000h L90 B10 (Ta 25°C) LED color: blue Optics: 21° Body material: body and ring in AISI316L stainless steel RAL finish on request Screen material: screen in transparent tempered extra-clear glass power supply not included Connection: in series including 1.5 m neoprene cable H05RN-F 2x0.35//0.75 Ø6.3 mm Management: dimming available via dimmable power supply Degree of protection: IP65, IP68 Degree of resistance: IK10 Casambi management and control via Casambi app with dedicated electronics Protection systems: IPS (Intelligent Protection System) protects the lighting fixtures from water infiltrations that may occur in the event of incorrect connections between the cables for outdoor and underwater applications This innovation patented by L&L also guarantees electrical protection from polarity inversion, hotplug, ESD and overvoltages that may occur in the event of malfunctions of the electrical system Operating temperature: -20°C — 45°C Maximum device temperature: 50°C (Ta 25°C) Glow wire test: 960° Photobiological safety: compliant with IEC TR 62778:2014 Insulation class: class III Weight: 200 g Dimensions: Ø35x52 mm Recessed hole: Ø30 mm Technical volume for dissipation: Ø80x100 mm Energy consumption class: A // A // A (integrated LED module) in accordance with EU 874//2012 Accessories: WE0500A Semi-diffusing screen, half transparent and half satin, WE0500S Anti-glare screen, half transparent and half black silk-screened, WH0101 Honeycomb Tested and approved through EOL test (End Of Line test) with functional test and verification of the electrical absorption parameters
