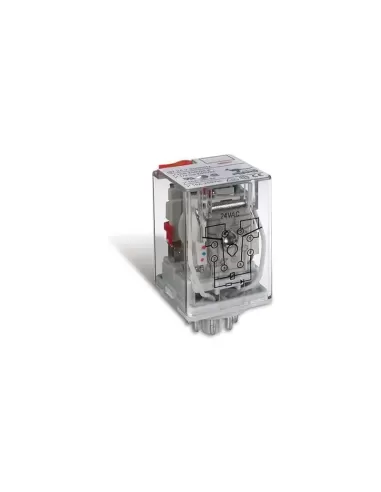

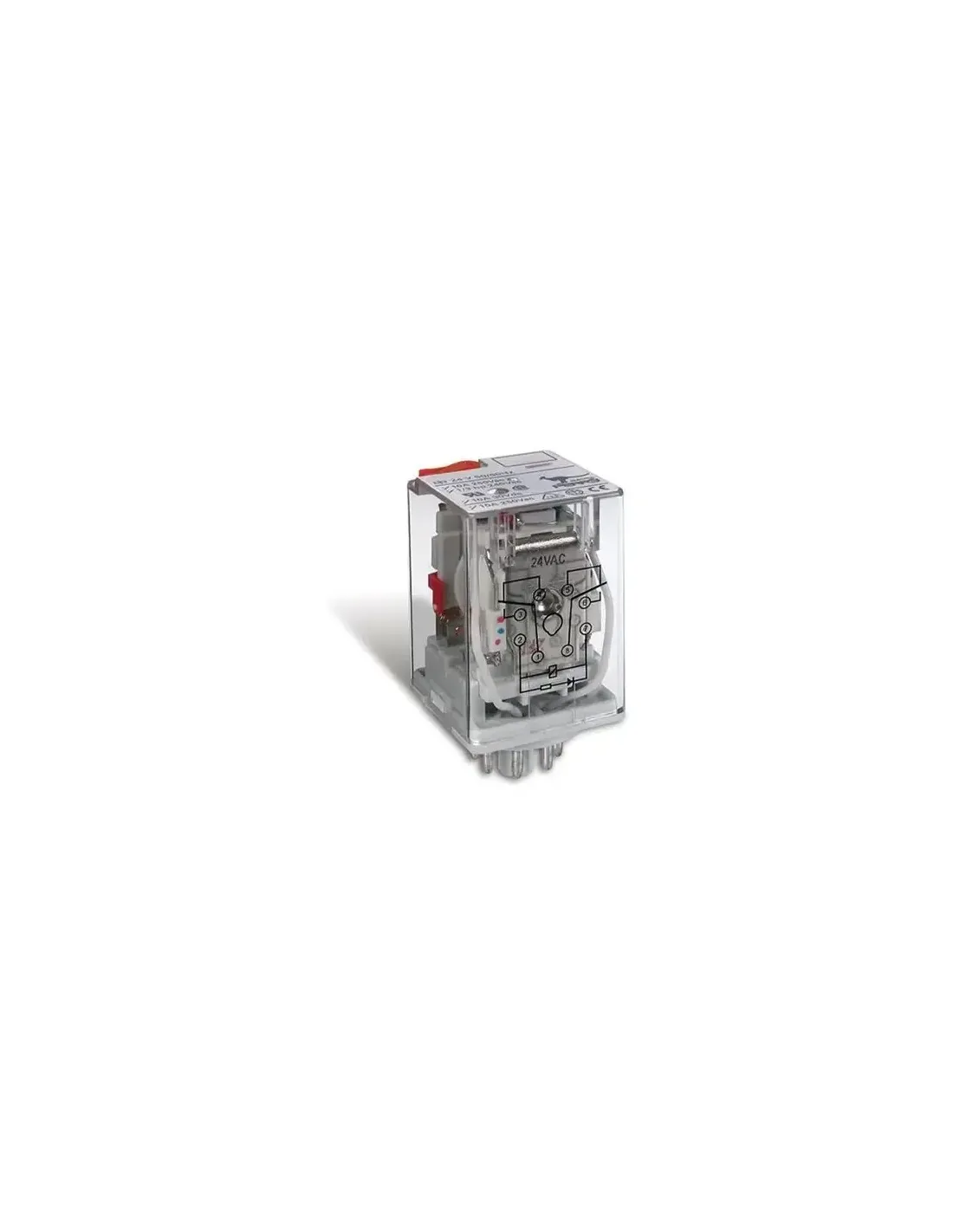

Perry electric 1re080248dc relay octal 2 ct 10a 250v 48vdc

1RE 080248DC Industrial relay OCTAL 48V dc Power supply 48V dc 2 changeover contacts 10A//250V Industrial relay OCTAL 48V dc Power supply 48V dc 2 changeover contacts 10A//250V FEATURES Main data Type OCTAL // UNDECAL Supply voltage 12 - 24 - 48 - 60V dc (DC model) 12 - 24 - 48 - 110 - 230V ac (CC model) Rated load 10A//250Vc a - 30V dc Load in AC1 12A//250Vc a - 30V dc Max switching power 2500VA // 300W Max switching voltage 250Vc a // 30V dc Motor power 1//3 HP a 240V AC Contact material AG - CdO Description Use tertiary // industrial Output type free changeover contacts Available contacts 2 changeover (2 x ) OCTAL 3 changeover (3 x ) UNDECAL Dimensions (W x D x H) mm 21.5 x 28 x 36 Weight 37 g General data Installation type on socket Degree of protection (IP) IP20 Electrical life (operations) 100 000 Mechanical life (operations) 10 000 000 Insulation resistance (500 V dc ) 1 000 MO Dielectric strength (open contacts) 750 V ac Dielectric strength (contacts // coil) 3 750 V ac Minimum load 100 mA // 5 V dc Power dissipation 1 5 W (DC mod) 2 5 VA (AC mod) Operating temperature limits from -55 to 70°C Response time (at rated voltage) 25 msec max Release time (at rated voltage) 25 msec max Ambient temperature -55 ÷ 70°C Vibration resistance 10 ÷ 55 Hz 1 5 mm Shock resistance (functional) 100 m//sec2 //10 g Shock resistance (destructive) 1 000 m//sec2 //100 g Humidity 35 % ÷ 95 % Construction dust cover Rated insulation voltage 250 V Rated impulse withstand voltage 2.2 KV Pollution degree 2 Overvoltage category III
