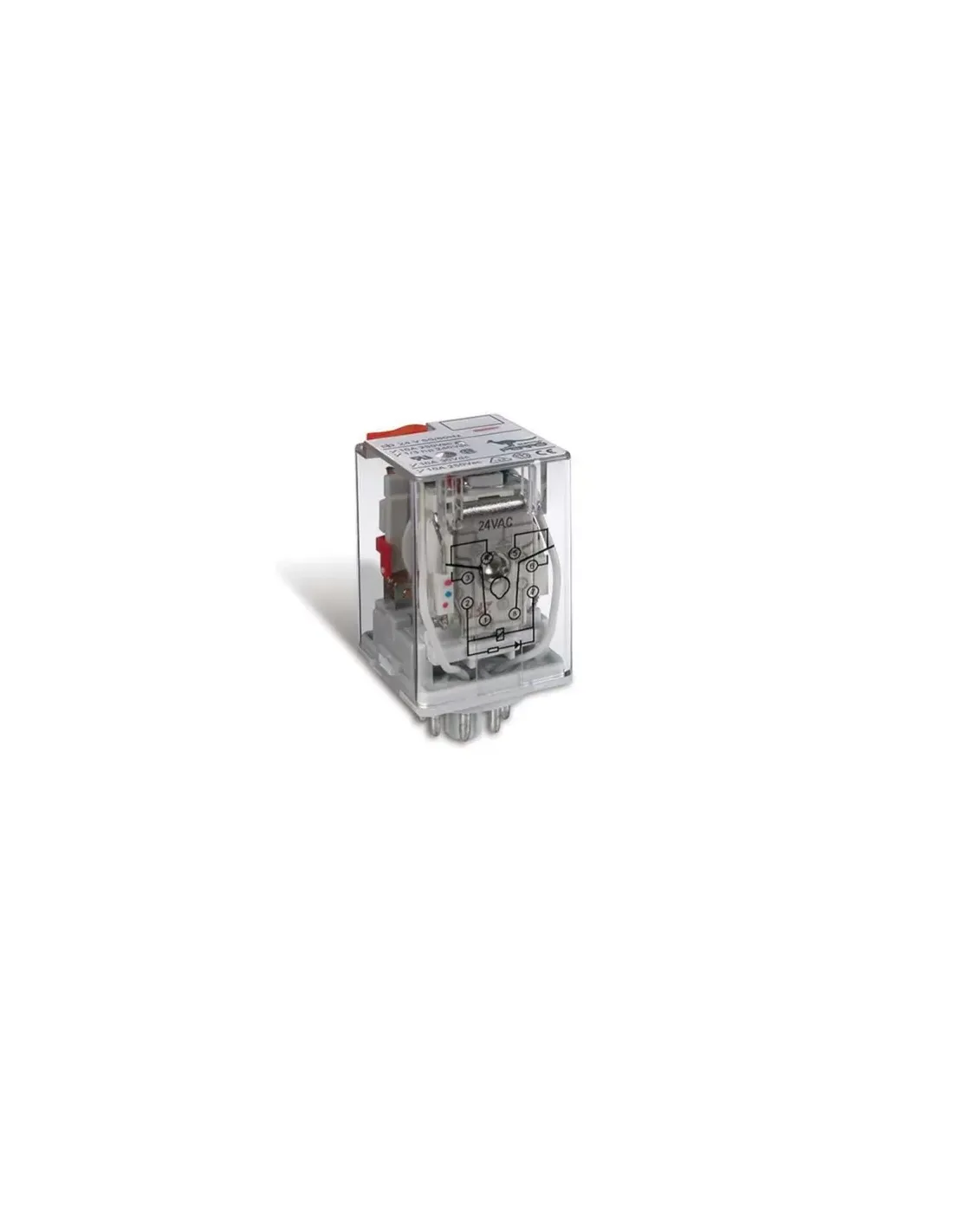

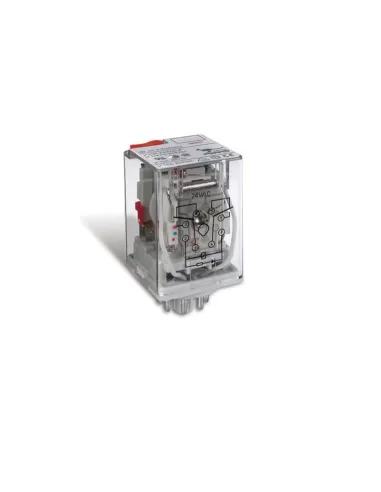

Perry electric 1re080260dc relay octal 2 ct 10a 250v 60vdc

1RE 080260DC OCTAL industrial relay 60V dc Power supply 60V dc 2 changeover contacts 10A//250V FEATURES Main data Type OCTAL // UNDECAL Supply voltage 12 - 24 - 48 - 60V dc (mod DC) 12 - 24 - 48 - 110 - 230V AC (DC mod) Nominal load 10A//250Vc a - 30V dc Load in AC1 12A//250Vc a - 30V dc Max switching power 2500VA // 300W Max switching voltage 250Vc a // 30V dc Motor power 1//3 HP a 240V AC Contact material AG - CdO Description Tertiary/industrial use Type of potential-free exchange outputs Contacts available 2 in deviation (2 x ) OCTAL 3 in deviation (3 x ) UNDECAL Dimensions (L x W x H) mm 21.5 x 28 x 36 Weight 37 g General data Type of installation on socket Protection degree (IP) IP20 Electrical life (operations) 100 000 Mechanical life (operations) 10 000 000 Insulation resistance (500 V dc) 1 000 MO Dielectric strength (contacts open) 750 V ac Dielectric strength (contacts // coil) 3 750 V ac Minimum load 100 mA // 5 V dc Power dissipation 1 5 W (mod DC) 2 5 VA (mod AC) Operating temperature limits from -55 at 70°C Trip time (at nominal voltage) 25 msec max Release time (at nominal voltage) 25 msec max Ambient temperature -55 ÷ 70°C Vibration resistance 10 ÷ 55 Hz 1 5 mm Shock resistance (functional) 100 m//sec2 //10 g Impact resistance (destructive) 1 000 m//sec2 //100 g Humidity 35 % ÷ 95 % Construction dust cover Rated insulation voltage 250 V Withstand voltage at rated imps 2.2 KV Pollution degree 2 Overvoltage category III Galler
