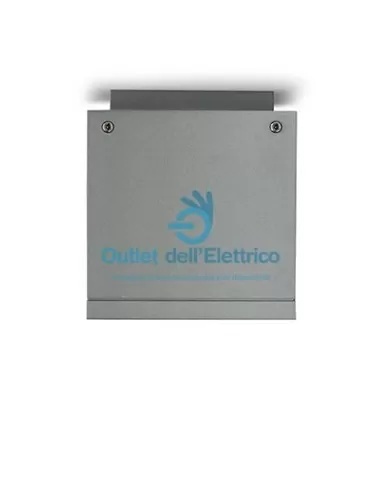

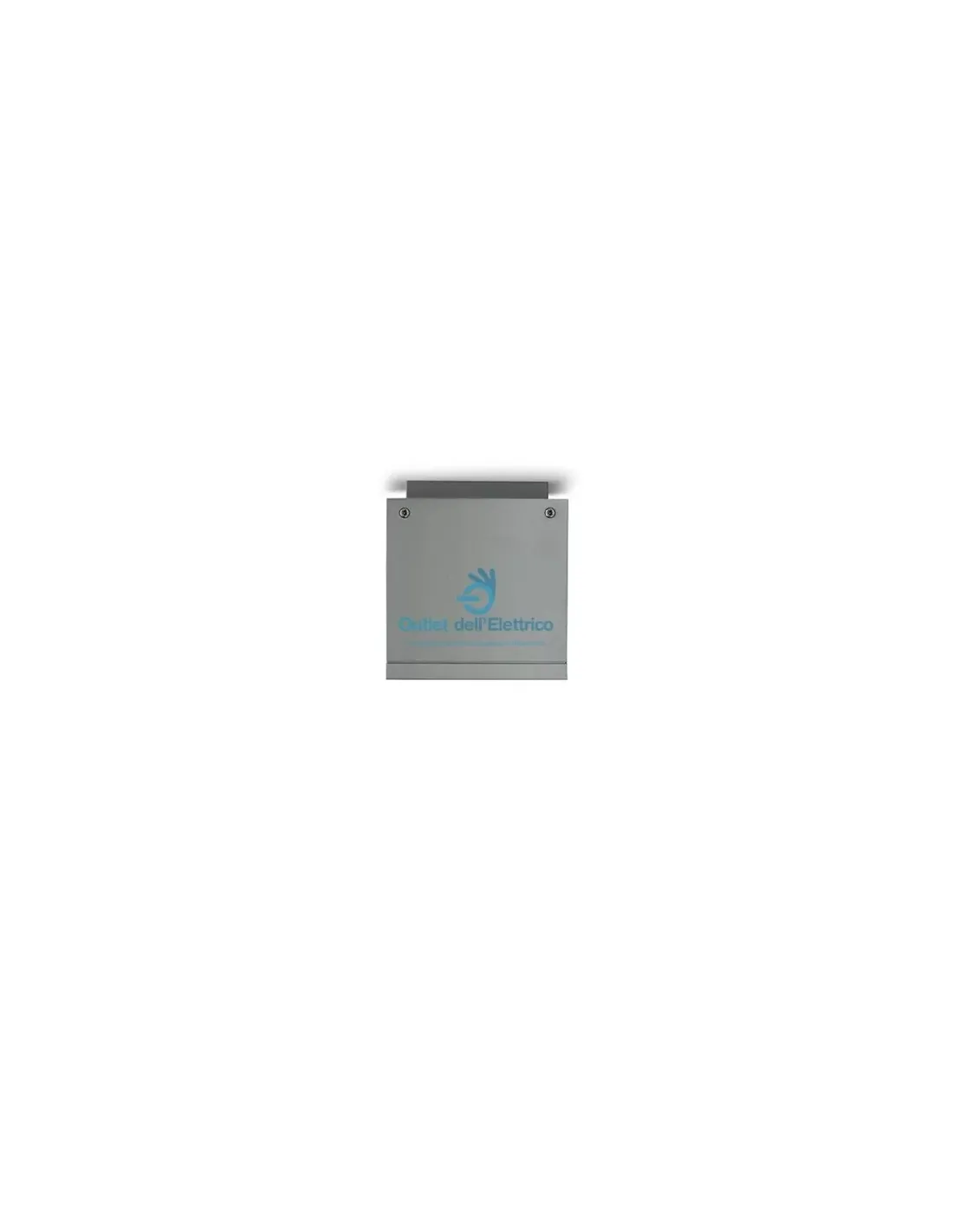

Simes s 6671 14 loft q sof xtc-tel18w grey

S.6671

LOFT CEILING

-TYPE

Built-in appliance.

IP 65 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in extruded EN AW-6060 and die-cast EN primary aluminium

AB-47100 with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure aluminium, turned, anodized and polished.

Transparent tempered protective glass.

Light source, with fixed lamp position.

Yield 39%

-INSTALLATION AND MAINTENANCE

Pre-wired base and disconnect switch make operations easier and safer

installation and maintenance.

-WIRING

Single entry for power cables.

Insulation class: CLASS I

Available colors: WHITE (cod.01), ALUMINUM GRAY (cod.14)

Weight: 3.03 kg

Glow Wire Test: --

Lamps supplied only on request.

S.6671 LOFT CEILING ACCESSORIES S.6605 EXTENSIVE LENS S.6639 ELLIPSOIDAL LENS
