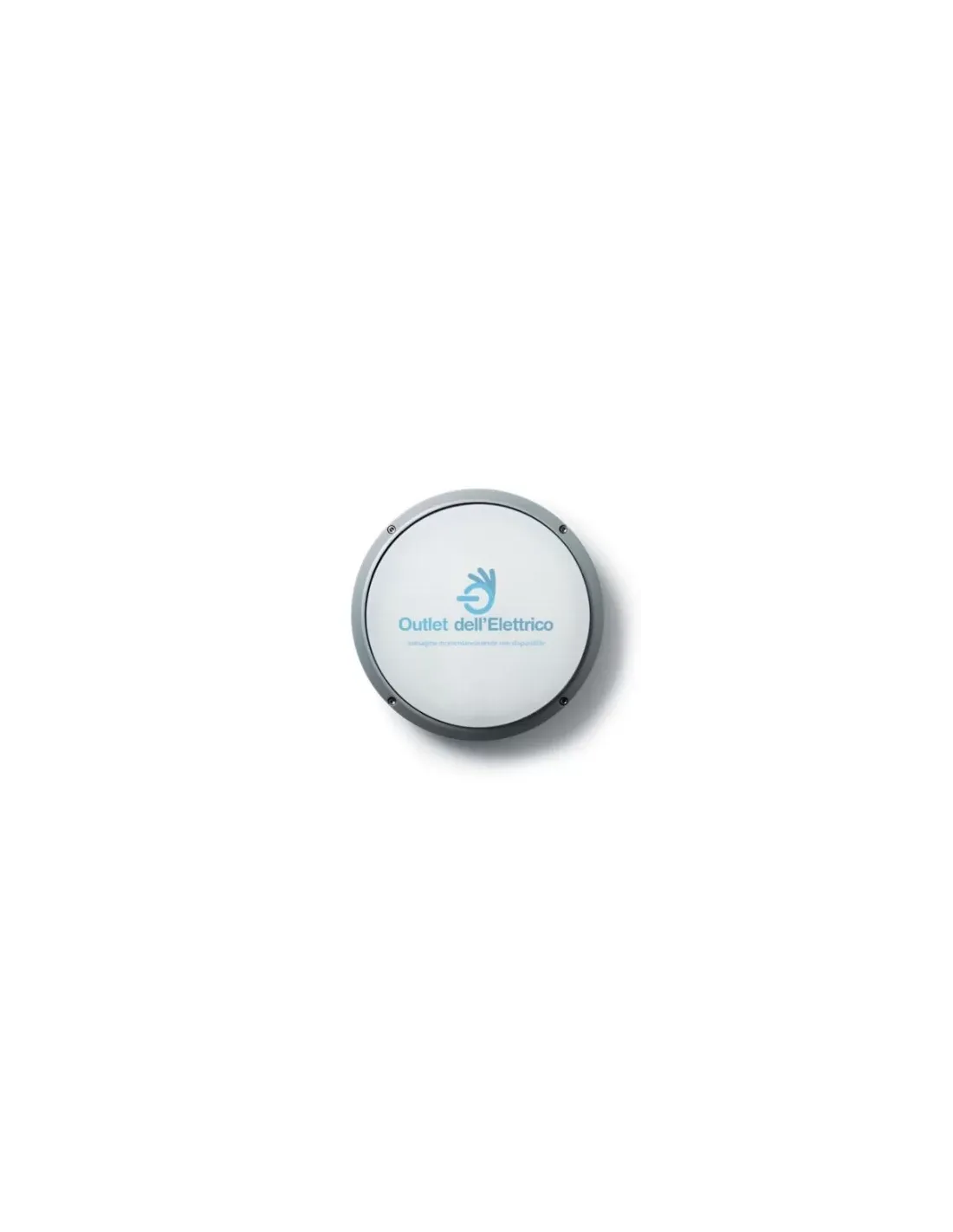

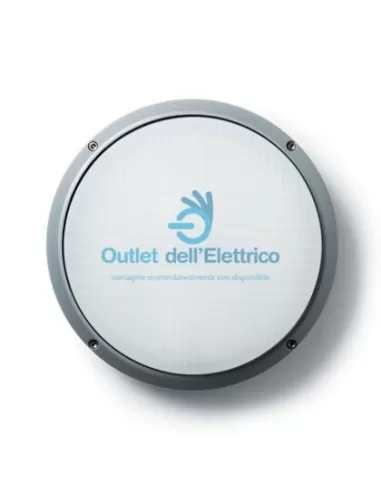

Simes s 6865 01 megavedo round ring white glass sand opal e27 150w ip55

S.6865

MEGAVEDÒ ROUND

-TYPE

Wall-mounted device.

Degree of protection IP 55

-FEATURES OF THE MATERIALS

Body in die-cast primary aluminium EN AB-47100 with high

resistance to oxidation.

Tumbling process to prepare for the painting phase.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Dutral gaskets.

Extra-resistant painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

bonded with high resistance characteristics to UV rays and agents

atmospheric, with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure anodized and polished aluminum.

Sandblasted glass protective diffuser (Opal polycarbonate diffuser

Vandal-proof available upon request.

Light source with fixed lamp position.

Yield 56%

-WIRING

Double power cable entry with cable gland.

Insulation class CLASS I

Available colors: WHITE (code 01), BLACK (code 09), ALUMINUM GREY

(cod.14)

Weight 3.71kg

Glow wire test 960°C
