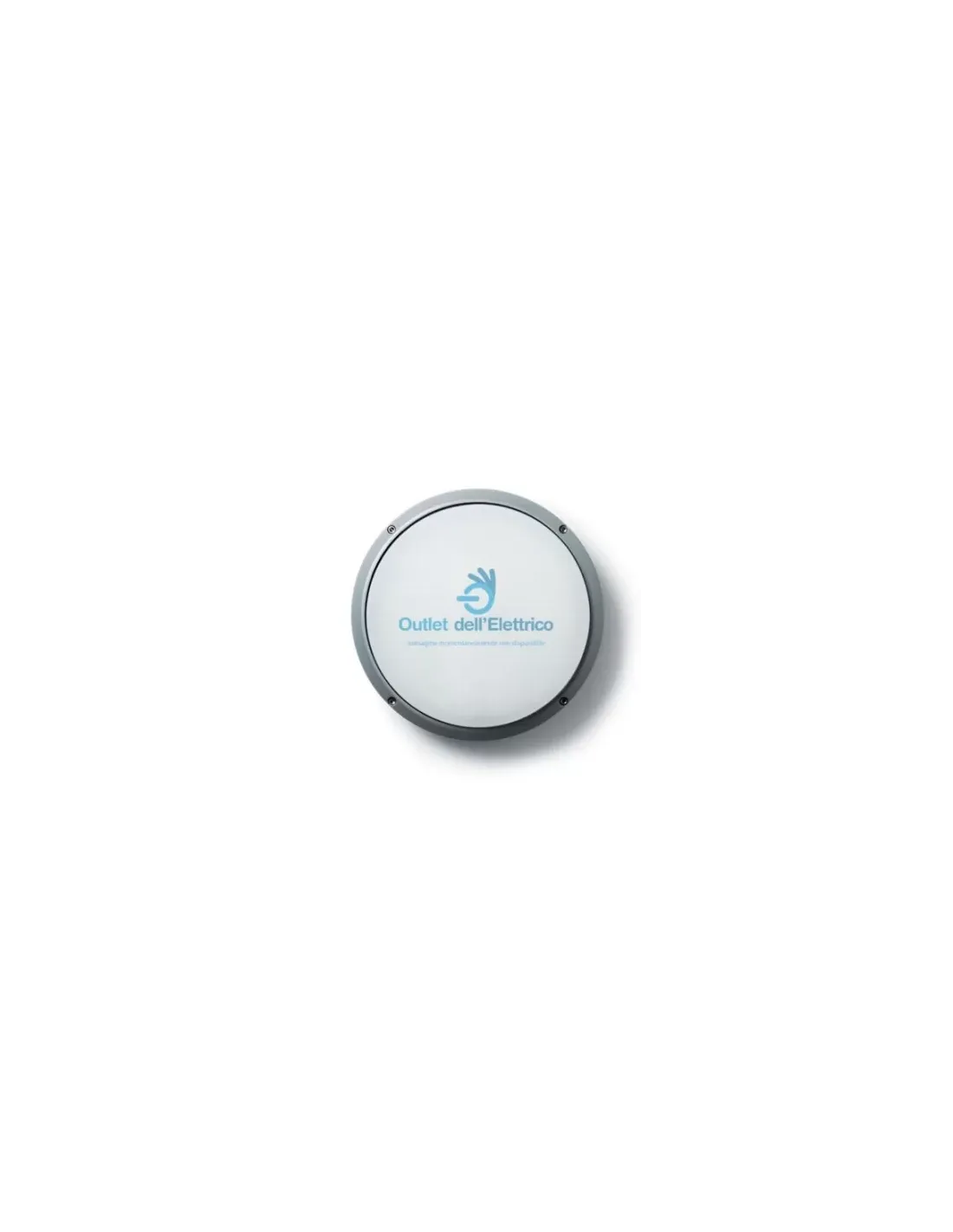

Simes s 6865 01 megavedo round white ring sand glass opal e27 150w ip55

S.6865

MEGAVEDÒ TONDA

-TYPE

Wall mounted fixture.

IP 55 protection rating

-CHARACTERISTICS OF THE MATERIALS

High quality EN AB-47100 primary die-cast aluminum body

resistance to oxidation.

Tumbling process to prepare for the painting phase.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Dutral gaskets.

Extra-resistant painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

bonded with high resistance to UV rays and agents

atmospheric, with resistance to the salt spray test of 1500h.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure anodized and polished aluminium.

Protective diffuser in sandblasted glass (Diffuser in opal polycarbonate

anti-vandalism available on request.

Light source with fixed lamp position.

Yield 56%

-WIRING

Double power cable entry with cable gland.

Insulation class CLASS I

Available colors WHITE (cod.01), BLACK (cod.09), ALUMINUM GRAY

(code 14)

Weight 3.71kg

Glow wire test 960°C
