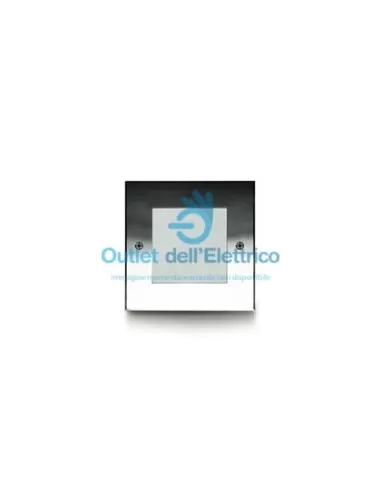

Simes s 8825 19 minizip led plus square recessed stainless steel stainle led 1,5w ip67

S.8825.19

MINIZIP SOFT LED SQUARE

-TYPE

Walkable device for ground installation.

Depth 135mm.

Degree of protection IP 67

-FEATURES OF THE MATERIALS

Body in die-cast primary aluminium "Copper Free" EN AB-44100

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

2 mm thick front finishing ring made of AISI stainless steel

316L with a high molybdenum content of 2.5-3%.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with salt spray test resistance of 1500h.

Mechanical resistance of glass IK 09

Maximum load 1000 kg

-LIGHTING PERFORMANCE

8 mm thick tempered acid-etched protective glass.

Yield --

Light source, with fixed lamp position.

-LOW SURFACE TEMPERATURE

Glass temperature 37°C (Ta 15°C)

-FORMWORK FOR INSTALLATION AND MAINTENANCE

Supplied with polypropylene formwork prepared for cable entry

which allows you to:

1) perform easy wiring;

2) accommodate the quick connector;

3) Easily perform appliance removal for maintenance.

-WIRING

Piece of H07RN-F type power cable closed by the

PG 13.5 cable gland (Ø 6÷12 mm), sealed with epoxy resin

two-component and internally wired with cables covered by sheaths

silicone glass protectors.

Changing the headlamp without completely removing the device.

Insulation class: CLASS I

Available colors: STAINLESS STEEL (code 19)

Weight: 2.49 kg

Glow wire test: 850°C

Fixtures supplied complete with LED circuit with emission class

1 (CEI EN 60825-1:2003-02)
