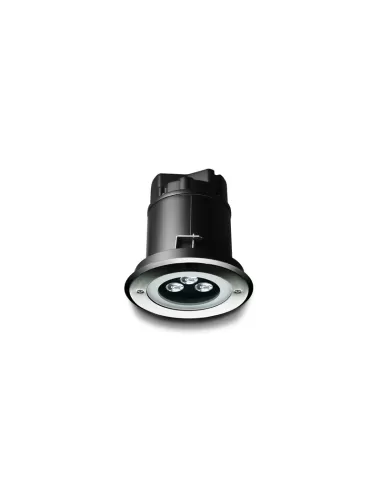

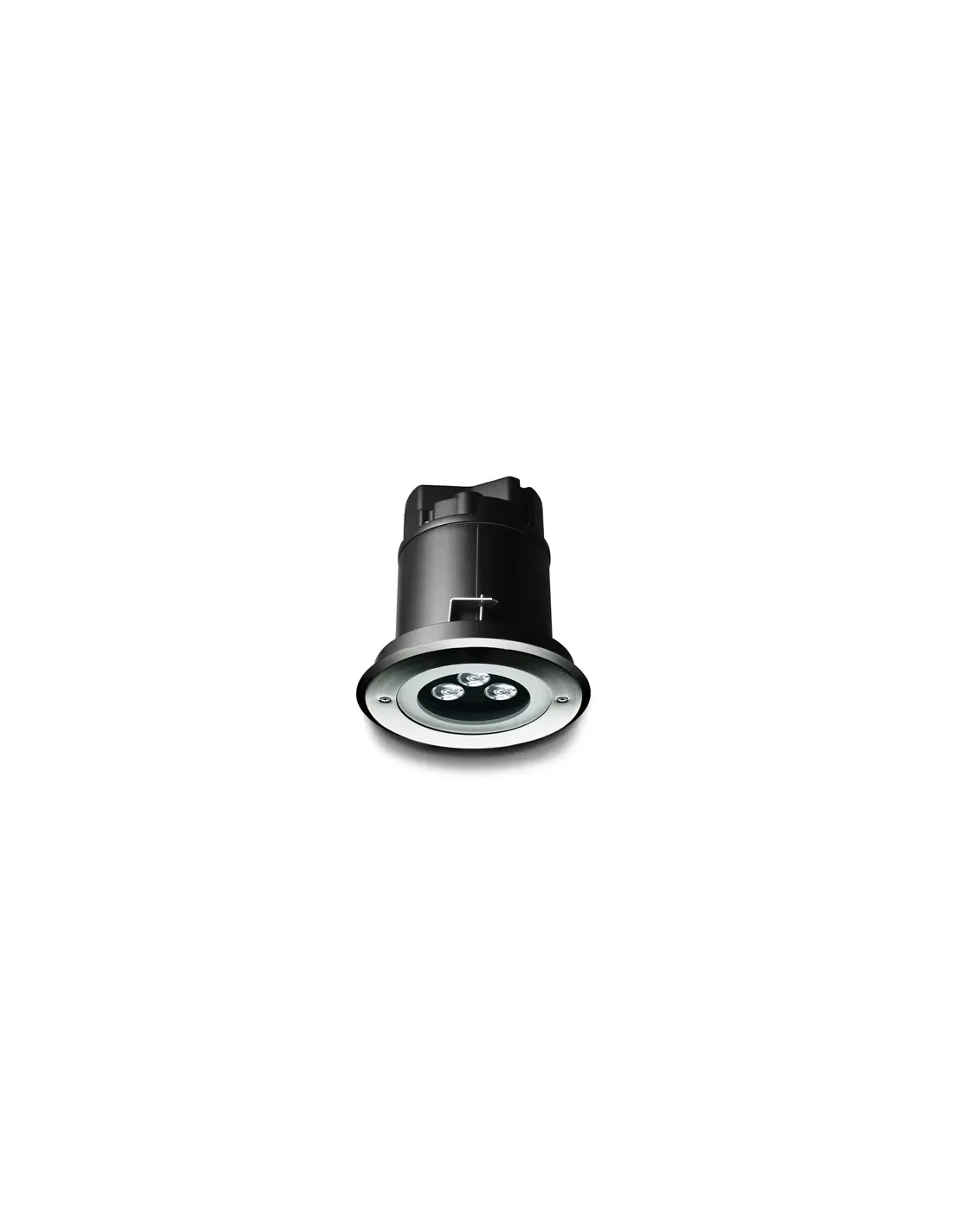

Simes s 5852w 19 zip d//l t led930 fl ino recessed spotlight 3000°k 16w without dimmer

S.5852W.19

ROUND ZIP LED RECESSED LIGHT

-TYPE

Downlight for false ceiling installation.

Depth 215mm.

Degree of protection IP 65

-FEATURES OF THE MATERIALS

Body in die-cast primary aluminium "Copper Free" EN AB-44100

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

Front finishing ring made of AISI 316L stainless steel with strong

molybdenum content 2.5-3%, thickness 2 mm.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with salt spray test resistance of 1500h.

Mechanical resistance of glass IK 09

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure aluminum, turned, anodized and polished.

10 mm thick tempered semi-acid-etched protective glass.

Yield --

Light source, with tilting lamp position ±15°.

-INSTALLATION AND MAINTENANCE

The device is secured to the false ceiling by means of a system of

sturdy steel brackets, adjustable from inside the appliance.

Changing the headlamp without completely removing the device from the

false ceiling.

-WIRING

Double entry for power cables with PG 13.5 cable glands (Ø 6÷12

mm).

Insulation class: CLASS I

Available colors: STAINLESS STEEL (code 19)

Weight: 2.87 kg

Glow wire test: 850°C

Fixtures supplied complete with LED circuit with emission class 2

S.5852W.19 ACCESSORIES FOR ZIP LED DOWNLIGHT ROUND S.5520 Kit for installation in concrete ceilings Includes: _ plate; _ round housing. Dimensions: Ø 190 mm h 240 mm
