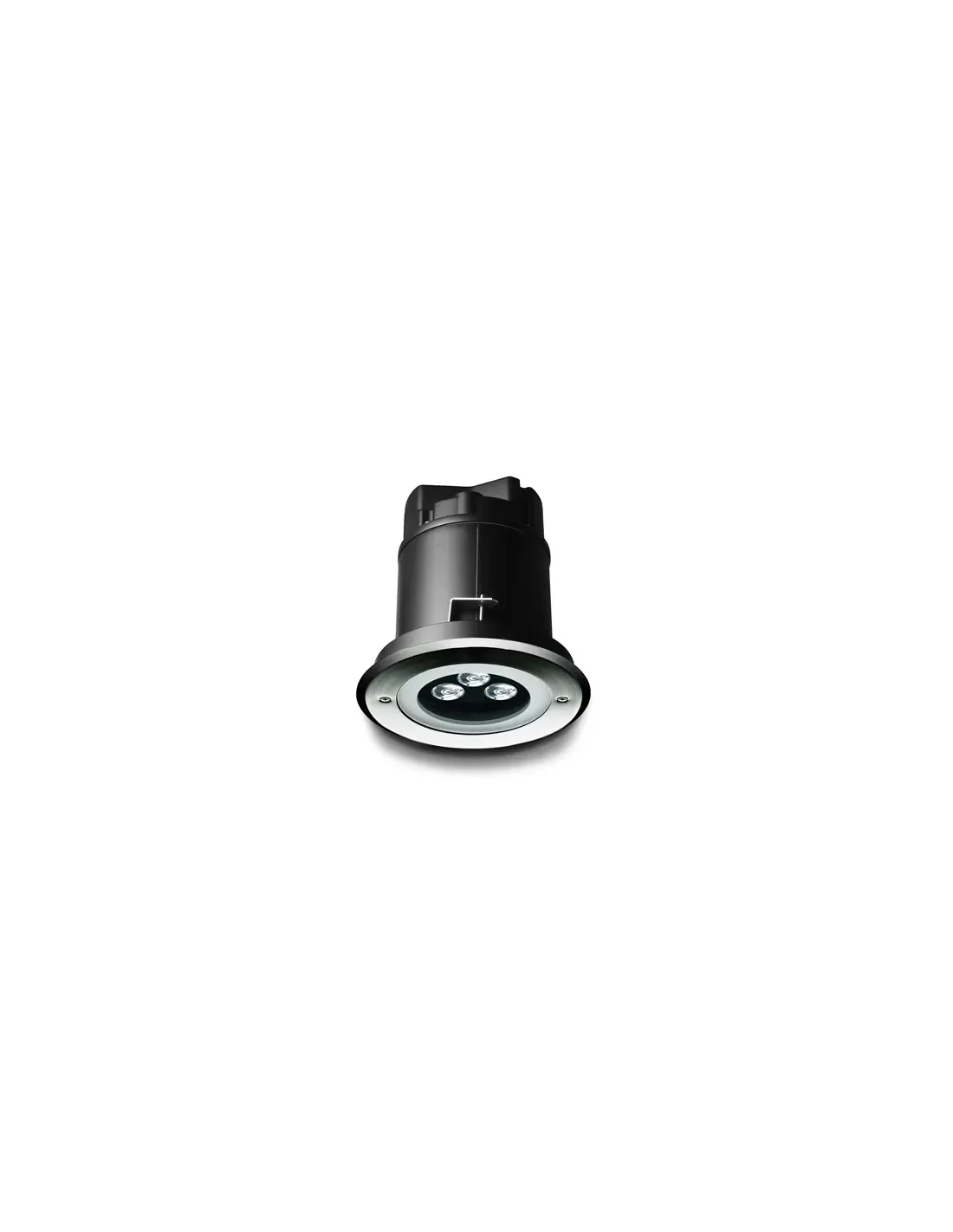

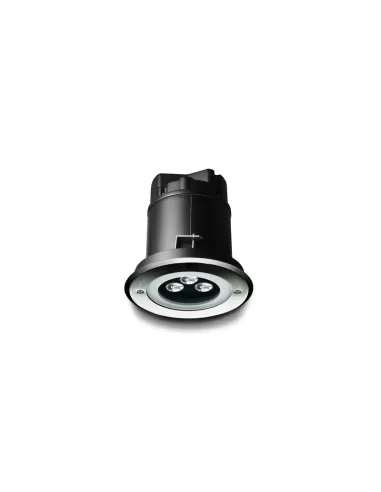

Simes s 5852w 19 zip d//l t led930 fl ino recessed spotlight 3000°k 16w without dimmer

S.5852W.19

RECESSED LED ROUND ZIP

-TYPE

Down-light fixture for false ceiling installation.

Depth 215mm.

IP 65 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in EN AB-44100 "Copper Free" primary die-cast aluminium

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

Front finishing ring made of strong AISI 316L stainless steel

molybdenum content 2.5-3% thickness 2 mm.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 09

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure aluminium, turned, anodized and polished.

10 mm thick tempered semi-etched safety glass.

Yield --

Light source, with tilting lamp position ±15°.

-INSTALLATION AND MAINTENANCE

The appliance is secured to the false ceiling via a system

sturdy steel brackets, adjustable from inside the fixture.

Changing the headlamp without completely removing the device from the

false ceiling.

-WIRING

Double entry for power cables with PG 13.5 cable glands (Ø 6÷12

mm).

Insulation class: CLASS I

Available colors: INOX (cod.19)

Weight: 2.87 kg

Glow wire test: 850°C

Luminaires supplied complete with LED circuit with emission class 2

S.5852W.19 ACCESSORIES FOR ZIP LED DOWNLIGHT ROUND S.5520 Kit for installations in concrete ceilings Includes: _ plate; _ round formwork. Dimensions: Ø 190 mm h 240 mm
