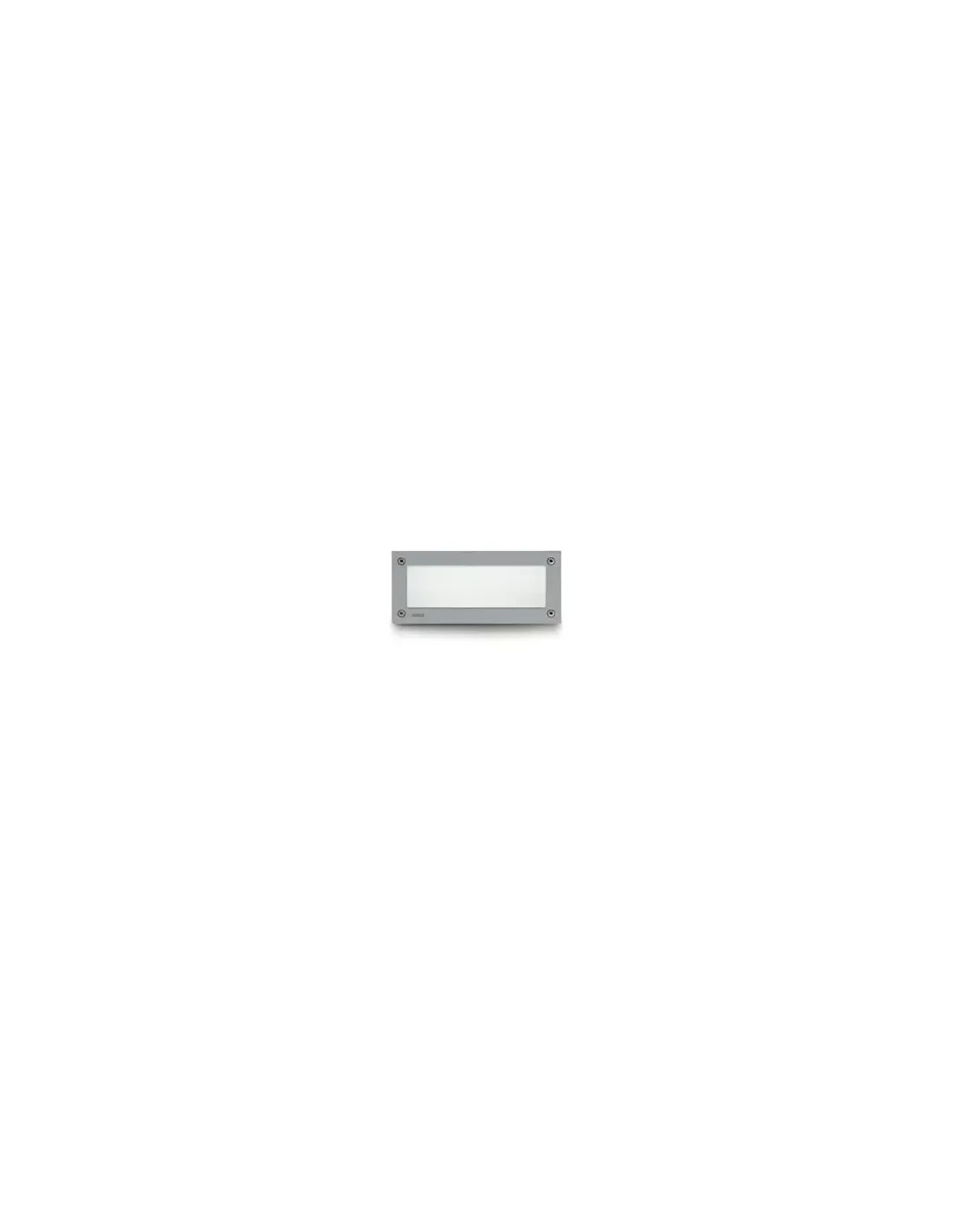

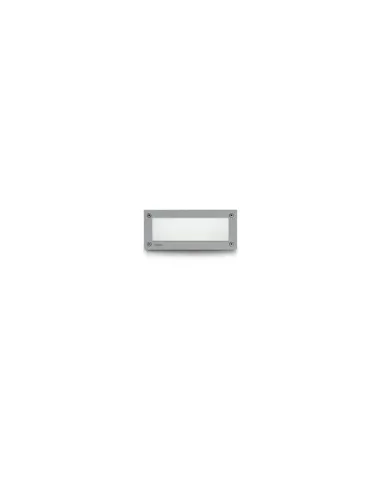

Simes s 4552 01 minibrique ret 3led bf 6w white

S.4552

RECTANGULAR MINIBRICK

-TYPE

Wall installation appearance.

Degree of protection IP 54

-MATERIAL CHARACTERISTICS

Body in first casting EN AW-6060 aluminium and pressurised EN

AB-47100 with high oxidation resistance.

Preparation of the burr for preparation during the painting phase.

A4 stainless steel screws have a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra resistant double painting done in 3 steps:

1) BONDERITE treatment with chemical protection of materials

Fluorozirconic deprived of metal content of ceramic nanoparticles he that

create a cohesive, inorganic, high-density layer.

2) PREPOLYMERIZED cycle with application from the bottom

possible with reliability features of all devices and

Increase the resistance to the possible resistance due to the pressure of the zinc.

3) POLYMERIZATION cycle with application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt temperature test of 1500h.

Mechanical resistance of glass IK 07

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure aluminum, turned, anodized and polished.

Diffused in opalescent and dotted temperature glass.

Very bright, with the lamp in the correct position.

Return --

-INSTALLATION AND HANDLING

The installation is age-appropriate thanks to the provision of the formwork in

polypropylene. Suitable plastic supports reinforce the structure in the

centerline. Keep in mind that this should prevent deformation during use.

formation of concrete walls and floors.

It appears to be damaged and damaged while in use

STAINLESS STEEL.

It shows a rigged diagram that makes it easier to see the inside of the device.

The ring and grid block can be spread into the glass, covering the edge

of the formwork, therefore also the edge of the hole. In this way they hide

the imperfection of the wall.

-WIRING

Double entry in power cables with cable gland.

Insulation class: CLASS I

Available colors: WHITE (code 01), BLACK (code 09), ALUMINUM GREY

(code.14)

Weight: 0.83Kg

Glow wire test: --

It appears to provide the complete LED circuit. with emission class

1 (CEI EN 60825-1:2003-02)

S.4552 ACCESSORIES FOR RECTANGULAR MINIBRIQUE S.4553 FORMWORK FOR MINIBRIQUE 184 x 74 mm. Depth 90 mm
