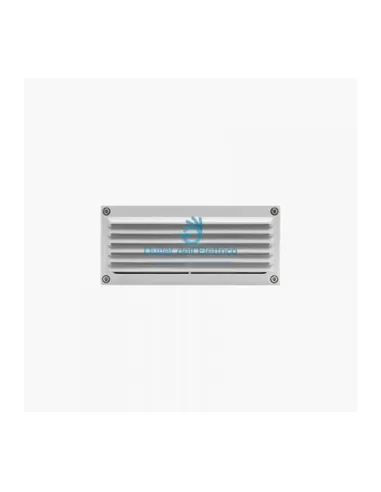

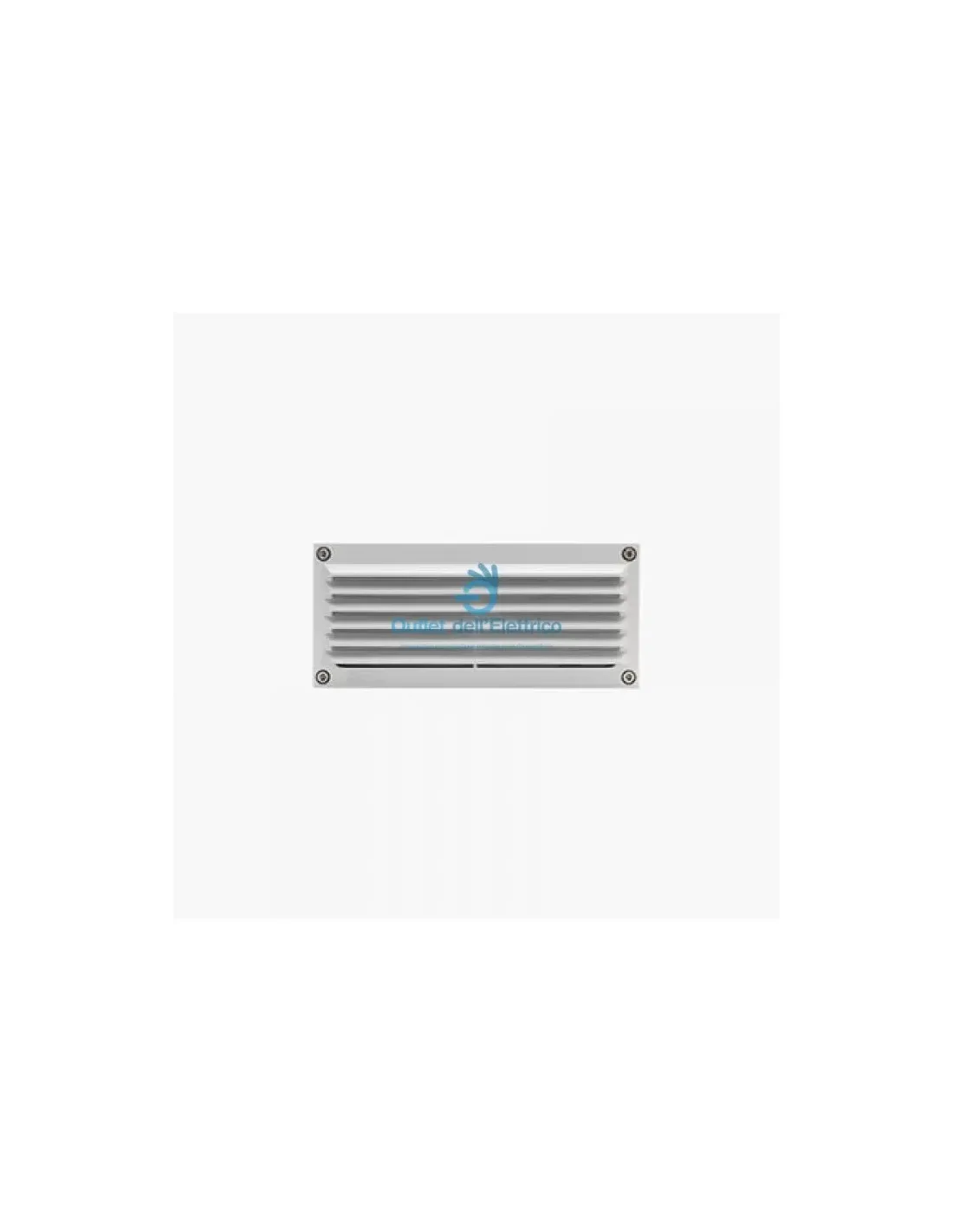

Brique Rectangular wall recessed light with grille Tc-d 18w G24d-2 1200ml white

-TYPE

Wall-mounted device.

Degree of protection IP 65

-FEATURES OF THE MATERIALS

Body in extruded primary aluminium EN AW-6060 and die-cast EN

AB-47100 with high oxidation resistance.

Tumbling process to prepare for the painting phase.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Annealed silicone gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of material

metal-free fluozirconium containing ceramic nanoparticles that

they create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with salt spray test resistance of 1500h.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure aluminum, turned, anodized and polished.

Diffuser in opalized and dotted tempered glass.

Light source, with fixed lamp position.

Yield 4%

-INSTALLATION AND MAINTENANCE

Installation is easy thanks to the provision of the formwork in

polypropylene. Suitable plastic supports reinforce the structure in the

centerline. This measure prevents deformation during the

formation of walls by means of concrete pouring.

The devices are secured to the formwork using steel screws

STAINLESS STEEL.

The ribbed glass slightly blocks the view of the inside of the appliance.

The ring and grille lock the ribbed glass diffuser by covering the edge

of the formwork, therefore also the edge of the hole. In this way they hide

the imperfections of the masonry.

-WIRING

Double power cable entry with cable gland.

Insulation class: CLASS I

Available colors: WHITE (code 01), BLACK (code 09), ALUMINUM GREY

(cod.14)

Weight: 1.86 kg

Glow Wire test: 750°C

Lamps supplied upon request only

ACCESSORIES

S.2498 10kV CLASS I SURGE PROTECTOR Compatible with all lighting fixtures in Insulation Class CLASS I Operating voltage 230-277V SPD type 2+3 Maximum discharge voltage 10kV Protection degree IP67 1 SURGE PROTECTOR MUST BE PROVIDED FOR EACH LIGHTING DEVICE AND MUST BE INSTALLED AT A MAXIMUM DISTANCE OF 10m FROM THE LATTER.

S.4503 FORMWORK 220 x 92 mm. Depth 95 mm
