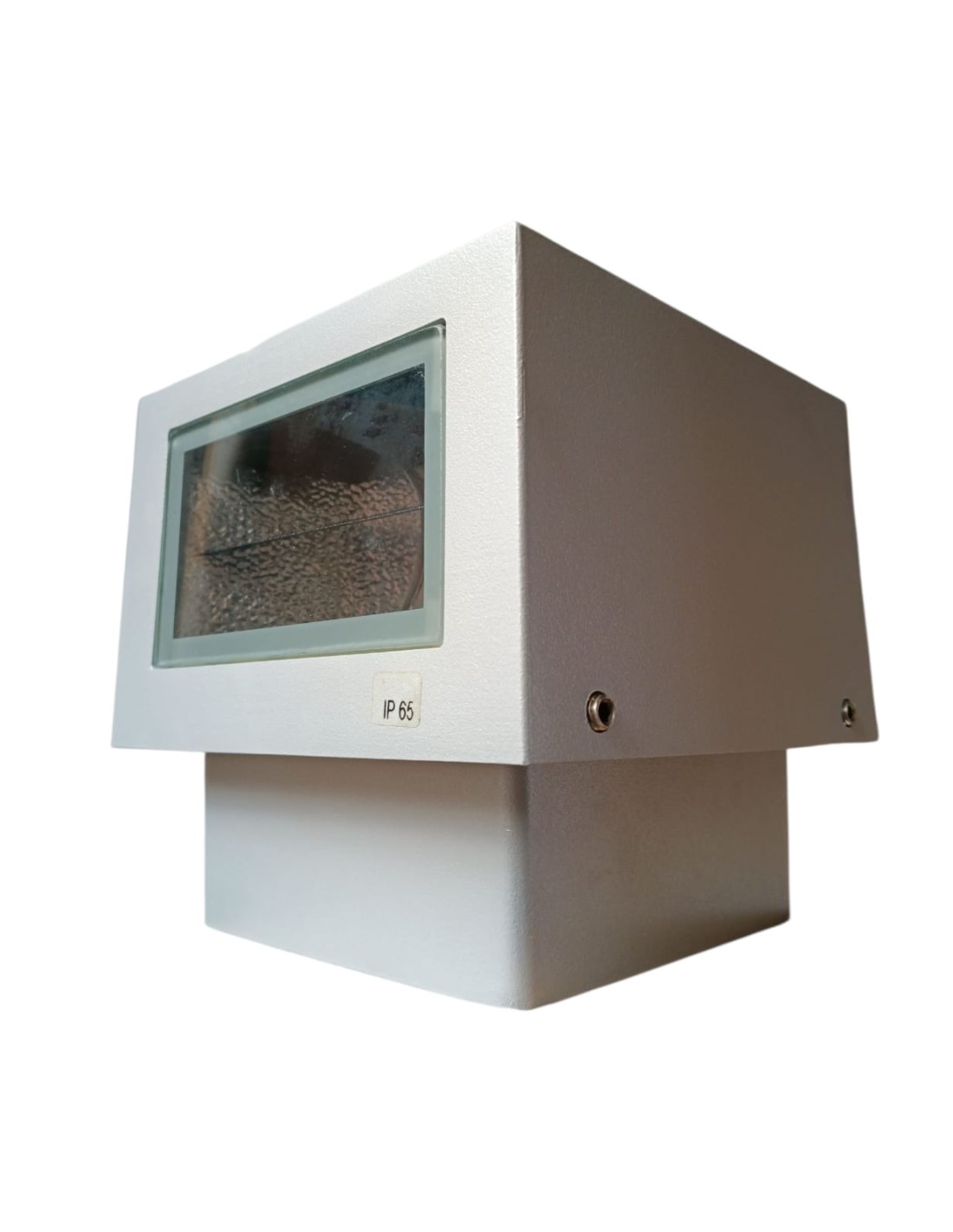

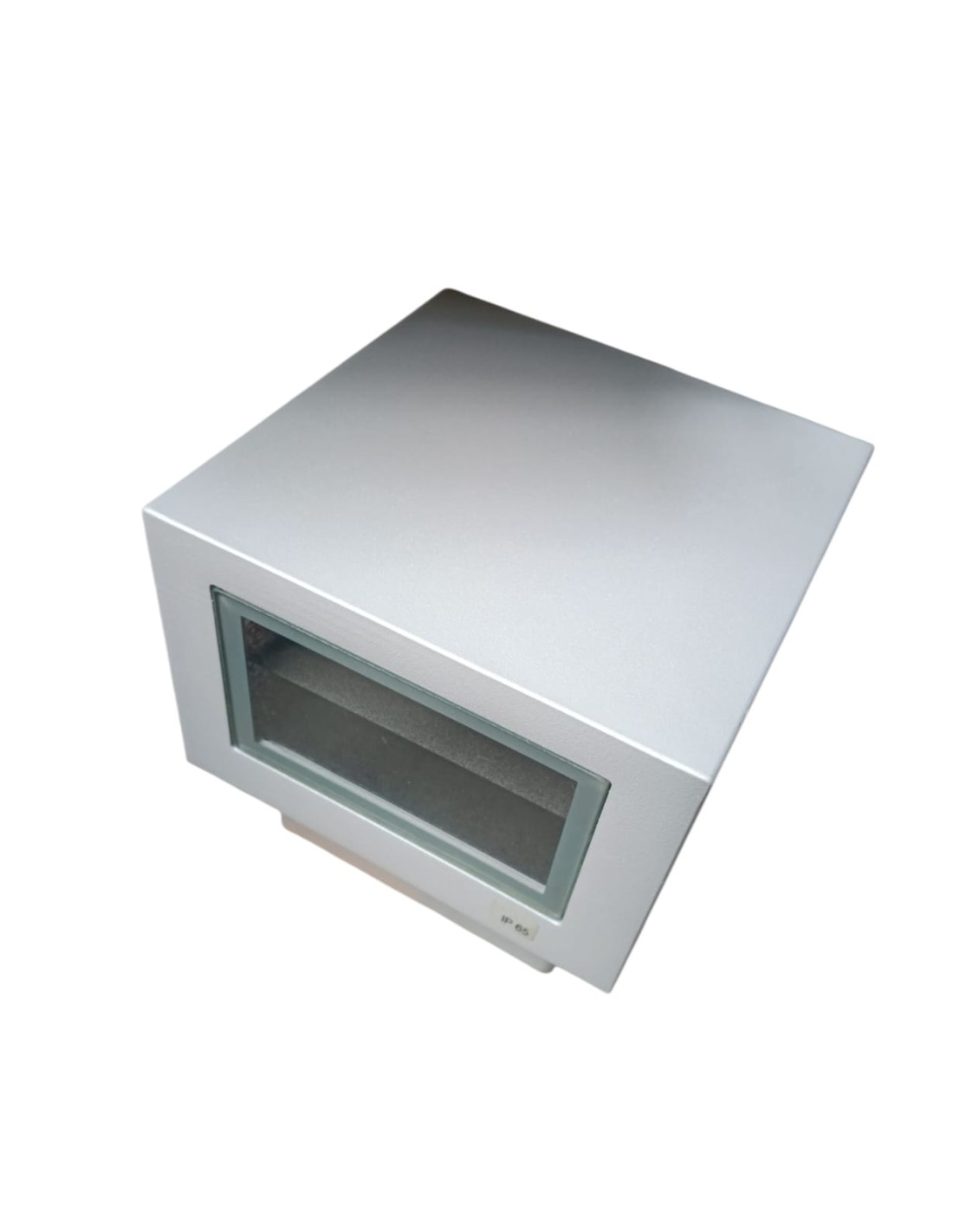

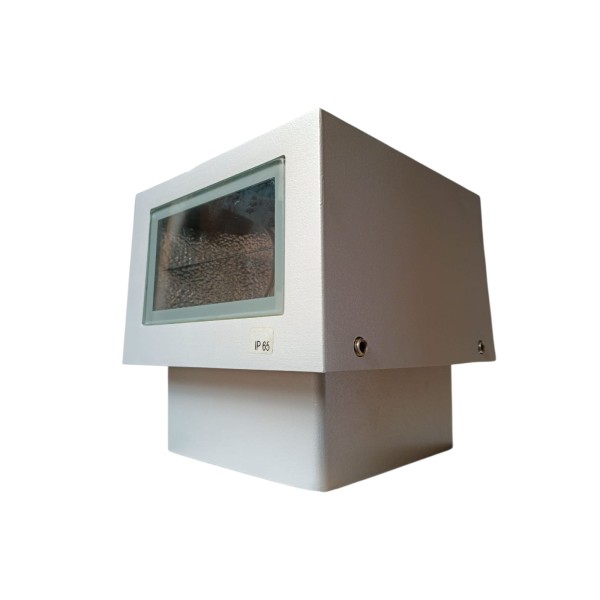

Simes S.5012.14 Lift quad 1f 60° incandescent lamp 100w e27 grey ip65

S.5012 LIFT SQUARE - Wall-mounted fixture

Type: Wall-mounted fixture.

IP protection rating: IP65.

Material characteristics:

• Body in die-cast primary aluminium EN AB-47100 with high resistance to oxidation.
• A4 stainless steel screws with high molybdenum content.
• Annealed silicone gaskets.
• Extra-resistant double painting carried out in 3 phases for maximum durability and protection from atmospheric factors.

Lighting performance:

• Optical reflectors in 99.98% pure anodized and polished aluminum.
• Curved tempered glass lenses, glued to the aluminum cap.
• Luminous efficiency of 8%.

Installation and maintenance:

• The sturdy die-cast aluminum cap is secured to the base with four AISI 316L stainless steel screws.
• The lamp holders are positioned on a steel base that can be adjusted to a flat position.

Wiring:

• Double power cable entry with PG13.5 cable glands (Ø 6÷12 mm).
• Insulation class: CLASS I.

Available colors: WHITE (code 01), ALUMINUM GREY (code 14), CORTEN RUST (code 18).

Weight: 4.43 Kg.

Glow Wire test: 850°C.

Note: We recommend using only SYLVANIA DLX- lamps.
