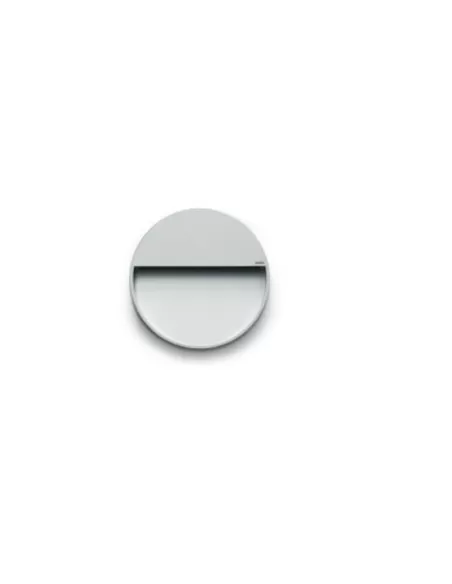

Simes s 6280w 01 skill ton led930 white

SIMES -
- 44 -
- S.6280W.01 -
Trustpilot
Simes s 6280w 01 skill ton led930 white
Simes s 6280w 01 skill ton led930 white
Simes s 6280w 01 skill ton led930 white
Simes s 6280w 01 skill ton led930 white
Simes s 6280w 01 skill ton led930 white
Simes s 6280w 01 skill ton led930 white
SIMES
151.19 €
Tax included

Order by

and your product will be shipped

i
Last items in stock

In Stock: 1/PZ

Condizione prodotto:Used


Secure Payments

Delivery times

Fedex Road Europe: 5-7 working days

Dhl Road Europe: 3-5 working days

DHL Express International: 2-3 working days

Legal guarantee of conformity

Customer Care

3357576793 | 0804031764

Monday/Friday 9:00-12:30/15:00-18:00

Payments Method


ROUND SKILL
Art. S.6280W
LED MODULE 3000K
Technical Data Light Source
Light source type: LED
Color temperature: 3000K
Source luminous flux: 1131lm
Luminous flux of the luminaire: 427lm
Source power: 6.6W
Total power absorbed by the appliance: 8.1W
Luminaire luminous efficiency: 53lm/W
ULR: 3%
CIE Flux Code: 39 73 93 97 100
Color rendering index: CRI 90
Standard deviation of color match: MacAdam step 3
Technical Data Power Supply
Voltage (AC): 220-240Vac
Frequency (AC): 50/60Hz
Dimming: PHASE CUT (L-C) (DALI2 option; PUSH with extra charge)
Inrush Current: 2A 50µsec
Maximum number of pieces for B16A type thermal magnetic switch: 50
Maximum number of pieces for C16A type thermal magnetic switch: 85
Overvoltage protection (between L-N): 1÷2kV
Overvoltage protection (between L/N-PE): 2kV
Technical Data Temperatures and Duration
LED lifespan: L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C
APPLIANCE lifespan: min. 70,000h Ta 25°C min. 50,000h Ta 40°C
Ambient temperature performance: Tq 25°C
Operating ambient temperature: from -20°C to +50°C
Storage temperature: from -20°C to +60°C
Technical Data Installation
Electrical insulation class: THE
IP protection rating: IP65
Impact resistance: IK08
Weight: 1.4475Kg
PRODUCT DESCRIPTION
TYPE
Wall-mounted device. IP 65 protection rating.

MATERIAL CHARACTERISTICS
Body in EN AB-47100 die-cast aluminum with high resistance to oxidation. Tumbled finish for preparation for the painting phase. Screws in A4 stainless steel with a high molybdenum content of 2.5-3%. Silicone gaskets.annealed.
Extra-resistant double painting carried out in 3 phases:
1) BONDERITE treatment with a metal-free fluozirconic chemical protection material containing ceramic nanoparticles that create a cohesive, inorganic, high-density layer. 2) PRE-POLYMERIZATION cycle with application of an epoxy primer with characteristics that allow the device to be overpainted and with high resistance to oxidation thanks to the presence of zinc. 3) POLYMERIZATION cycle with the application of polyester powder with high resistance to UV rays and atmospheric agents, with resistance to the salt spray test for 1200 hours. Mechanical resistance IK 08

LIGHTING PERFORMANCE
Tempered and dotted glass diffuser. Light source with fixed lamp position. Efficiency --

WIRING
Prepared for pass-through wiring with cable gland for SKILL.
Insulation class: CLASS I
Available colors: White (code 01), Aluminum gray (code 14), Anthracite gray (code 24) Weight: 1.4475 Kg Glow Wire test: --
Fixtures supplied complete with LED module

SKILL REGISTERED MODEL

This device features integrated LED modules. In case of damage or malfunction, contact the manufacturer for additional instructions on how to replace the LED module and related components. The LED module in this device cannot be handled by the end user (EU Regulation 874/2012).

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): C.

LED module designed in accordance with the current Lumen Maintenance Regulation (LM80) and Technical Memorandum (TM21), where the light quality is reliable for a lifetime of 70,000 hours referred to L80 B10 Ta 25°C (50,000 hours referred to L80 B10 Ta 40°C). Luminaire lifespan min. 70,000 hours Ta 25°C, min. 50,000 hours Ta 40°C. Performance ambient temperature Tq 25°C. Operating ambient temperature -20°C to +50°C. Storage temperature -20°C to +60°C.

ELECTRONIC EQUIPMENT SENSITIVE TO OVERVOLTAGE.
It is recommended to install surge protection devices (SPD) in the electrical system.Protective devices prevent the intensity of these phenomena, protecting fixtures from damage and prolonging their life. Outdoor lighting fixtures are subject to all types of permanent, temporary, or transient electrical disturbances. These disturbances can cause permanent damage or failures that compromise their performance and lifespan. Surge protection devices (supplied by SIMES) are used to limit the destructive effect of these phenomena. A protective device must be installed for each lighting fixture no more than 10 meters away. To ensure proper coordination of the protection devices, a surge protection device must also be included within the system's electrical power panel (the choice of this device is the responsibility of the designer and is not supplied by SIMES).
