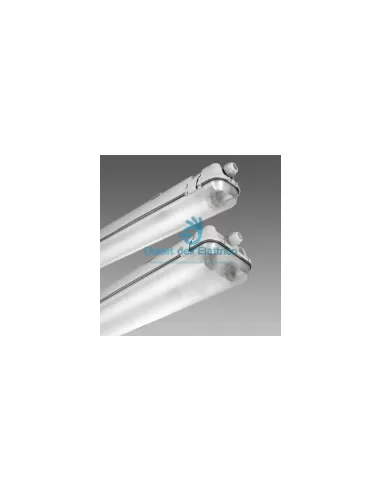

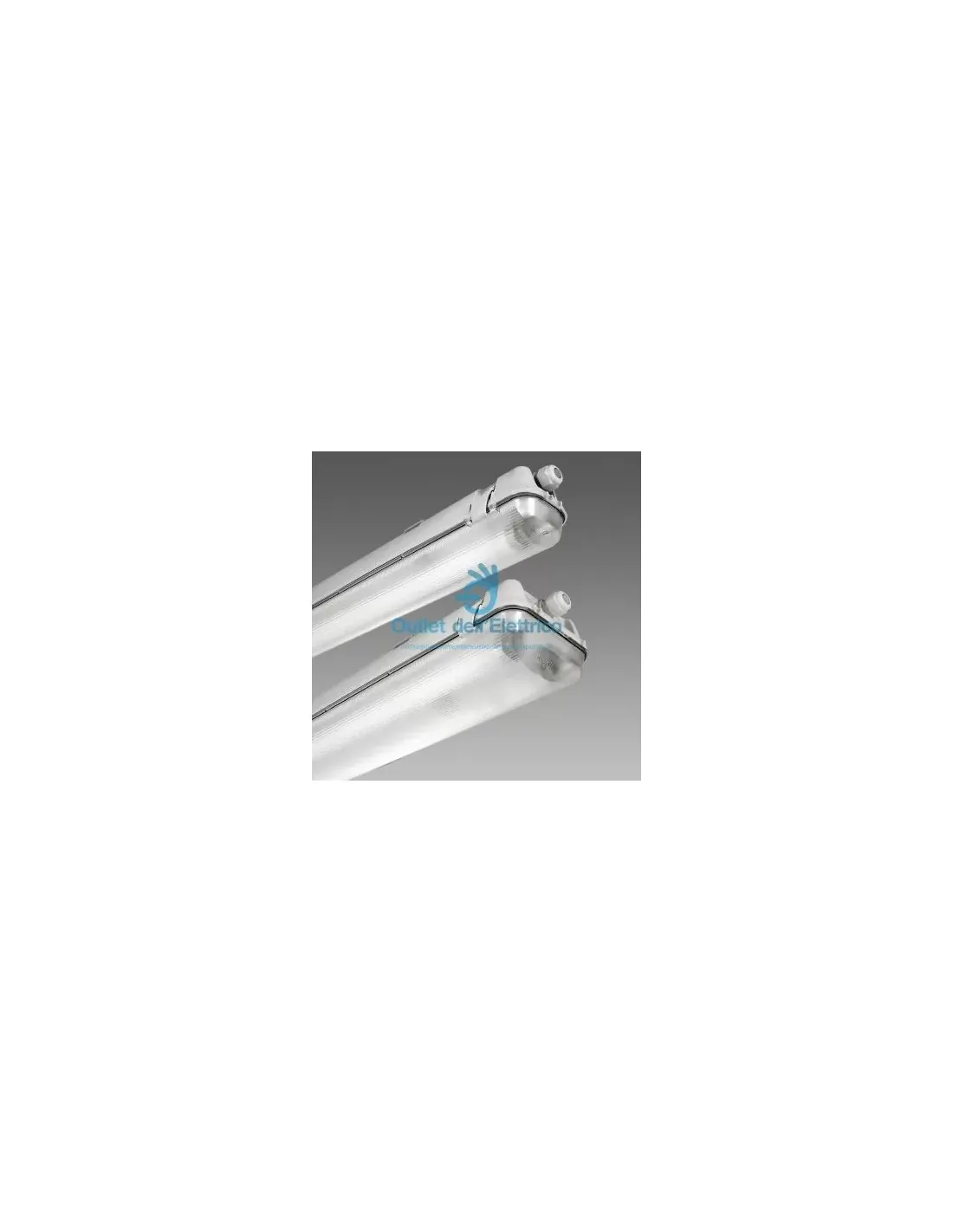

Disano 16453200 Hydro /el 921 fl1x58 elf grey

BODY: Injection molded, in RAL7035 gray polycarbonate, shatterproof and self-extinguishing V2, with high mechanical resistance thanks to the structure reinforced with internal ribs.
DIFFUSER: Injection-molded clear polycarbonate with internal prismatic finish for greater light control, V2 self-extinguishing, and UV-stabilized. The smooth exterior finish facilitates cleaning, which is essential for maintaining maximum light output.
REFLECTOR: Made of cold-rolled steel, hot-dip galvanized to prevent cracking, coated with 7/8 micron epoxy primer, UV-stabilized, anti-yellowing paint in glossy white polyester, thickness 20 microns.
LAMP HOLDER: Made of white polycarbonate with phosphor bronze contacts. G13 socket.
WIRING: 230V/50Hz power supply, with electronic ballast. Rigid cable, cross-section 0.50 mm², covered with PVC-HT, resistant to 90°C, in accordance with CEI 20-20 standards. 2P+T terminal block with fuse holder, maximum permitted conductor cross-section 2.5 mm².
EQUIPMENT: 3.15A. 1/2" gas diameter nylon fv cable gland. Eco-friendly polyurethane foam gasket. fv. Provision for tightening with steel screws.
REGULATIONS: Produced in compliance with current EN 60598-1 CEI 34-21 standards, IP66IK08 protection rating according to EN 60529. Can be installed on normally flammable surfaces. Obtained European ENEC conformity certification. Resistant to the glow wire test up to 850°C.


The Hydro series polycarbonate WATERTIGHT FRAMEWORKS have an IP66IK08 watertightness rating when installed in environments with temperatures no higher than 45°C. Direct exposure to sunlight easily causes temperatures to exceed 45°C, compromising the degree of protection. However, it is recommended to use them appropriately without altering their mechanical and protective qualities (IP66IK08) and not to install them on surfaces subject to strong vibrations, exposed to atmospheric agents, outdoors on ropes or poles, on walls, under metal grates or in any case exposed directly to sunlight. Otherwise, use steel watertight frames.
