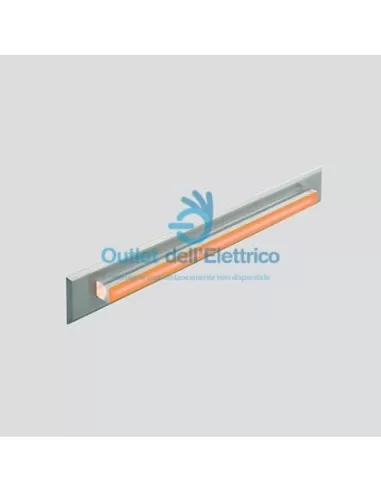

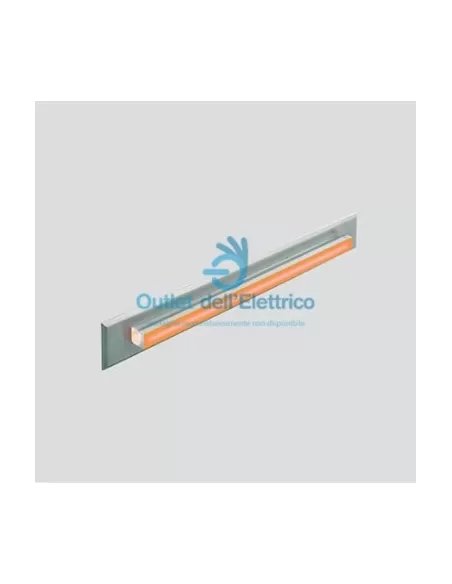

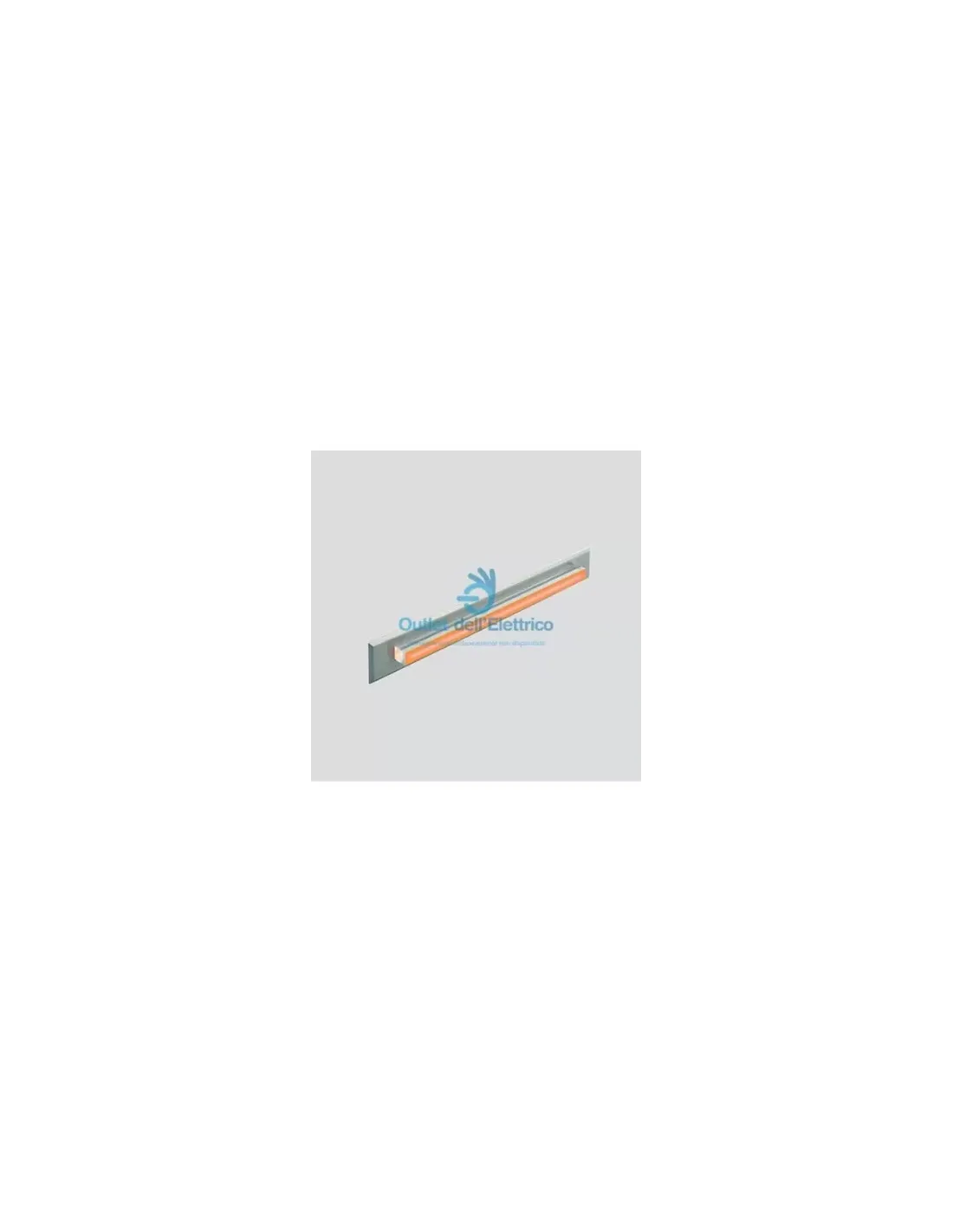

Simes S.4522.19 Ruler 370 spo+led bf 2,2w 230v

S.4522.19

PROJECTING DIFFUSER RULER

-TYPE

Wall installation appearance.

Degree of protection IP 65

-MATERIAL CHARACTERISTICS

Polycarbonate structure.

Front in 3 mm thick AISI 316L stainless steel.

Zinc alloy counter ring.

Preparation of the burr for preparation during the painting phase.

A4 stainless steel screws have a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra resistant double painting done in 3 steps:

1) BONDERITE treatment with chemical protection of materials

Fluorozirconic deprived of metal content of ceramic nanoparticles he that

create a cohesive, inorganic, high-density layer.

2) PREPOLYMERIZED cycle with application from the bottom

possible with reliability features of all devices and

Increase the resistance to the possible resistance due to the pressure of the zinc.

3) POLYMERIZATION cycle with application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt temperature test of 1500h.

Mechanical resistance of glass IK 09

-LIGHTING PERFORMANCE

Diffused in methacrylate.

Very bright, with the lamp in the correct position.

Return --

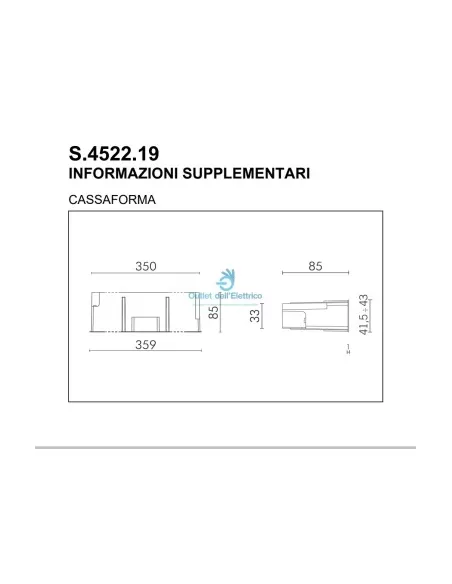

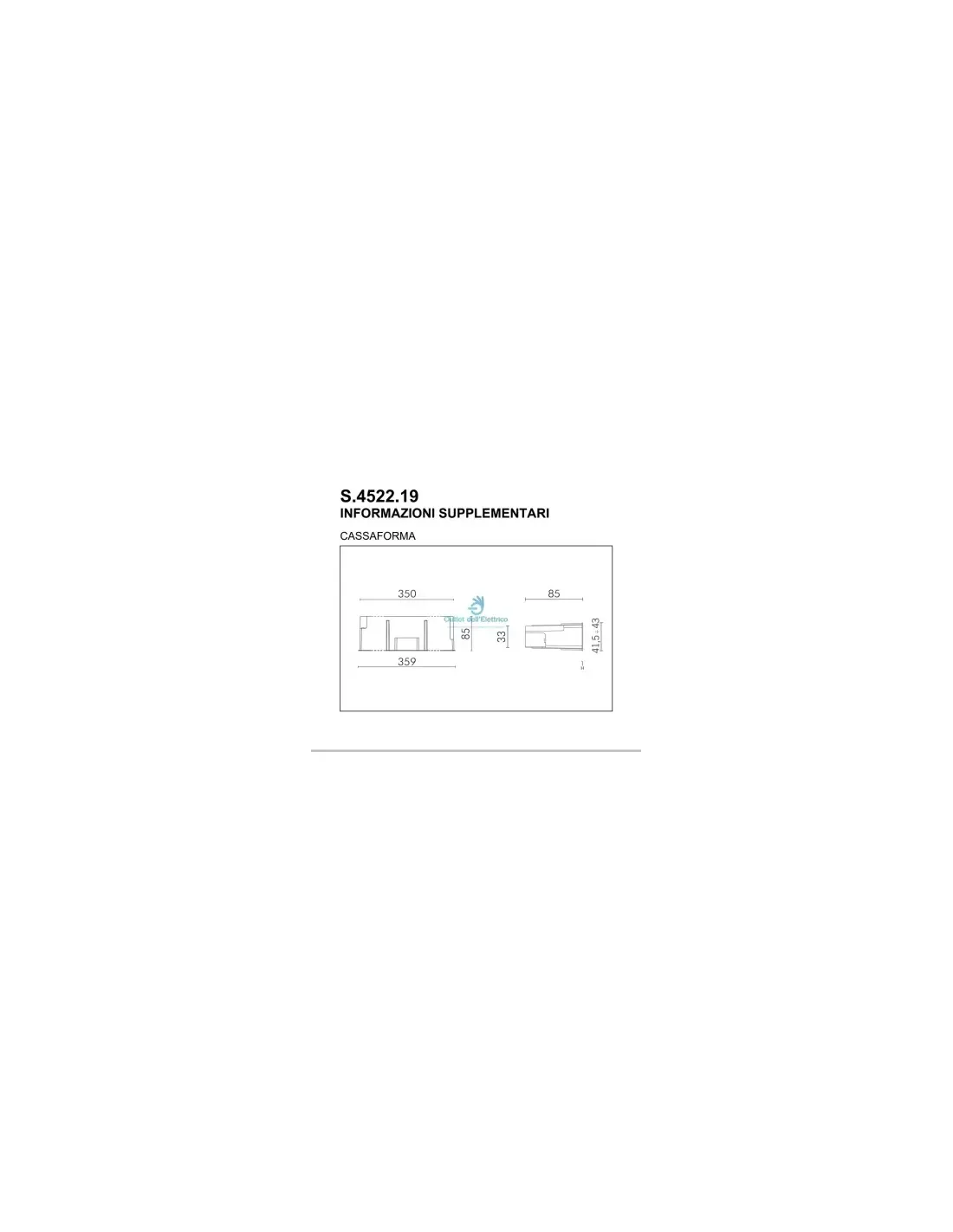

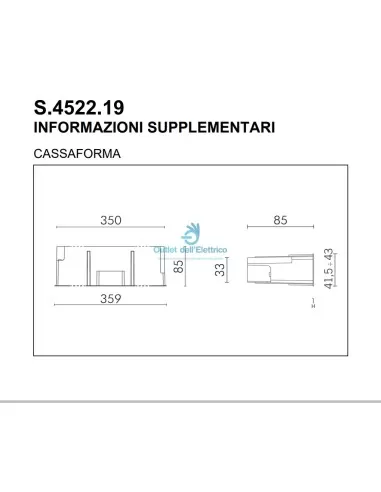

-INSTALLATION AND HANDLING

The wall mounting boxes are supplied with the appliances and

they need to be installed on a wall wire.

The front ring is made of AISI 316L stainless steel with a

one-click system, without the use of screws, allowing for a design

eye-catching with great clean lines.

It does not appear and is also equipped with clips for installation in walls in

plasterboard and false ceilings. The life of the wall must be

between 5 and 30 mm: SHORT RULER hole 226 x 36 mm,

LONG RULER hole 356 x 36 mm.

-WIRING

It appears with cables, connectors and thermal strings.

Insulation class: CLASS II

Available color: STAINLESS STEEL (code 19)

Weight: 0.89 kg

Glow wire test: 650°C

It appears to provide the complete LED circuit. with emission class

1 (CEI EN 60825-1:2003-02)
