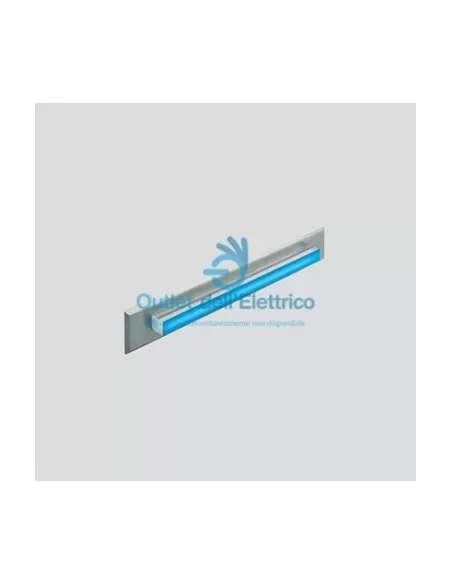

Simes S.4512.19 Righello 240 protruding diffuser + led bf 1,2w 230v

S.4512.19

PROJECTING DIFFUSER RULER

-TYPE

Wall-mounted device.

Degree of protection IP 65

-FEATURES OF THE MATERIALS

Polycarbonate structure.

Front plate in 3 mm thick AISI 316L stainless steel.

Zinc alloy counter ring.

Tumbling process to prepare for the painting phase.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Annealed silicone gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of material

metal-free fluozirconium containing ceramic nanoparticles that

they create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with salt spray test resistance of 1500h.

Mechanical resistance of glass IK 09

-LIGHTING PERFORMANCE

Methacrylate diffuser.

Light source, with fixed lamp position.

Yield --

-INSTALLATION AND MAINTENANCE

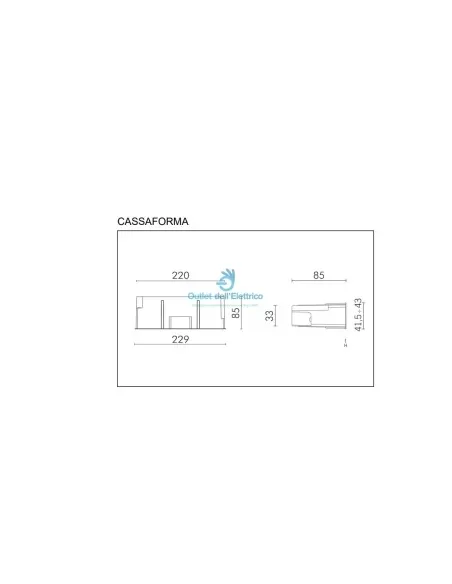

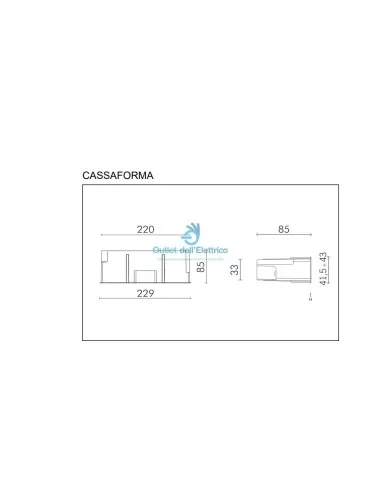

The wall mounting boxes are supplied with the appliances and

they must be installed flush with the wall.

The fixing of the front ring in AISI 316L stainless steel takes place with a

snap-on system, without the use of screws, allowing for a design

captivating with great clean lines.

The devices are also supplied with clips for installation in walls in

plasterboard and false ceilings. The thickness of the wall must be

between 5 and 30 mm: SHORT RULER hole 226 x 36 mm,

LONG RULER hole 356 x 36 mm.

-WIRING

Devices supplied with cable, connector and heat-shrink tubing.

Insulation class: CLASS II

Available colors: STAINLESS STEEL (code 19)

Weight: 0.62 kg

Glow Wire Test: 650°C

Fixtures supplied complete with LED circuit with emission class

1 (CEI EN 60825-1:2003-02)
