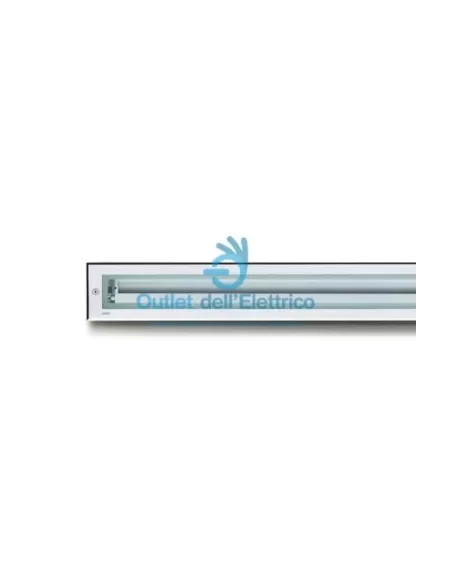

Simes S.5933.19 Linear walkover+t5 21w asymmetric stainless steel

S.5933.19

LINEAR

-TYPE

Walkable device for ground installation.

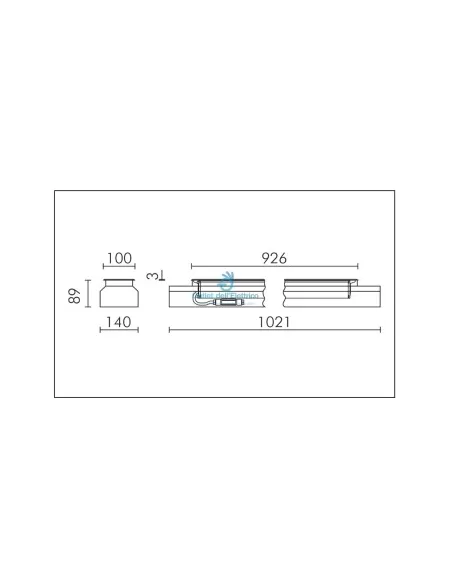

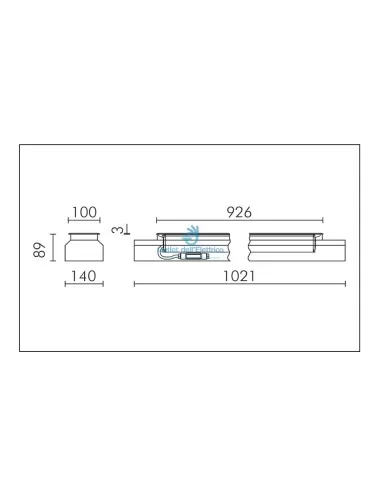

Depth 89mm.

Degree of protection IP 67

-FEATURES OF THE MATERIALS

Body in die-cast primary aluminium "Copper Free" EN AB-44100

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

3 mm thick front finishing ring made of AISI stainless steel

316L with a high molybdenum content of 2.5-3%.

Screws in A4 stainless steel with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high-density layer.

2) PRE-POLYMERIZATION cycle with application of the primer

epoxy with characteristics of overpaintable on the appliance and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with salt spray test resistance of 1500h.

Mechanical resistance of glass IK 09

Maximum load 500 kg

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure anodized and polished aluminum.

10 mm thick tempered transparent protective glass.

Light source, with fixed lamp position.

Yield 27%

Compact electronic power supply for longer life and stability of the

lamp and reduced energy consumption.

-LOW SURFACE TEMPERATURE

Glass temperature 58°C (Ta 25°C)

Electronic power supply with lower heat development.

Optimizing the layout of components within the product allows this

excellent heat dissipation keeping the internal temperature within

admissible limits.

-FORMWORK FOR INSTALLATION AND MAINTENANCE

AISI 316L stainless steel formwork prepared for cable entry

which allows you to:

1) perform easy wiring;

2) accommodate the IP68 quick connector;

3) Easily perform appliance removal for maintenance.

-WIRING

Piece of H07RN-F type power cable closed by the

PG 13.5 cable gland (Ø 6÷12 mm), sealed with epoxy resin

two-component and internally wired with cables covered by sheaths

silicone glass protectors.

The M20 quick connector (Ø 5÷14 mm) IP68 is supplied as standard for

single through connection, to be housed inside the formwork.

Change side lamp without removing the diffuser.

Insulation class: CLASS I, CLASS II (on request)

Available colors: STAINLESS STEEL (code 19)

Weight: 9.24 kg

Glow wire test: 750°C

Appliances supplied complete with lamp.

QUICK CONNECTOR INCLUDED
