Iguzzini 3 mb35 701 0 mb35 front light picc with 1 led warm white flood c

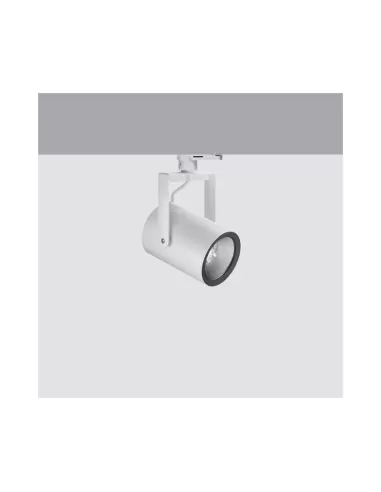

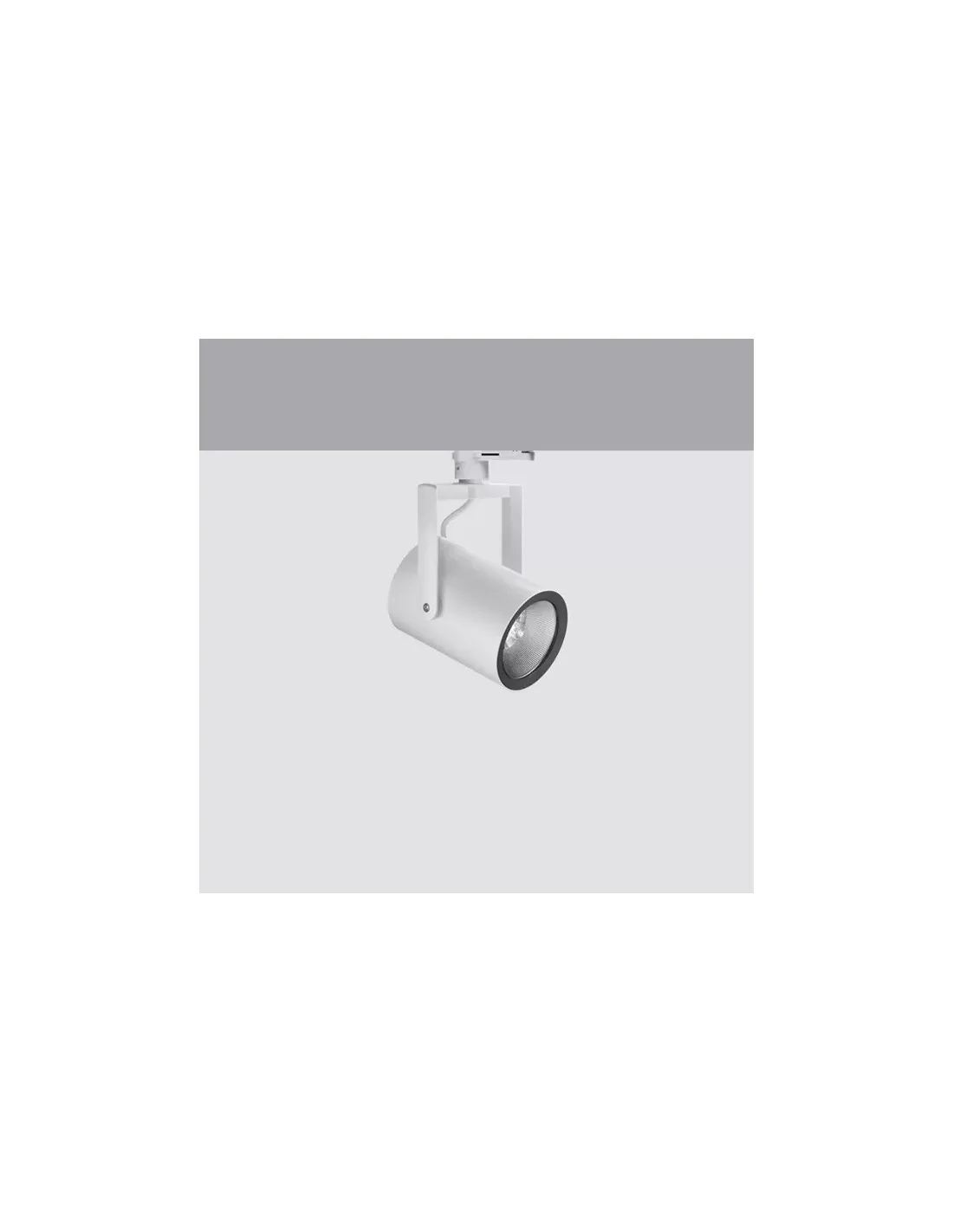

Technical description Adjustable indoor floodlight with adapter for installation on mains voltage track. Luminaire made of die-cast aluminium. The double adjustability of the projector allows a 360° rotation around the vertical axis and a 90° inclination on the horizontal plane. Mechanical aiming blocks both for rotation around the vertical axis and with respect to the horizontal plane. built-in electronic power supply.

The fixture is complete with a flood optic LED unit in warm white color tones.

Installation on electrified track Color White (01)

Three-phase track assembly

Wiring of electronic components contained inside the device

Technical data

lm system: 1678

W-System: 15.5

lm source: 2100

Source W: 14

Luminous efficiency (lm/W,

system data):

108.4

lm in emergent mode: -

Total flow emitted at 90°

or higher [Lm] :

0

Light Output Ratio ( LOR )

[%] :

80

Opening angle [°] : 42°

Color rendering index: 80

Color temperature [K] : 3000

MacAdam Pass: 2

LED 1 life: > 50,000h - L80 - B10 (Ta 25°C)

Loss of power

[W] :

1.5

Lamp code: LED

Number of lamps per

optical compartment:

1

ZVEI code: LED

Number of optical compartments: 1
